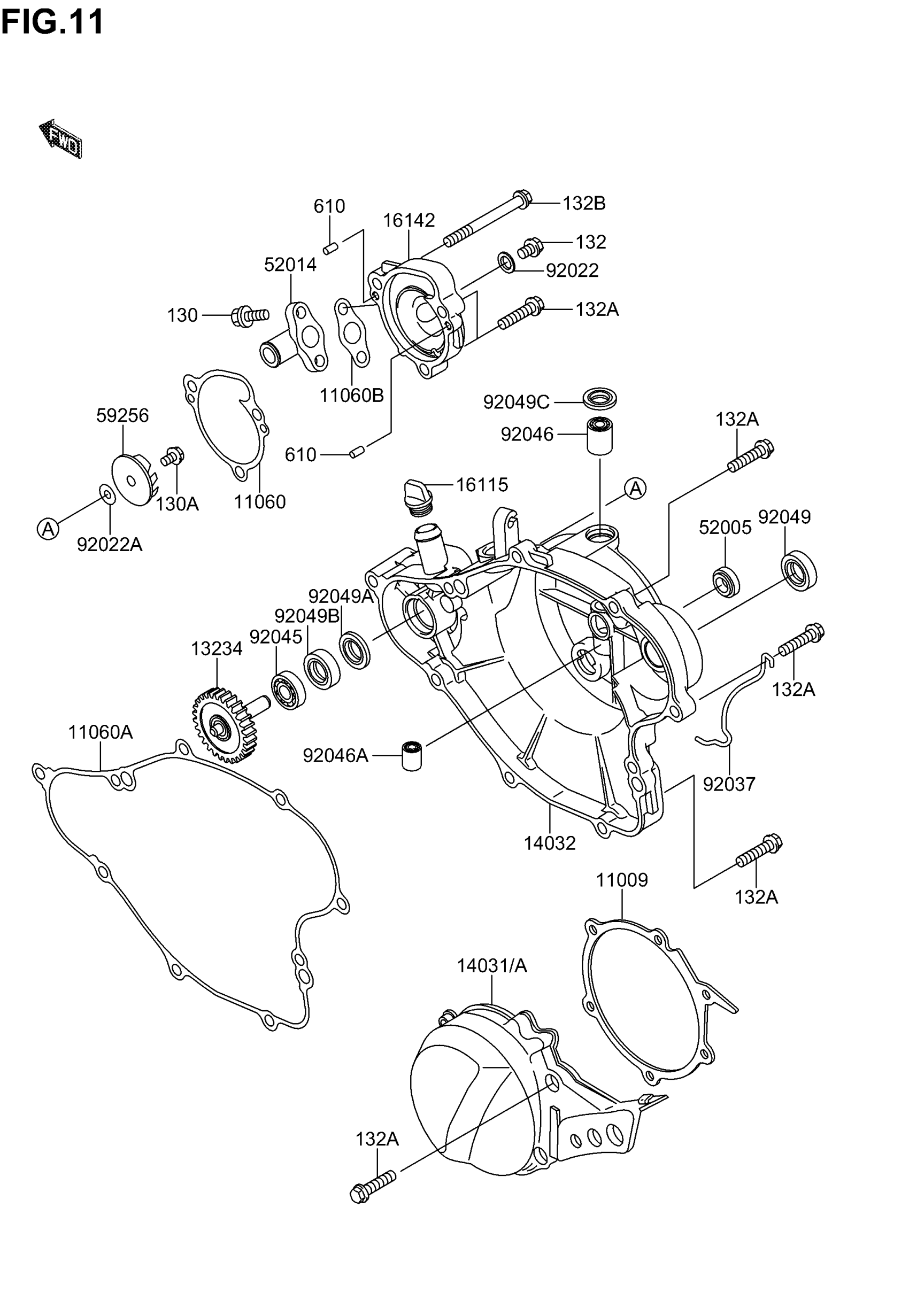

Suzuki RM65 (2005) ENGINE COVER Diagram

GASKET,GENERATOR COVER

K1100-91974

$12.65

GASKET,PUMP COVER

K1106-01924

$5.92

GASKET,CLUTCH C This part replaces K1106-01925.

K1106-10121

$11.53

GASKET,ELBOW

K1106-01927

Unavailable

SHAFT-COMP,PUMP

K1323-41110

$62.27

COVER-GENERATOR | K5

K1403-10033

$47.78

COVER-GENERATOR | K3, K4 This part replaces K1403-11215.

K1403-10033

$47.78

COVER-CLUTCH

K1403-21501

Unavailable

CAP-OIL FILLER

KK161-15018

$9.02

COVER-PUMP

K1614-21158

Unavailable

GAUGE,OIL LEVEL This part replaces K5200-51055.

K5200-50019

$12.07

ELBOW

K5201-41094

Unavailable

IMPELLER

K5925-61064

Unavailable

WASHER,6.1X12X1

KK920-22077

Unavailable

WASHER,5.2X13X1

K9202-21380

$3.33

CLAMP,TUBE

K9203-71236

Unavailable

BEARING-BALL,608MC3

K9204-51305

Unavailable

BEARING-NEEDLE,HK1010

K9204-61160

Unavailable

BEARING-NEEDLE,6BTM109

K9204-61217

Unavailable

SEAL-OIL,SB16244

KK920-49002

$6.88

SEAL-OIL,MH8X18X3.5-A

K9204-91359

$8.25

SEAL-OIL,MHSD8X18X10J-1

K9204-91366

$15.08

SEAL-OIL,BG1408F0

K9204-91414

Unavailable

NO DESCRIPTION AVAILABLE This part replaces KK130-G0516.

K130B-A0516

Unavailable

BOLT-FLANGED This part replaces KK130-P0510.

K130C-A0510

Unavailable

BOLT-FLANGED-SM This part replaces KK132-G0608.

K132B-A0608

$1.78

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

$1.97

BOLT-FLANGED-SM This part replaces KK132-G0660.

K132B-A0660

Unavailable

ROLLER,4X8

KK610-A0408

$1.49
