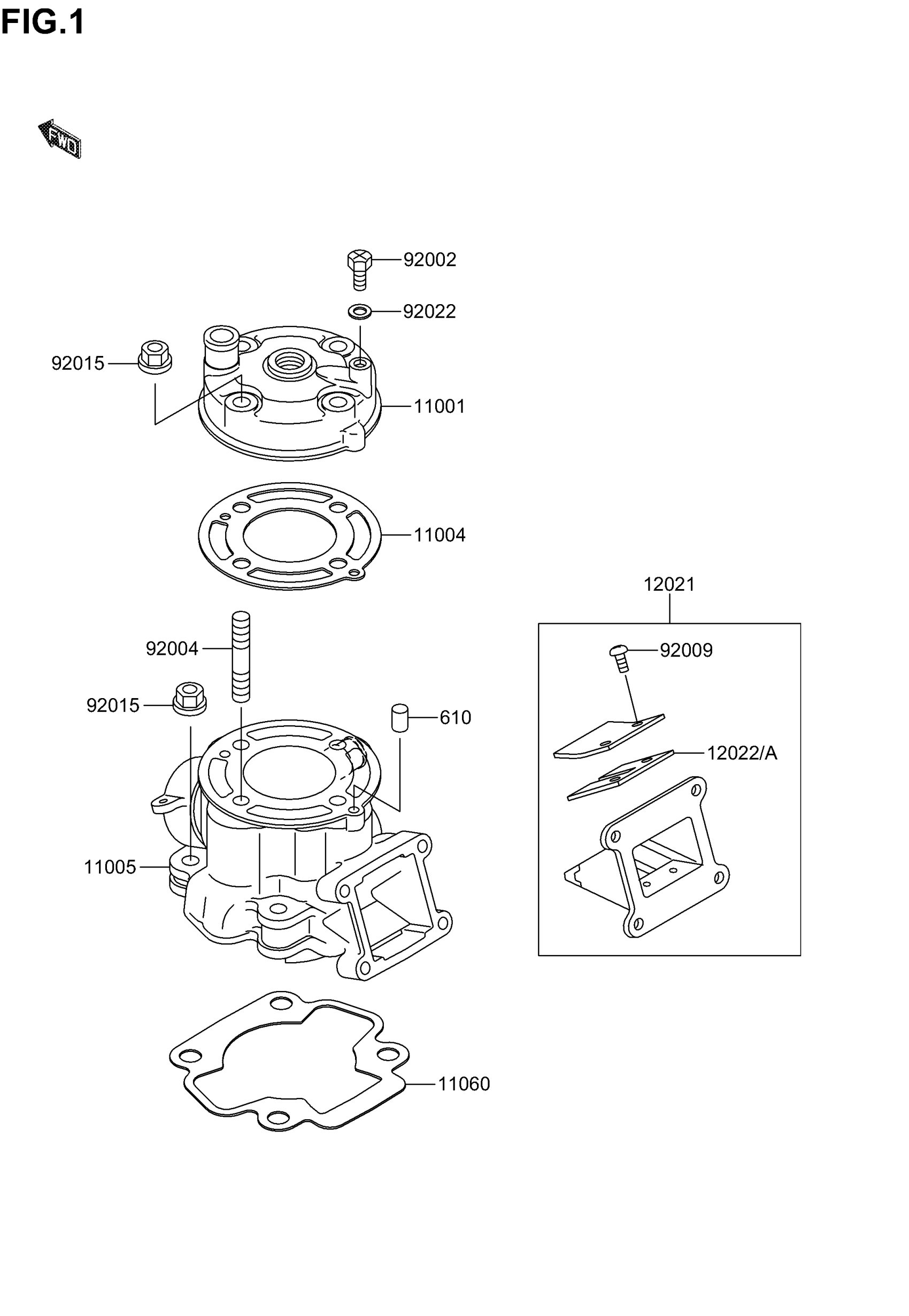

Suzuki RM65 (2005) CYLINDER HEAD/CYLINDER Diagram

Description

Price

11001

HEAD-CYLINDER

K1100-11516

Unavailable

11004

GASKET-HEAD

K1100-41346

$27.97

11005

CYLINDER-ENGINE

K1100-51973

$696.77

11060

GASKET,CYLINDER BASE,T=0.37

K1106-01921

$10.18

12021

VALVE-ASSY-REED

K1202-11015

Unavailable

12022

VALVE-REED,T=0.42

K1202-21013

Unavailable

12022A

VALVE-REED,T=0.37,CARBON | OPTION

K1202-21087

Unavailable

92002

BOLT,6X10

K9200-21222

Unavailable

92004

STUD,8X30

K9200-41069

Unavailable

92009

SCREW,REED VALVE

K9200-91014

Unavailable

92015

NUT,8MM

K9201-51143

Unavailable

92022

WASHER,6.2X11X1

KK920-22304

$2.76

610

ROLLER,4X8

KK610-A0408

$1.49
