CARBURETOR

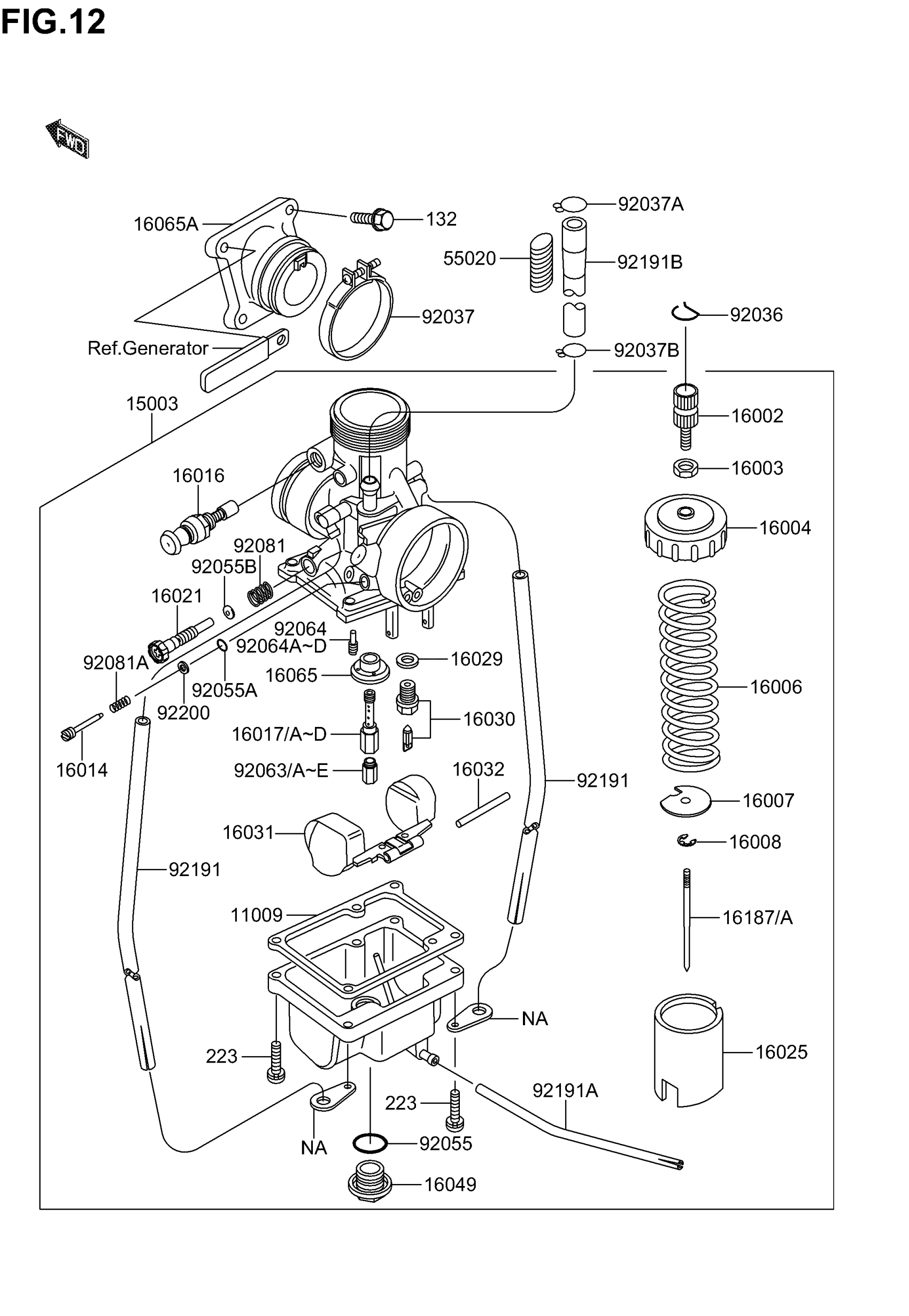

Suzuki RM65 (2005) CARBURETOR Diagram
#
11009
GASKET,FLOAT CHAMBER
K1100-91147
Unavailable
15003
CARBURETOR-ASSY
K1500-31669
Unavailable
16002
ADJUSTER-CABLE
KK160-02011
Unavailable
16003
NUT,ADJUST LOCK
KK160-03006
Unavailable
16004
CAP-CHAMBER
KK160-04025
Unavailable
16006
SPRING,THROTTLE VALVE
KK160-06023
Unavailable
16007
SEAT-SPRING,THROTTLE VALVE
KK160-07023
Unavailable
16014
SCREW-PILOT AIR
K1601-41116
Unavailable
16016
PLUNGER,STARTER This part replaces K1601-61052.
K1601-60008
Unavailable
16017
JET-NEEDLE,N-8 | OPTION
K1601-71412
Unavailable
16017A
JET-NEEDLE,O-0
K1601-71413
Unavailable
16017B
JET-NEEDLE,O-2 | OPTION
K1601-71414
Unavailable
16017C
JET-NEEDLE,O-4 | OPTION
K1601-71415
Unavailable
16017D
JET-NEEDLE,N-6 | OPTION
K1601-71418
Unavailable
16021
SCREW-THROTTLE STOP
K1602-11224
Unavailable
16025
VALVE-THROTTLE,CA1.5
K1602-51040
Unavailable
16029
GASKET,FLOAT VALVE SEAT
KK160-29004
Unavailable
16030
VALVE-FLOAT,#2.5
K1603-01095
Unavailable
16031
FLOAT
K1603-11005
Unavailable
16032
PIN,FLOAT
KK160-32008
Unavailable
16049
COVER-MAIN JET
K1604-91001
Unavailable
16065
HOLDER,JET NEEDLE
K1606-51020
Unavailable
16187
NEEDLE-JET,5GSP68
K1618-71226
Unavailable
16187A
NEEDLE-JET,5GSP69 | OPTION
K1618-71227
Unavailable
55020
GUARD,FUEL TUBE
K5502-01787
Unavailable
92037
CLAMP
K9203-71305
Unavailable
92037B
CLAMP
K9203-71712
Unavailable
92055
RING-O,MAIN JET COVER
K9205-51061
Unavailable
92055A
RING-O,AIR SCREW
K9205-51658
Unavailable
92055B
RING-O
K9205-52068
Unavailable
92063
JET-MAIN,#170 | OPTION
KK920-63019
Unavailable
92063A
JET-MAIN,#180 | OPTION
KK920-63020
Unavailable
92063B
JET-MAIN,#190
KK920-63021
Unavailable
92063C
JET-MAIN,#200 | OPTION
KK920-63022
Unavailable
92063D
JET-MAIN,#210 | OPTION
KK920-63023
Unavailable
92063E
JET-MAIN,#230 | OPTION
KK920-63025
Unavailable
92064
JET-PILOT,#30 | OPTION
KK920-64022
Unavailable
92064A
JET-PILOT,#22.5 | OPTION
KK920-64040
Unavailable
92064B
JET-PILOT,#A25
K9206-41020
Unavailable
92064C
JET-PILOT,#27.5 | OPTION
K9206-41033
Unavailable
92064D
JET-PILOT,#20 | OPTION
K9206-41043
Unavailable
92081
SPRING,THROTTLE ADJUST
K9208-11152
Unavailable
92081A
SPRING,STOP SCREW
K9208-11153
Unavailable
92191A
TUBE,3X5X220
K9219-11496
Unavailable
92191B
TUBE
K9219-11611
Unavailable
92200
WASHER,PILOT AIR SCREW
K9220-01564
Unavailable
132
BOLT-FLANGED-SM This part replaces KK132-G0620.
K132B-A0620
Unavailable
223
NO DESCRIPTION AVAILABLE This part replaces KK223-D0416.
K223A-A0416
Unavailable
