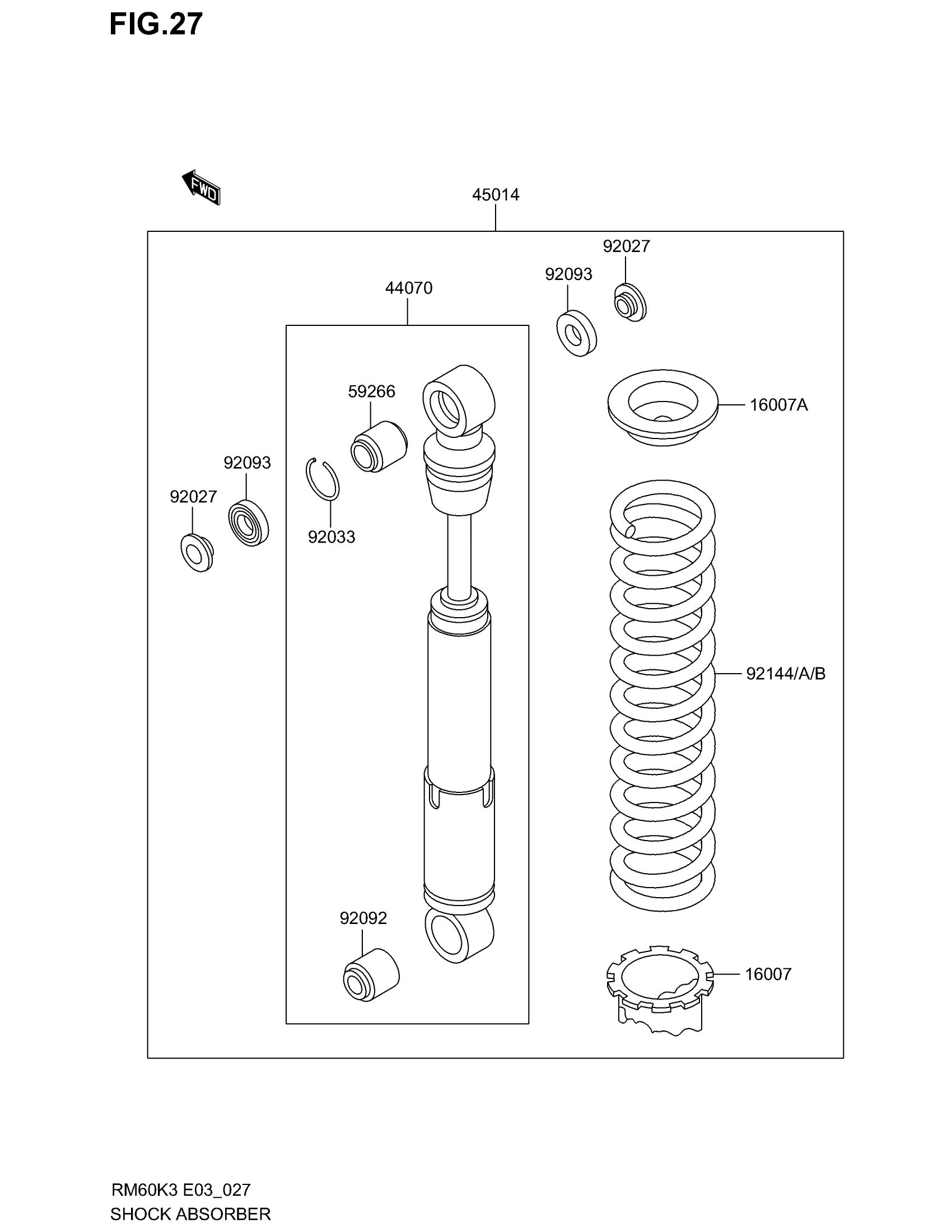

Suzuki RM60 (2003) SHOCK ABSORBER Diagram

Description

Price

16007

SEAT-SPRING,REAR SHOCK,LWR

K1600-71055

Unavailable

16007A

SEAT-SPRING,REAR SHOCK,UPP

K1600-71121

Unavailable

44070

DAMPER-ASSY,SHOCKABSORBER

K4407-01980

Unavailable

45014

SHOCKABSORBER,S.RED

KK450-14181-5VM

Unavailable

59266

JOINT-BALL

K5926-61053

Unavailable

92027

COLLAR

K9202-71862

Unavailable

92033

RING-SNAP

K9203-31090

Unavailable

92092

BUSHING-RUBBER,SHOCKABSORBER

K9209-21016

Unavailable

92093

SEAL

K9209-31183

Unavailable

92144

SPRING,SHOCKABSORBER,K=3.0,RED | OPTION

KK921-44194-2VM

Unavailable

92144A

SPRING,SHOCKABSORBER,K=3.3,RED

KK921-44194-3VM

Unavailable

92144B

SPRING,SHOCKABSORBER,K=3.7,RED | OPTION

KK921-44194-4VM

Unavailable
