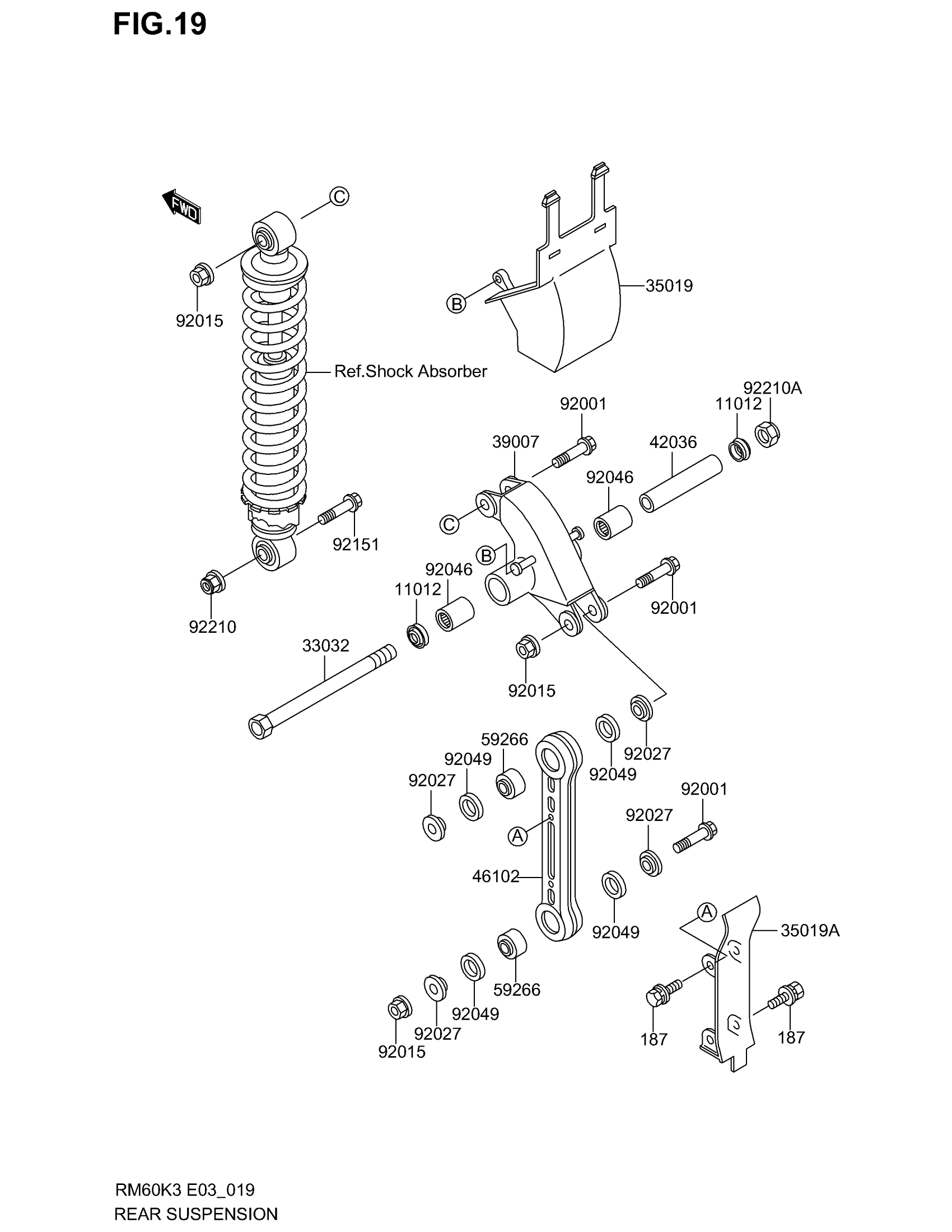

Suzuki RM60 (2003) REAR SUSPENSION Diagram

#

Description

Price

11012

CAP

K1101-21263

Unavailable

33032

SHAFT-SUSPENSION ARM,L=168

K3303-21032

Unavailable

35019

FLAP,SUSPENSION ARM

K3501-91046

Unavailable

35019A

FLAP,SUSPENSION ROD

K3501-91137

Unavailable

39007

ARM-SUSP,UNI-TRAK

K3900-71062

Unavailable

42036

SLEEVE,SUSPENSION ARM,L=86

K4203-61068

Unavailable

46102

ROD,SUSPENSION

K4610-21125

Unavailable

59266

JOINT-BALL

K5926-61011

Unavailable

92001

BOLT,FLANGED,10X42

K9200-11711

Unavailable

92015

NUT,FLANGED,10MM

K9201-51415

Unavailable

92027

COLLAR,SUSPENSION ROD

K9202-71496

Unavailable

92046

BEARING-NEEDLE

K9204-61046

Unavailable

92049

SEAL-OIL

K9204-91098

Unavailable

92151

BOLT,FLANGED,10X41

K9215-11831

Unavailable

92210

NUT,LOCK,FLANGED,10MM

K9221-01080

$7.57

92210A

NUT,LOCK,12MM

K9221-01249

Unavailable

187

BOLT-UPSET-WSP

KK187-B0614

Unavailable
