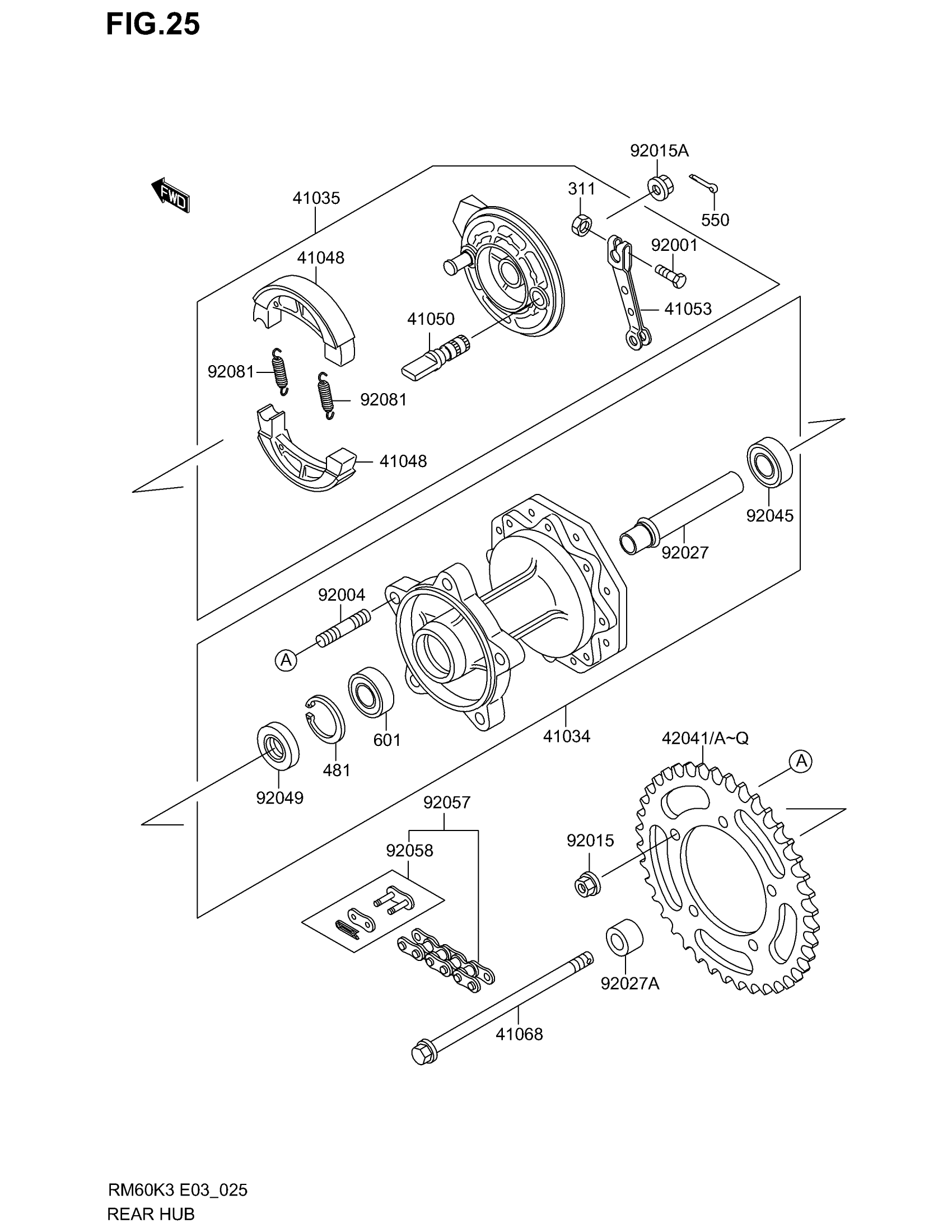

Suzuki RM60 (2003) REAR HUB Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

K4103-41169

Unavailable

41035

PANEL-ASSY-BRAKE,RR

K4103-51286

Unavailable

41048

SHOE-BRAKE

K4104-81083

$23.75

41050

CAM-BRAKE

K4105-01031

Unavailable

41053

LEVER-BRAKE CAM,RR

K4105-31058

Unavailable

41068

AXLE,RR This part replaces K4106-81306.

K4106-80016

$36.30

42041

SPROCKET-HUB,44T

K4204-11114

Unavailable

42041A

SPROCKET-HUB,43T | OPTION

K4204-11116

Unavailable

42041B

SPROCKET-HUB,45T | OPTION

K4204-11117

Unavailable

42041C

SPROCKET-HUB,49T | OPTION

K4204-11121

Unavailable

42041D

SPROCKET-HUB,48T | OPTION

K4204-11122

Unavailable

42041E

SPROCKET-HUB,50T | OPTION

K4204-11123

Unavailable

42041F

SPROCKET-HUB,47T | OPTION

K4204-11129

Unavailable

42041G

SPROCKET-HUB,43T,AL | OPTION

K4204-11167

Unavailable

42041H

SPROCKET-HUB,44T,AL | OPTION

K4204-11168

Unavailable

42041I

SPROCKET-HUB,48T,AL | OPTION

K4204-11169

Unavailable

42041J

SPROCKET-HUB,49T,AL | OPTION

K4204-11170

Unavailable

42041K

SPROCKET-HUB,50T,AL | OPTION

K4204-11171

Unavailable

42041L

SPROCKET-HUB,45T,AL | OPTION

K4204-11175

Unavailable

42041M

SPROCKET-HUB,46T,AL | OPTION

K4204-11176

Unavailable

42041N

SPROCKET-HUB,47T,AL | OPTION

K4204-11177

Unavailable

42041O

SPROCKET-HUB,46T | OPTION

K4204-11178

Unavailable

42041P

SPROCKET-HUB,51T | OPTION

K4204-11181

Unavailable

42041Q

SPROCKET-HUB,51T,AL | OPTION

K4204-11182

Unavailable

92001

BOLT,5X25

K9200-11695

Unavailable

92004

STUD,8X16

K9200-41183

Unavailable

92015

NUT,8MM

K9201-51143

Unavailable

92015A

NUT,FLANGED,12MM

K9201-51433

Unavailable

92027

COLLAR,REAR DRUM,L=115

K9202-71471

Unavailable

92027A

COLLAR,REAR AXLE,L=14.5

K9202-71473

Unavailable

92045

BEARING-BALL,TMB201LLUC3/2A

K9204-51062

Unavailable

92049

SEAL-OIL,DD20377

K9204-91096

Unavailable

92057

CHAIN,DRIVE,DID420MBK1X104L

K9205-71436

Unavailable

92058

JOINT-CHAIN,DRIVE

K9205-81073

Unavailable

92081

SPRING,BRAKE SHOE

K9208-11766

$6.35

311

NUT-HEX This part replaces KK311-H0500.

K311B-A0500

Unavailable

481

CIRCLIP-TYPE-C,37MM

KK481-J3700

Unavailable

550

PIN-COTTER,2.5X20

KK550-D2520

Unavailable

601

BEARING-BALL,#6201UUC3

KKK60-1B630-1UU

Unavailable
