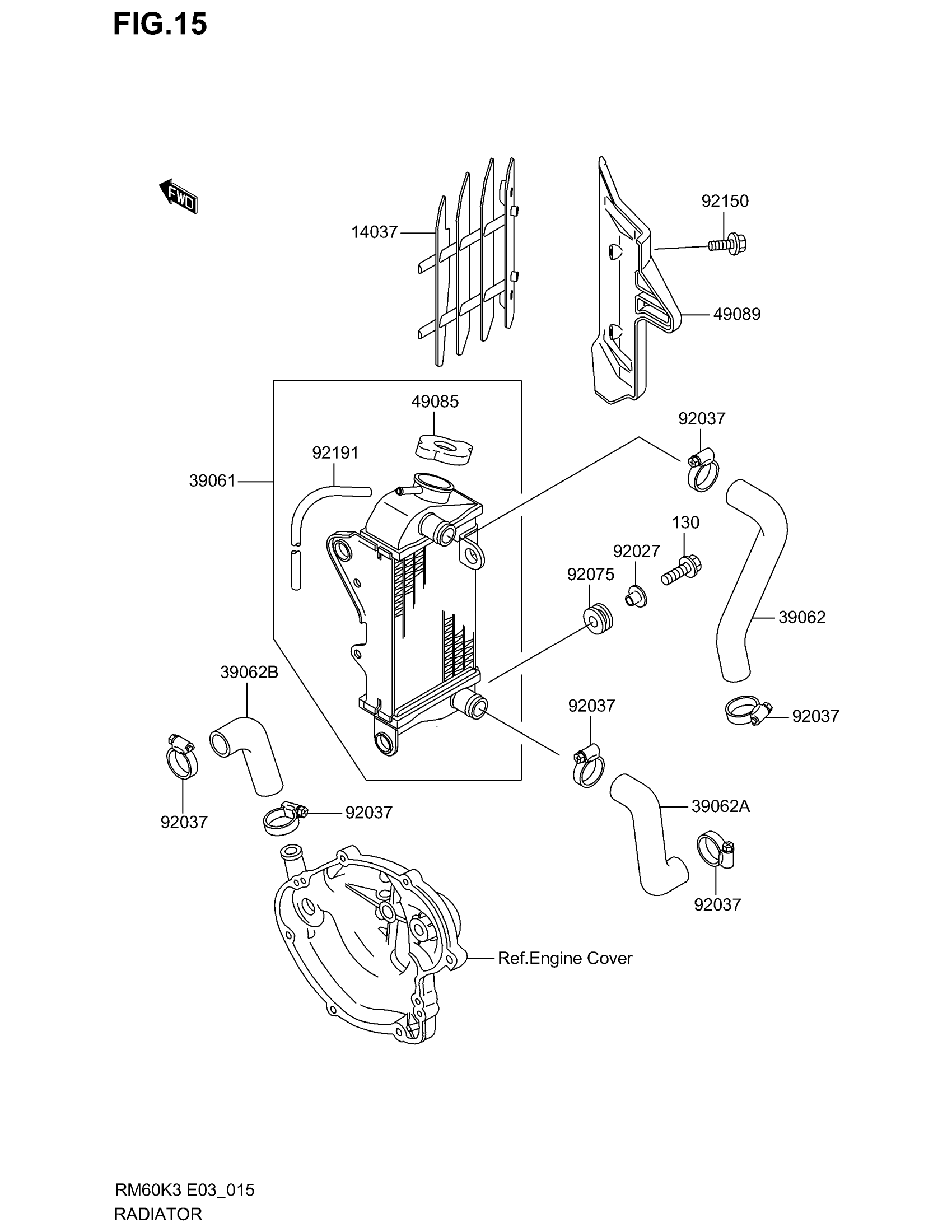

Suzuki RM60 (2003) RADIATOR Diagram

#

Description

Price

14037

SCREEN,RH,WHITE This part replaces KK140-37127-4RZ.

KK140-37004-7RZ

Unavailable

39061

RADIATOR-ASSY

K3906-11238

Unavailable

39062

HOSE-COOLING,RADIATOR,UPP

K3906-21076

Unavailable

39062A

HOSE-COOLING,RADIATOR,LWR

K3906-21077

Unavailable

39062B

HOSE-COOLING

K3906-21078

Unavailable

49085

CAP-ASSY-PRESSURE,P1.1

K4908-51070

Unavailable

49089

SHROUD-ENGINE,RH,C.YELLOW

K4908-91056-267

Unavailable

92027

COLLAR,L=9.6

K9202-71045

Unavailable

92037

CLAMP,COOLING HOSE

K9203-71589

Unavailable

92075

DAMPER

K9207-51185

Unavailable

92150

BOLT,FLANGED,6X16

K9215-01506

$3.29

92191

TUBE,6X9X700

K9219-11211

Unavailable

130

BOLT-FLANGED,6X16

KK130-G0616

Unavailable
