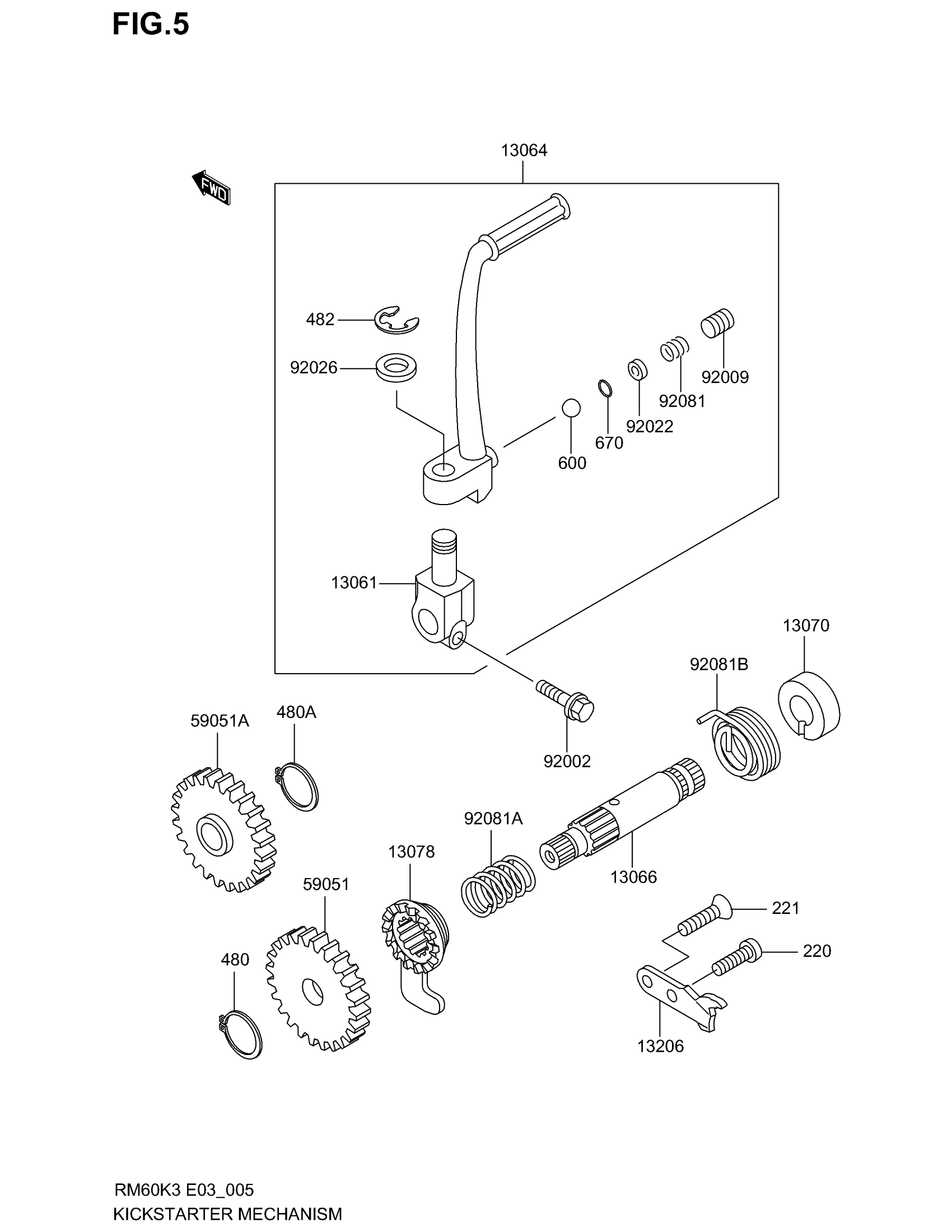

Suzuki RM60 (2003) KICKSTARTER MECHANISM Diagram

#

Description

Price

13061

BOSS,KICK LEVER

K1306-11301

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

K1306-41154

Unavailable

13066

SHAFT-KICK,STARTER

K1306-61093

Unavailable

13070

GUIDE,KICK SPRING

K1307-01034

Unavailable

13078

RATCHET

K1307-81004

Unavailable

13206

GUIDE-KICK

K1320-61065

Unavailable

59051

GEAR-SPUR,32T

K5905-11026

Unavailable

59051A

GEAR-SPUR,30T

K5905-11027

Unavailable

92002

BOLT,6X20

K9200-21237

Unavailable

92009

SCREW,SOCKET,8X8

K9200-91312

Unavailable

92022

WASHER

K9202-21481

Unavailable

92026

SPACER,12.2X20X1.6

K9202-61527

Unavailable

92081

SPRING,KICK PEDAL

KK920-81020

$3.47

92081A

SPRING,RATCHET

KK920-81122

Unavailable

92081B

SPRING,RETURN

K9208-11434

Unavailable

220

SCREW-PAN-CROS,6X16

KK220-B0616

Unavailable

221

SCREW-CSK-CROS, This part replaces KK221-B0618.

K221A-A0618

Unavailable

480

CIRCLIP-TYPE-C,12MM

KK480-J1200

Unavailable

480A

CIRCLIP-TYPE-C,15MM

KK480-J1500

Unavailable

482

CIRCLIP-TYPE-E,8MM

KK482-K8000

Unavailable

600

BALL-STEEL,1/4"

KK600-A0800

$1.49

670

O RING,4MM

KK670-B1504

Unavailable
