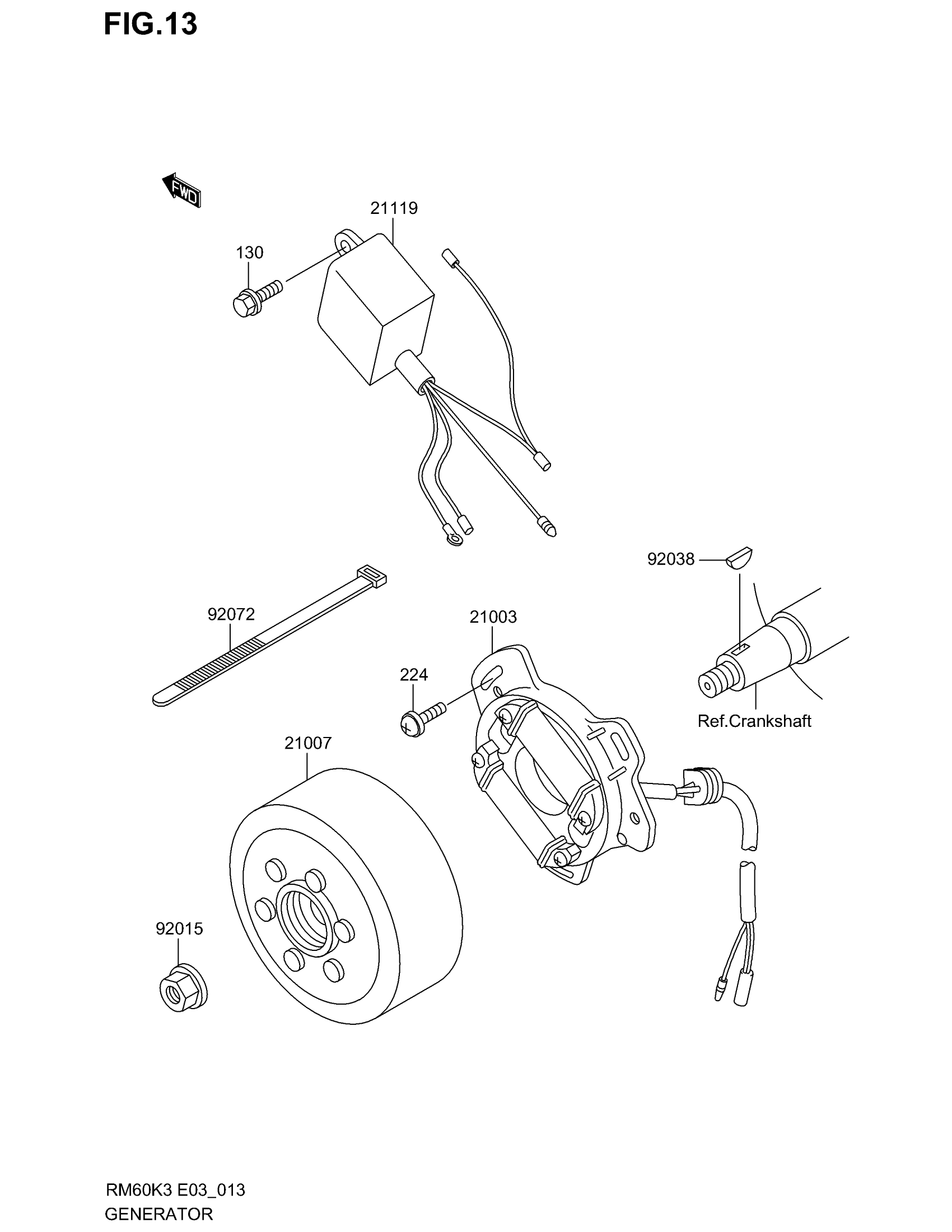

Suzuki RM60 (2003) GENERATOR Diagram

#

Description

Price

21003

STATOR

K2100-31323

Unavailable

21007

ROTOR

K2100-71316

Unavailable

21119

IGNITER

K2111-91485

Unavailable

92015

NUT,FLANGED,10MM

KK920-15077

Unavailable

92038

KEY,WOODRUFF

KK920-38001

Unavailable

92072

BAND,L=186

KK920-72056

Unavailable

130

BOLT-FLANGED,6X16

KK130-G0616

Unavailable

224

SCREW-PAN-WS-CR This part replaces KK224-B0514.

K224A-A0514

Unavailable
