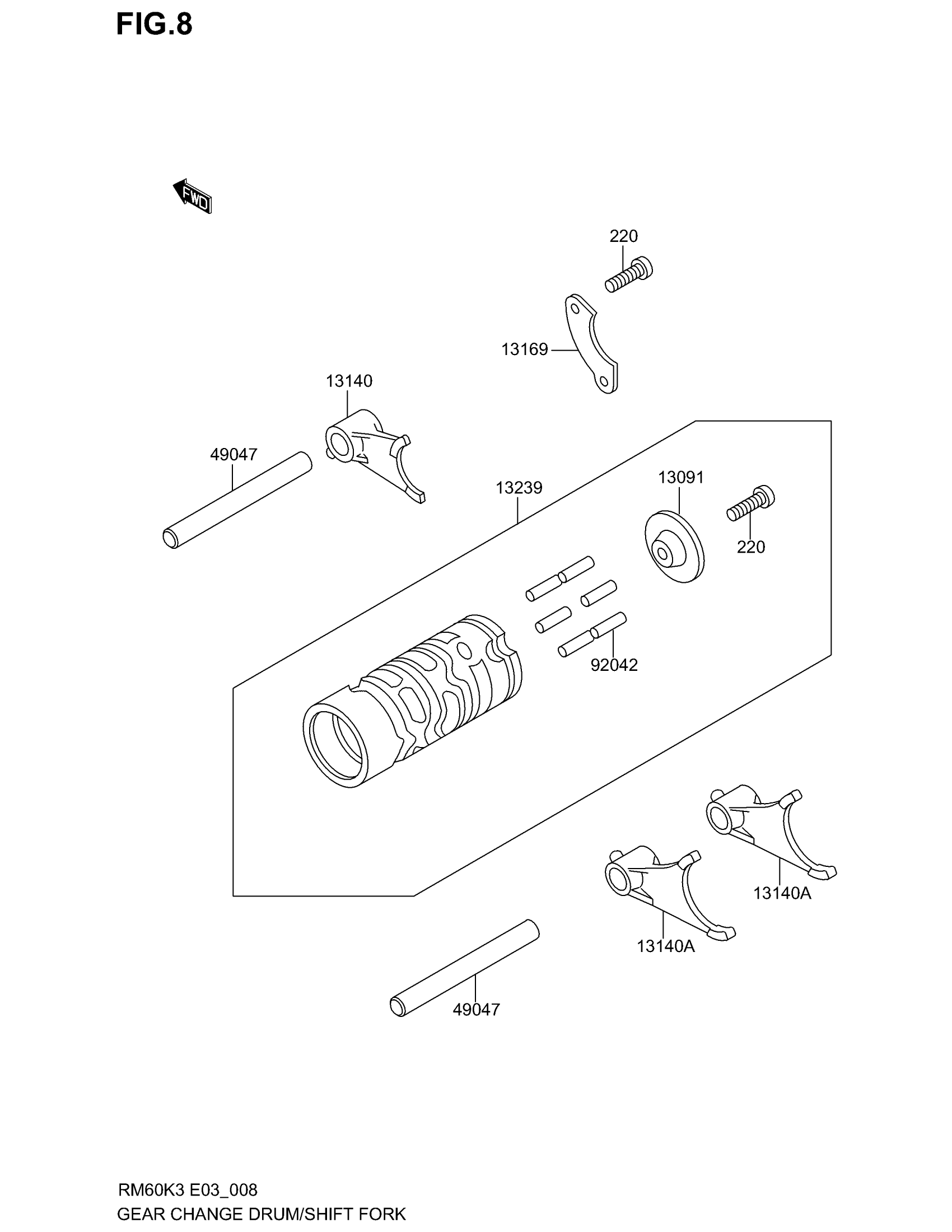

Suzuki RM60 (2003) GEAR CHANGE DRUM/SHIFT FORK Diagram

#

Description

Price

13091

HOLDER,CHANGE DRUM PIN

K1309-11098

Unavailable

13140

FORK-SHIFT,INPUT

K1314-01300

Unavailable

13140A

FORK-SHIFT,OUTPUT

K1314-01301

Unavailable

13169

PLATE,CHANGE DRUM POSITION

K1316-91309

Unavailable

13239

DRUM-ASSY-CHANGE

K1323-91065

Unavailable

49047

ROD-SHIFT,10X90

K4904-71009

Unavailable

92042

PIN,DOWEL,4X16.8

KK920-42029

Unavailable

220

SCREW-PAN-CROS, This part replaces KK220-B0614.

K220A-A0614

Unavailable
