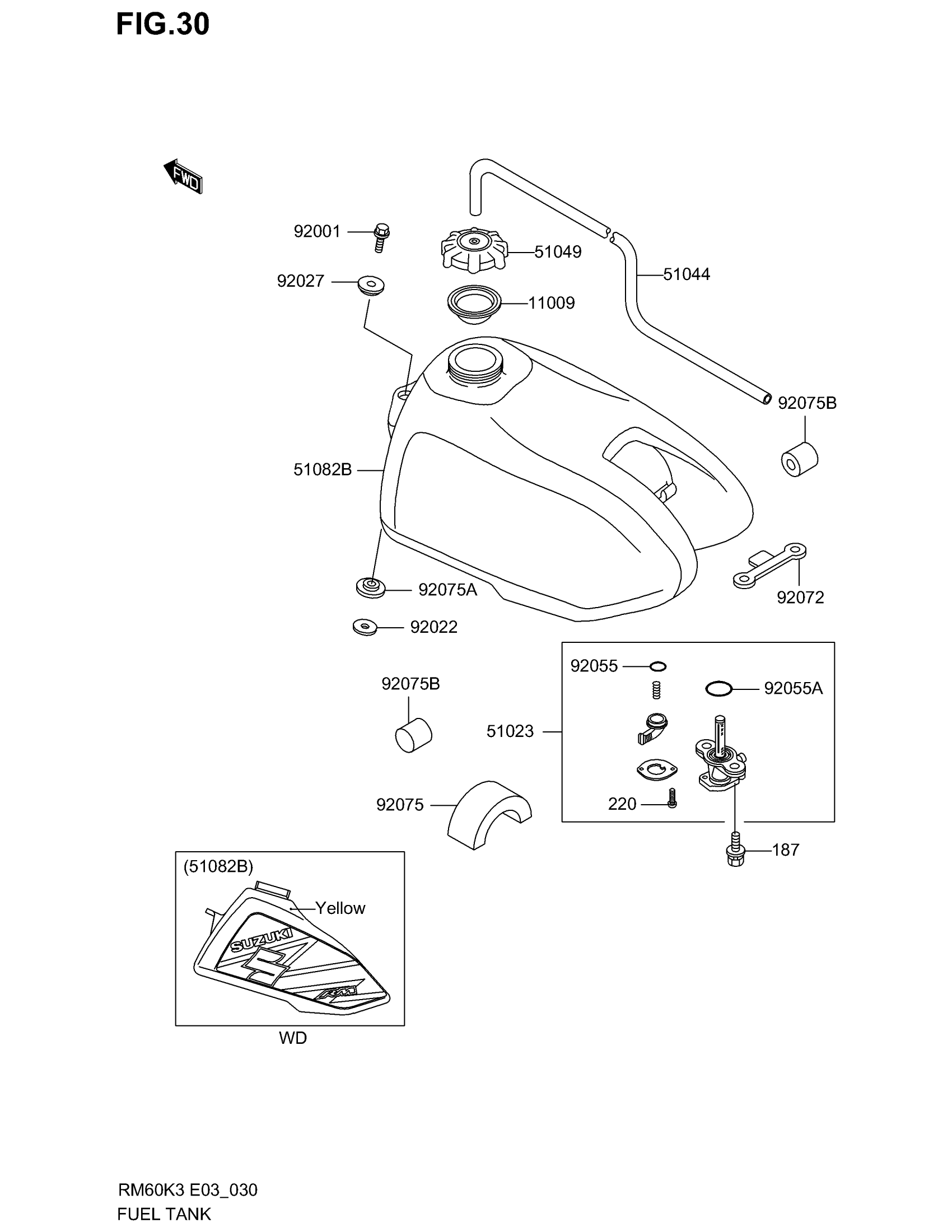

Suzuki RM60 (2003) FUEL TANK Diagram

#

Description

Price

11009

GASKET,FUEL TANK CAP

K1100-91452

$11.49

51023

TAP-ASSY,FUEL

K5102-31115

Unavailable

51044

TUBE-ASSY

K5104-41185

Unavailable

51049

CAP-TANK,FUEL

K5104-91006

Unavailable

51082

TANK-COMP-FUEL,C.YELLOW

K5108-25388-267

Unavailable

92001

BOLT,W/WASHER,6X12

K9200-11516

Unavailable

92022

WASHER,10X22X3.2

KK920-22176

Unavailable

92027

COLLAR,L=4.7

KK920-27122

Unavailable

92055

RING-O,FUEL TAP LEVER

K9205-51299

Unavailable

92055A

RING-O,FUEL TAP PACKING

K9205-51300

Unavailable

92072

BAND,FUEL TANK

K9207-21056

Unavailable

92075

DAMPER,FUEL TANK

K9207-51382

Unavailable

92075A

DAMPER,FUEL TANK,FR

K9207-51404

Unavailable

92075B

DAMPER

KK920-75243

Unavailable

187

BOLT-UPSET-WSP

KK187-B0616

Unavailable

220

SCREW-PAN-CROS,3X8

KK220-E0308

Unavailable
