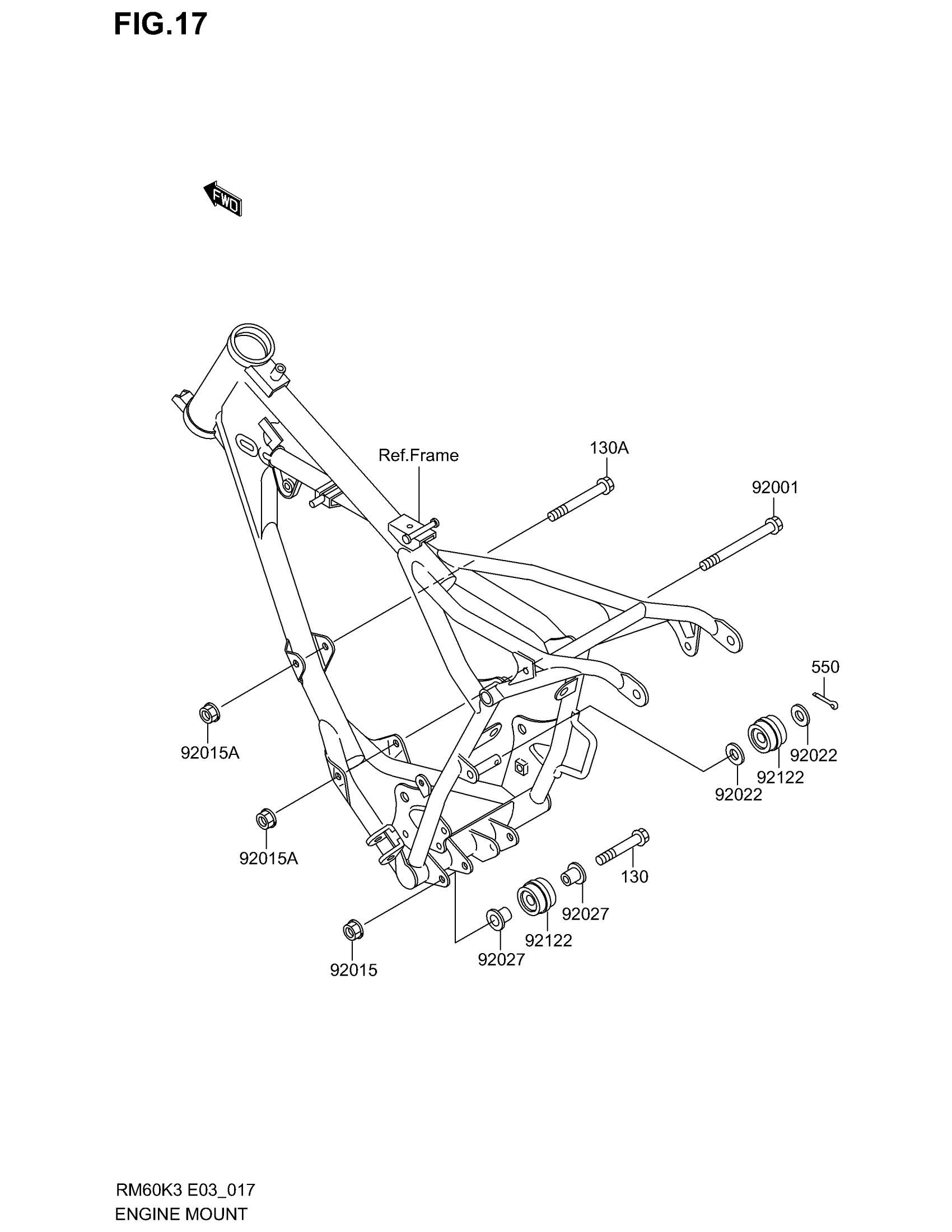

Suzuki RM60 (2003) ENGINE MOUNT Diagram

#

Description

Price

92001

BOLT,8X105

K9200-11367

Unavailable

92015

NUT,FLANGED, 6M This part replaces K9201-51078.

K9221-00630

$2.12

92015A

NUT,8MM

K9201-51143

Unavailable

92022

WASHER,10.5X20X1

KK920-22239

Unavailable

92027

COLLAR

K9202-71183

Unavailable

92122

ROLLER,CHAIN GUIDE

K9212-21030

Unavailable

130

BOLT-FLANGED,6X This part replaces KK130-G0640.

K130B-A0640

Unavailable

130A

BOLT-FLANGED,8X60

KK130-G0860

Unavailable

550

PIN-COTTER,2.5X18

KK550-D2518

Unavailable
