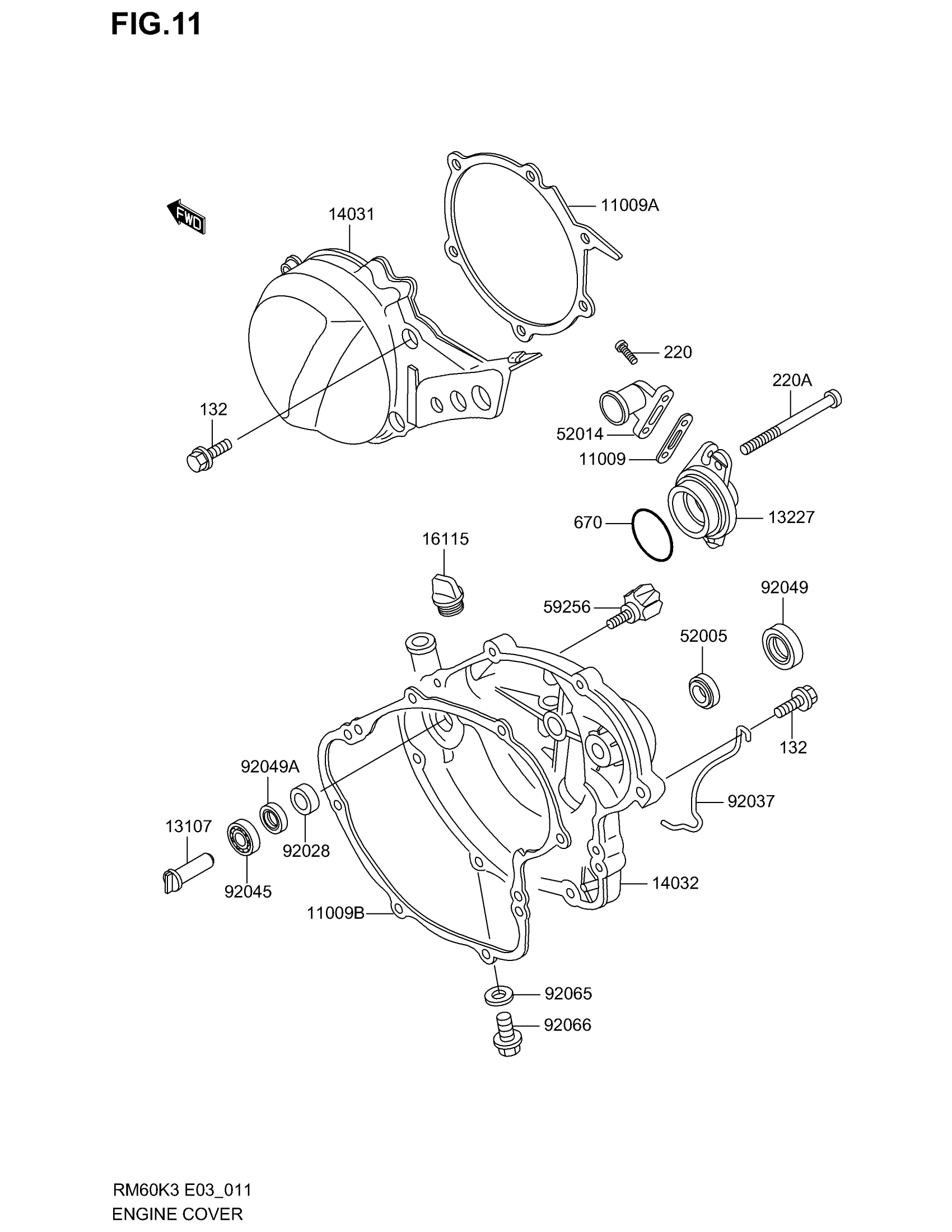

Suzuki RM60 (2003) ENGINE COVER Diagram

GASKET,ELBOW

K1100-91952

Unavailable

GASKET,GENERATOR COVER

K1100-91974

$12.65

GASKET,CLUTCH COVER

K1100-91976

Unavailable

SHAFT,WATER PUMP

K1310-71123

Unavailable

HOUSING,WATER PUMP

K1322-71069

Unavailable

COVER-GENERATOR This part replaces K1403-11215.

K1403-10033

$47.78

COVER-CLUTCH

K1403-21246

Unavailable

CAP-OIL FILLER

KK161-15018

$9.02

GAUGE,OIL LEVEL This part replaces K5200-51055.

K5200-50019

$12.07

ELBOW

K5201-41067

Unavailable

IMPELLER,WATER PUMP

K5925-61052

Unavailable

BUSHING

K9202-81317

Unavailable

CLAMP,TUBE

K9203-71236

Unavailable

BEARING-BALL,608MC3

K9204-51305

Unavailable

SEAL-OIL,SB16244

KK920-49002

$6.88

SEAL-OIL,MHSD8X18X10J-1

K9204-91366

$15.08

GASKET,10.5X16X1

KK920-65058

$3.00

PLUG,DRAIN

K9206-61241

Unavailable

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

$1.97

SCREW,PAN CROS This part replaces KK220-B0520.

K220A-A0520

Unavailable

SCREW-PAN-CROS, This part replaces KK220-B0675.

K220A-A0675

Unavailable

O RING,39MM

KK670-B3039

Unavailable
