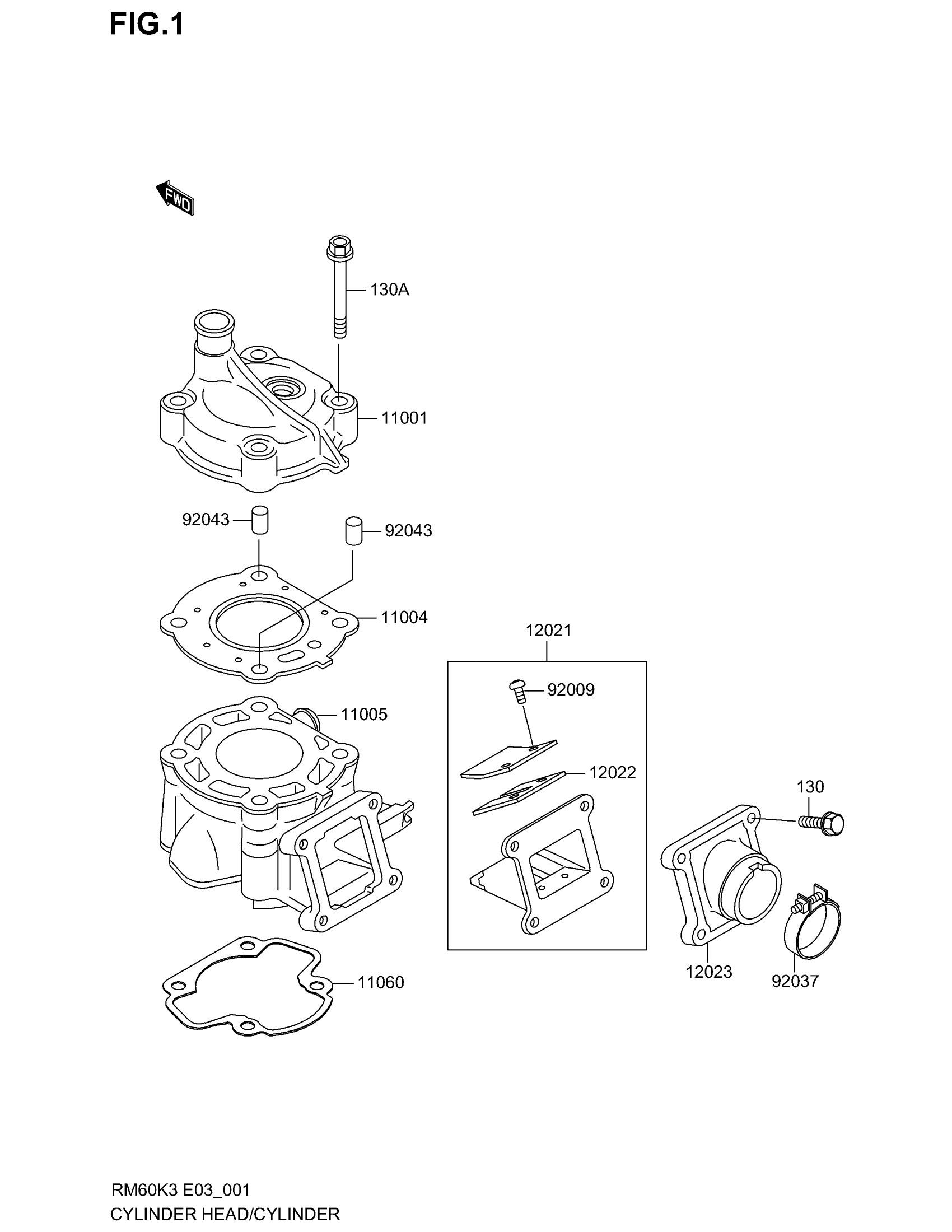

Suzuki RM60 (2003) CYLINDER HEAD/CYLINDER Diagram

#

Description

Price

11001

HEAD-CYLINDER

K1100-11175

Unavailable

11004

GASKET-HEAD

K1100-41218

Unavailable

11005

CYLINDER-ENGINE

K1100-51378

Unavailable

11060

GASKET,CYLINDER BASE

K1106-01873

Unavailable

12021

VALVE-ASSY-REED

K1202-11015

Unavailable

12022

VALVE-REED,T=0.42

K1202-21013

Unavailable

12023

HOLDER-VALVE,REED

K1202-31019

Unavailable

92009

SCREW,REED VALVE

K9200-91014

Unavailable

92037

CLAMP

K9203-71305

Unavailable

92043

PIN,DOWEL,10X14

K9204-31037

Unavailable

130

NO DESCRIPTION AVAILABLE This part replaces KK130-P0620.

K130C-A0620

Unavailable

130A

BOLT-FLANGED

K130P-08105

Unavailable
