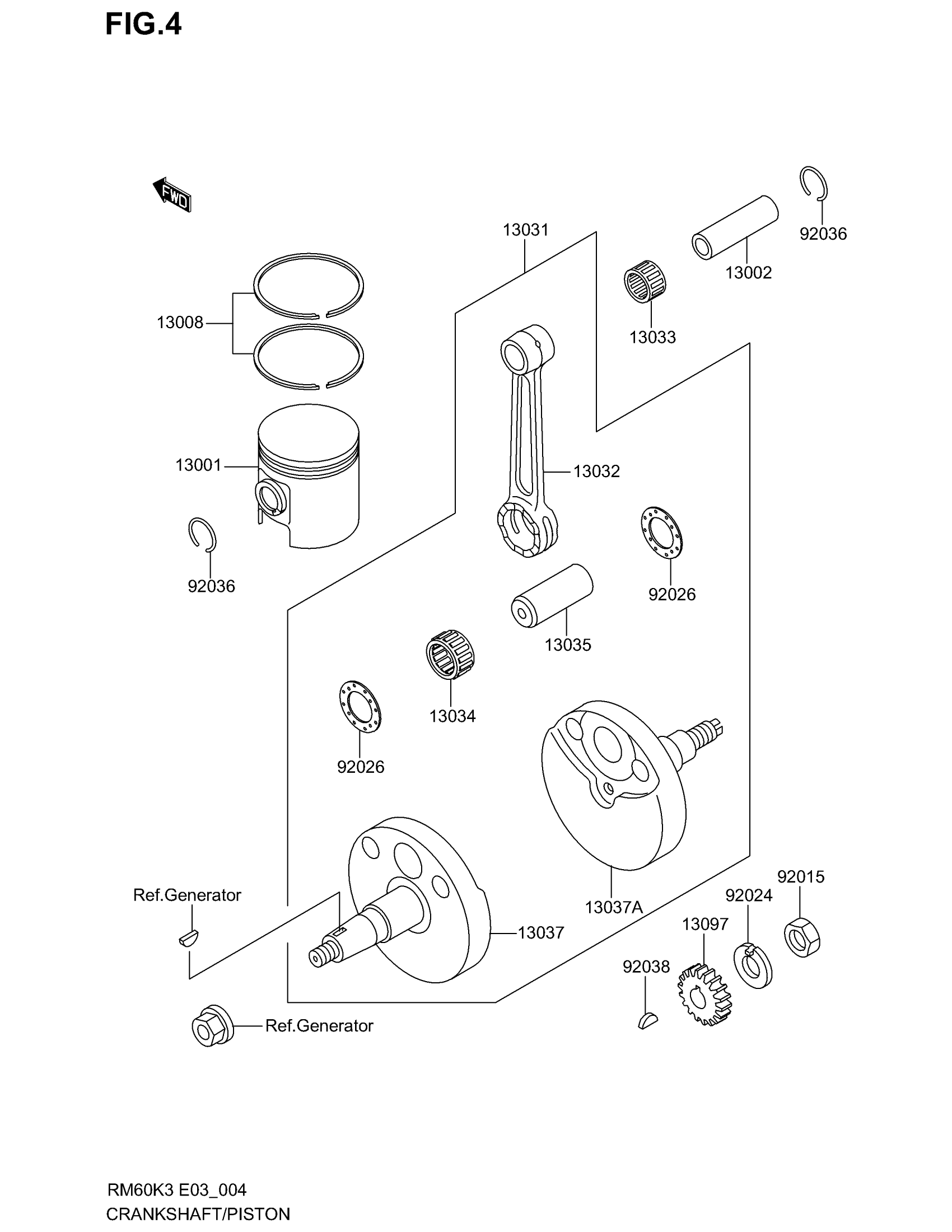

Suzuki RM60 (2003) CRANKSHAFT/PISTON Diagram

#

Description

Price

13001

PISTON-ENGINE,B

K1300-11536

Unavailable

13002

PIN-PISTON

K1300-21119

Unavailable

13008

RING-SET-PISTON

K1300-85050

Unavailable

13031

CRANKSHAFT-COMP

K1303-11448

Unavailable

13032

ROD-CONNECTING

K1303-21246

Unavailable

13033

BRG,NEEDLE,12X1 This part replaces KK130-33028.

K1303-30002

Unavailable

13034

BEARING-BIG END,B4

K1303-41107

Unavailable

13035

PIN-CRANK

K1303-51002

Unavailable

13037

CRANKSHAFT,LH

K1303-71204

Unavailable

13037A

CRANKSHAFT,RH

K1303-71220

Unavailable

13097

GEAR-PRIMARY SPUR,22T

K1309-71055

Unavailable

92015

NUT,12MM

KK920-15006

Unavailable

92024

WASHER,CLAW,12.5X25X0.8

KK920-24003

Unavailable

92026

SPACER

K9202-61522

Unavailable

92036

RING-SNAP,PISTON PIN

KK920-36007

$3.08

92038

KEY,WOODRUFF

KK920-38003

Unavailable
