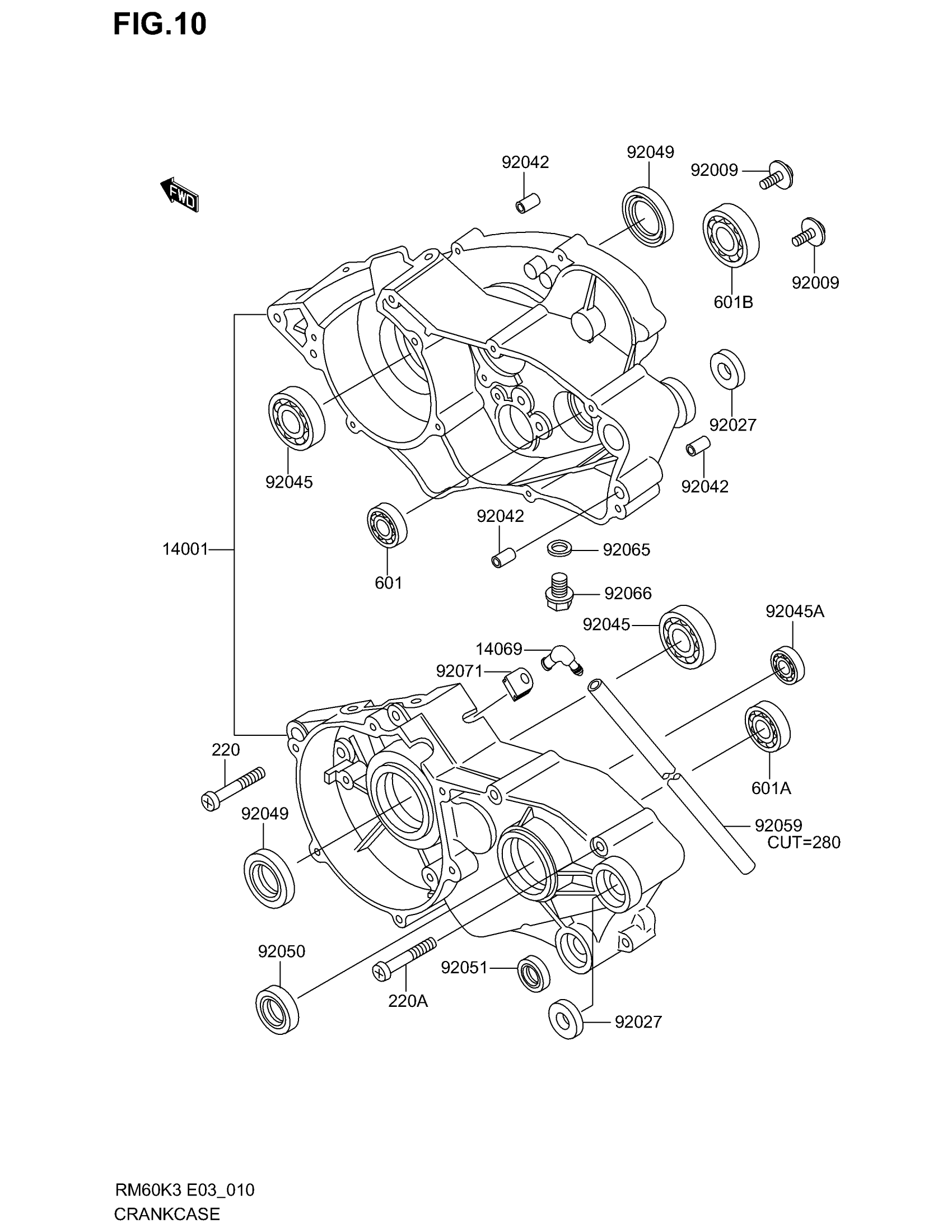

Suzuki RM60 (2003) CRANKCASE Diagram

#

Description
Price

14001

SET-CRANKCASE

K1400-11317

Unavailable

14069

BREATHER,CRANKC This part replaces K1406-91001.

K1406-91062

Unavailable

92009

SCREW,6X15

K9200-91103

Unavailable

92027

COLLAR,12.1X26X6

K9202-71744

Unavailable

92042

PIN,DOWEL,6.3X8X14

KK920-42007

$4.03

92045

BEARING-BALL,R-6304C3

K9204-51059

$30.70

92045A

BEARING-BALL,6001C3ML01

K9204-51235

Unavailable

92049

SEAL-OIL,SD20407GS

K9204-91188

$14.27

92050

SEAL-OIL,SC25376

KK920-50013

$11.33

92051

SEAL-OIL,TB13225.5

KK920-51005

Unavailable

92059

TUBE,6X9X1050

K9205-91939

Unavailable

92065

GASKET,10.5X16X1

KK920-65058

$3.00

92066

PLUG,DRAIN

K9206-61241

Unavailable

92071

GROMMET,BREATHER

KK920-71042

Unavailable

220

SCREW-PAN-CROS, This part replaces KK220-B0635.

K220A-A0635

Unavailable

220A

SCREW-PAN-CROS,6X60

KK220-B0660

Unavailable

601

BEARING-BALL,#6002

KK601-A6002

Unavailable

601A

BEARING-BALL,#6004

KK601-A6004

Unavailable

601B

BEARING-BALL,#6203

KK601-A6203

$12.05
