CARBURETOR

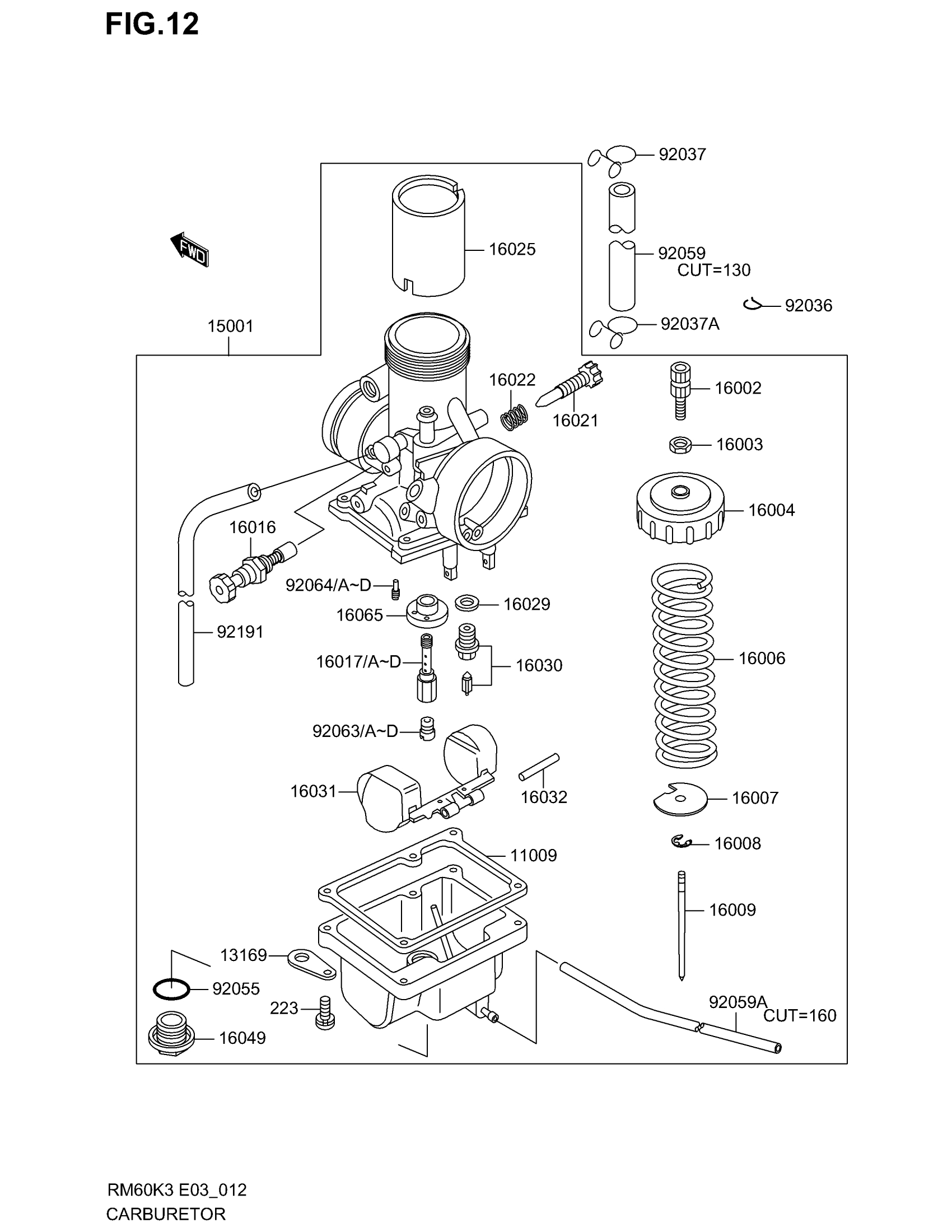

Suzuki RM60 (2003) CARBURETOR Diagram
#
11009
GASKET,FLOAT CHAMBER
K1100-91147
Unavailable
13169
PLATE,TUBE
K1316-91951
Unavailable
15001
CARBURETOR-ASSY
K1500-11384
Unavailable
16002
ADJUSTER-CABLE
KK160-02011
Unavailable
16003
NUT,ADJUST LOCK
KK160-03006
Unavailable
16004
CAP-CHAMBER
KK160-04025
Unavailable
16006
SPRING,THROTTLE VALVE
KK160-06023
Unavailable
16007
SEAT-SPRING,THROTTLE VALVE
KK160-07023
Unavailable
16008
CLAMP,E-TYPE
KK160-08010
Unavailable
16009
NEEDLE-JET,5I14
K1600-91220
Unavailable
16016
PLUNGER,STARTER This part replaces K1601-61052.
K1601-60008
Unavailable
16017
JET-NEEDLE,N-8
K1601-71215
Unavailable
16017A
JET-NEEDLE,O-0 | OPTION
K1601-71216
Unavailable
16017B
JET-NEEDLE,O-2 | OPTION
K1601-71217
Unavailable
16017C
JET-NEEDLE,N-6 | OPTION
K1601-71259
Unavailable
16017D
JET-NEEDLE,N-4 | OPTION
K1601-71268
Unavailable
16021
SCREW-THROTTLE STOP
K1602-11108
Unavailable
16022
SPRING,THROTTLE STOP SCREW
KK160-22005
Unavailable
16025
VALVE-THROTTLE,CA2.0
K1602-51107
Unavailable
16029
GASKET,FLOAT VALVE SEAT
KK160-29004
Unavailable
16030
VALVE-FLOAT,2.5
KK160-30005
Unavailable
16031
FLOAT
K1603-11005
Unavailable
16032
PIN,FLOAT
KK160-32008
Unavailable
16049
COVER-MAIN JET
K1604-91001
Unavailable
16065
HOLDER,JET NEEDLE
K1606-51020
Unavailable
92037A
CLAMP
K9203-71712
Unavailable
92055
RING-O,MAIN JET COVER
K9205-51061
Unavailable
92059
TUBE,5.3X10.5X350
K9205-91596
Unavailable
92059A
TUBE,3X5X300
K9205-91755
Unavailable
92063
JET-MAIN,#180 | OPTION
KK920-63020
Unavailable
92063A
JET-MAIN,#190 | OPTION
KK920-63021
Unavailable
92063B
JET-MAIN,#200
KK920-63022
Unavailable
92063C
JET-MAIN,#210 | OPTION
KK920-63023
Unavailable
92063D
JET-MAIN,#220 | OPTION
KK920-63024
Unavailable
92064
JET-PILOT,#35 | OPTION
K9206-41023
Unavailable
92064A
JET-PILOT,#30
K9206-41030
Unavailable
92064B
JET-PILOT,#25 | OPTION
K9206-41038
Unavailable
92064C
JET-PILOT,#40 | OPTION
K9206-41104
Unavailable
92064D
JET-PILOT,#20 | OPTION
K9206-41110
Unavailable
92191
TUBE,3X5X270
K9219-12065
Unavailable
223
NO DESCRIPTION AVAILABLE This part replaces KK223-B0416.
K223A-A0416
Unavailable
