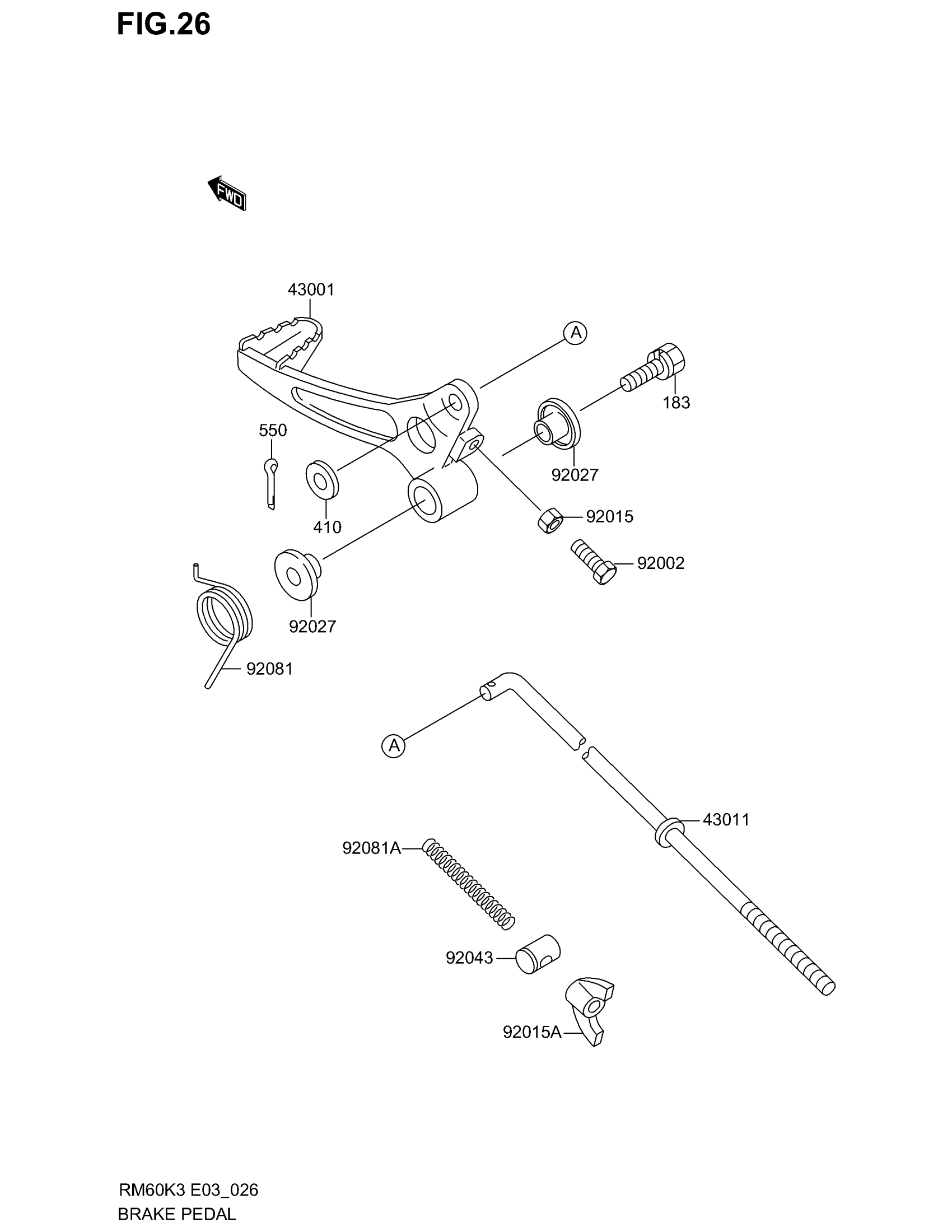

Suzuki RM60 (2003) BRAKE PEDAL Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

K4300-11243

Unavailable

43011

ROD-BRAKE

K4301-11104

Unavailable

92002

BOLT,6X20

K9200-21373

Unavailable

92015

NUT,6MM

K9201-51391

$2.77

92015A

NUT,WING,6MM

K9201-54004

$4.82

92027

COLLAR,BRAKE PEDAL

K9202-71497

Unavailable

92043

PIN,BRAKE ROD This part replaces KK920-43039.

K9204-30147

$4.57

92081

SPRING,BRAKE PEDAL

K9208-11494

Unavailable

92081A

SPRING,BRAKE ROD

K9208-11688

$3.62

183

BOLT-UPSET-WS-SMALL

KK183-G0840

Unavailable

410

WASHER This part replaces KK410-B0600.

K410A-A0600

$1.57

550

PIN-COTTER,2.0X This part replaces KK550-D2015.

K550A-A2015

$1.49
