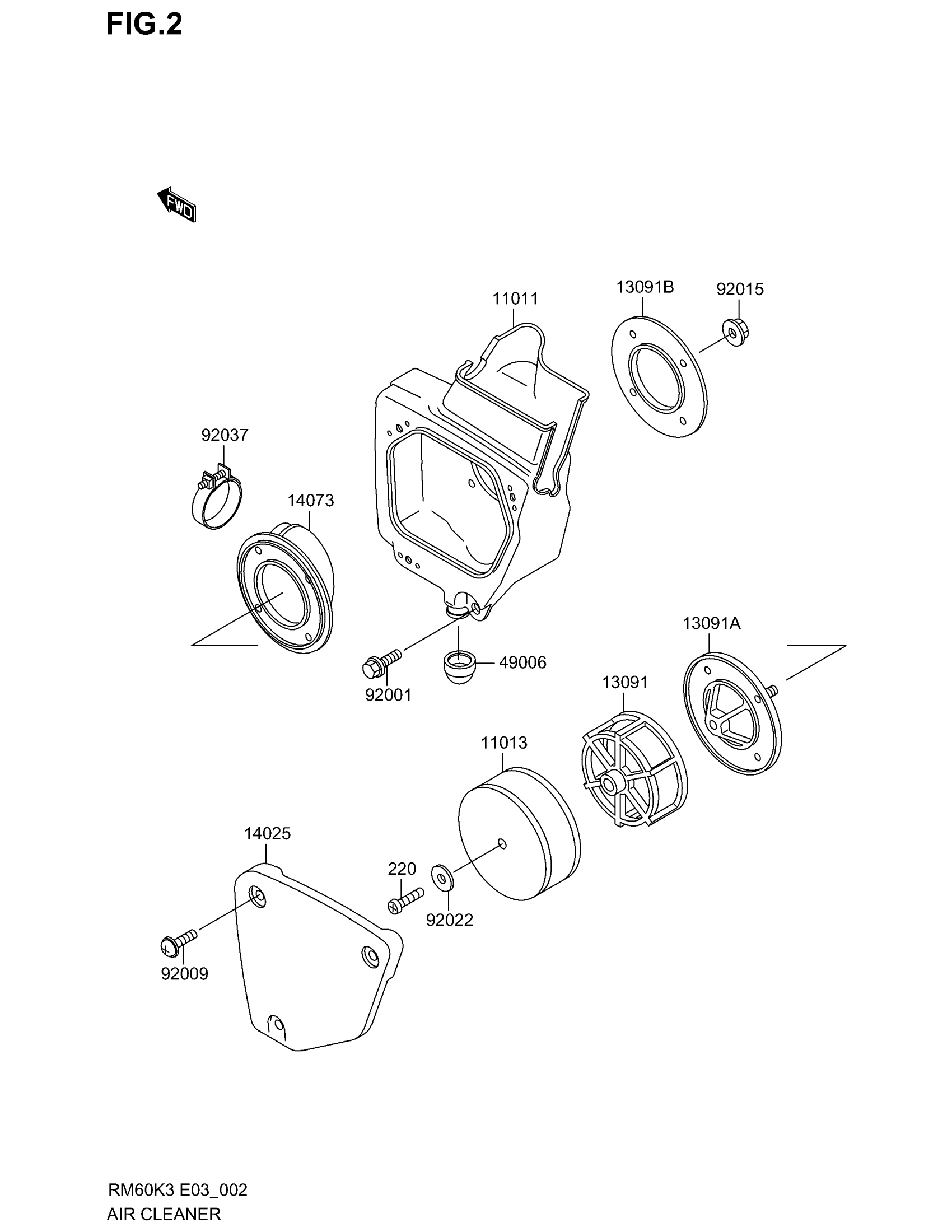

Suzuki RM60 (2003) AIR CLEANER Diagram

#

Description

Price

11011

CASE-AIR FILTER

K1101-11178

Unavailable

11013

ELEMENT-AIR FILTER

K1101-31121

Unavailable

13091

HOLDER,ELEMENT

K1309-11336

Unavailable

13091A

HOLDER,AIR FILTER CASE

K1309-11337

Unavailable

13091B

HOLDER,AIR FILTER CASE

K1309-11338

Unavailable

14025

COVER,AIR FILTER CASE

K1402-51958

Unavailable

14073

DUCT,AIR FILTER

K1407-31191

Unavailable

49006

BOOT,AIR FILTER

K4900-61156

Unavailable

92001

BOLT,W/WASHER,6X12

K9200-11517

Unavailable

92009

SCREW,6X14 This part replaces K9200-91287.

K9217-20401

Unavailable

92015

NUT,FLANGED,5MM

K9201-51259

$3.13

92022

WASHER,6.5X20X1 This part replaces KK920-22125.

K9220-00283

$1.49

92037

CLAMP

K9203-71172

Unavailable

220

SCREW-PAN-CROS, This part replaces KK220-B0625.

K220A-A0625

Unavailable
