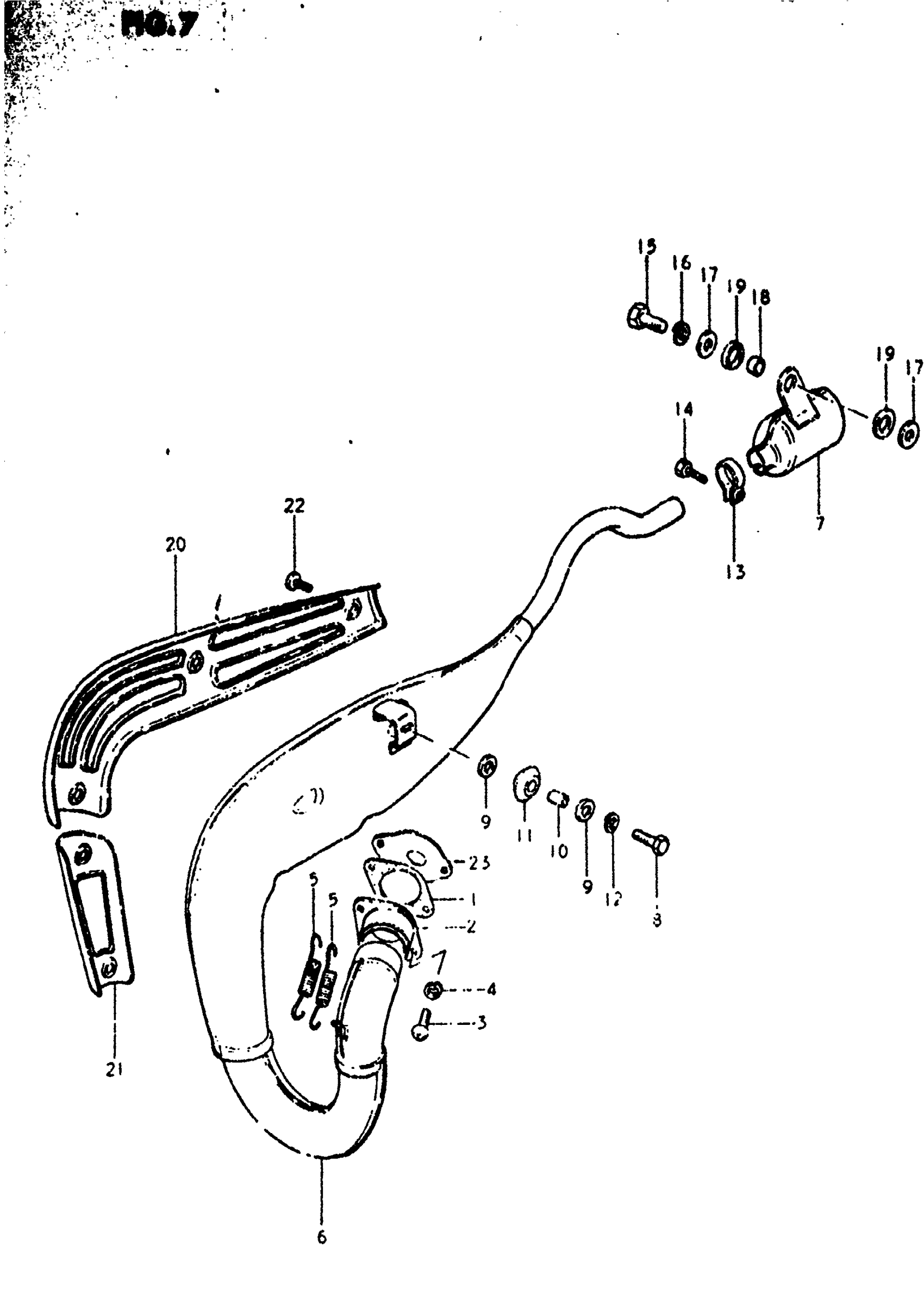

Suzuki RM60 (1983) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST This part replaces 14181-46001.

14181-46001-H17

Unavailable

2

FLANGE, EXHAUST PIPE

14170-46600

Unavailable

3

SCREW This part replaces 02112-06168.

02112-06167

$1.49

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

SPRING

09443-11002

$3.10

6

NO DESCRIPTION AVAILABLE This part replaces 14310-46620.

14310-46640-H01

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 14330-46630.

14330-46650-H01

Unavailable

8

BOLT This part replaces 01107-08308.

01500-08307

$3.04

9

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

10

SPACER,8.5X12X1 This part replaces 09180-08048.

09180-08302

$2.19

11

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

CLAMP

09402-25601

Unavailable

14

BOLT This part replaces 09128-06006.

09128-06057

$1.65

15

BOLT This part replaces 01107-08258.

01500-08257

$2.50

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER (8.5X26X1.6) | MODEL X This part replaces 09160-08005.

09160-08134

$2.03

17

WASHER (8.5X26X1.6) | MODEL D This part replaces 09160-08004.

09160-08134

$2.03

18

SPACER, TAIL COVER RR RR This part replaces 09180-08050.

09180-08199

$2.12

19

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

20

COVER, MUFFLER NO. 1

14781-46640

Unavailable

21

COVER, MUFFLER NO. 2

14782-46640

Unavailable

22

SCREW This part replaces 02112-06088.

02112-06087

$1.49

23

PLATE, EXHAUST PIPE

14159-46610

Unavailable
