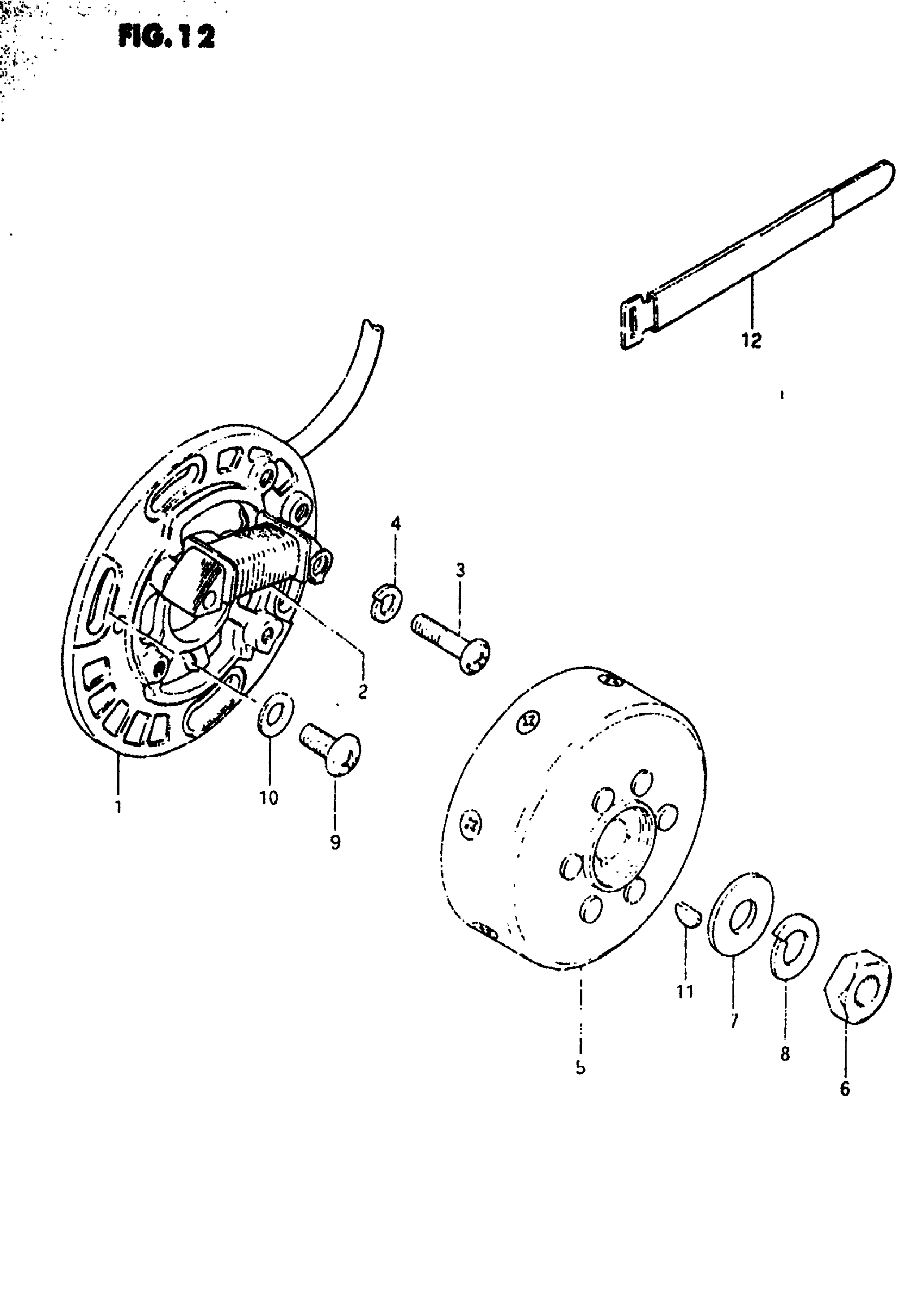

Suzuki RM60 (1983) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 4

32101-46630

Unavailable

2

COIL, PRIMARY

32140-46630

Unavailable

3

SCREW This part replaces 02112-04258.

02112-0425B

$2.34

4

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

5

FLYWHEEL

32102-46630

Unavailable

6

NUT This part replaces 09140-10003.

09140-10041

$2.38

7

WASHER This part replaces 08322-21108.

08322-01107

$2.15

8

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

9

SCREW This part replaces 02112-06168.

02112-06167

$1.49

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

KEY

08341-31039

$1.89

12

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
