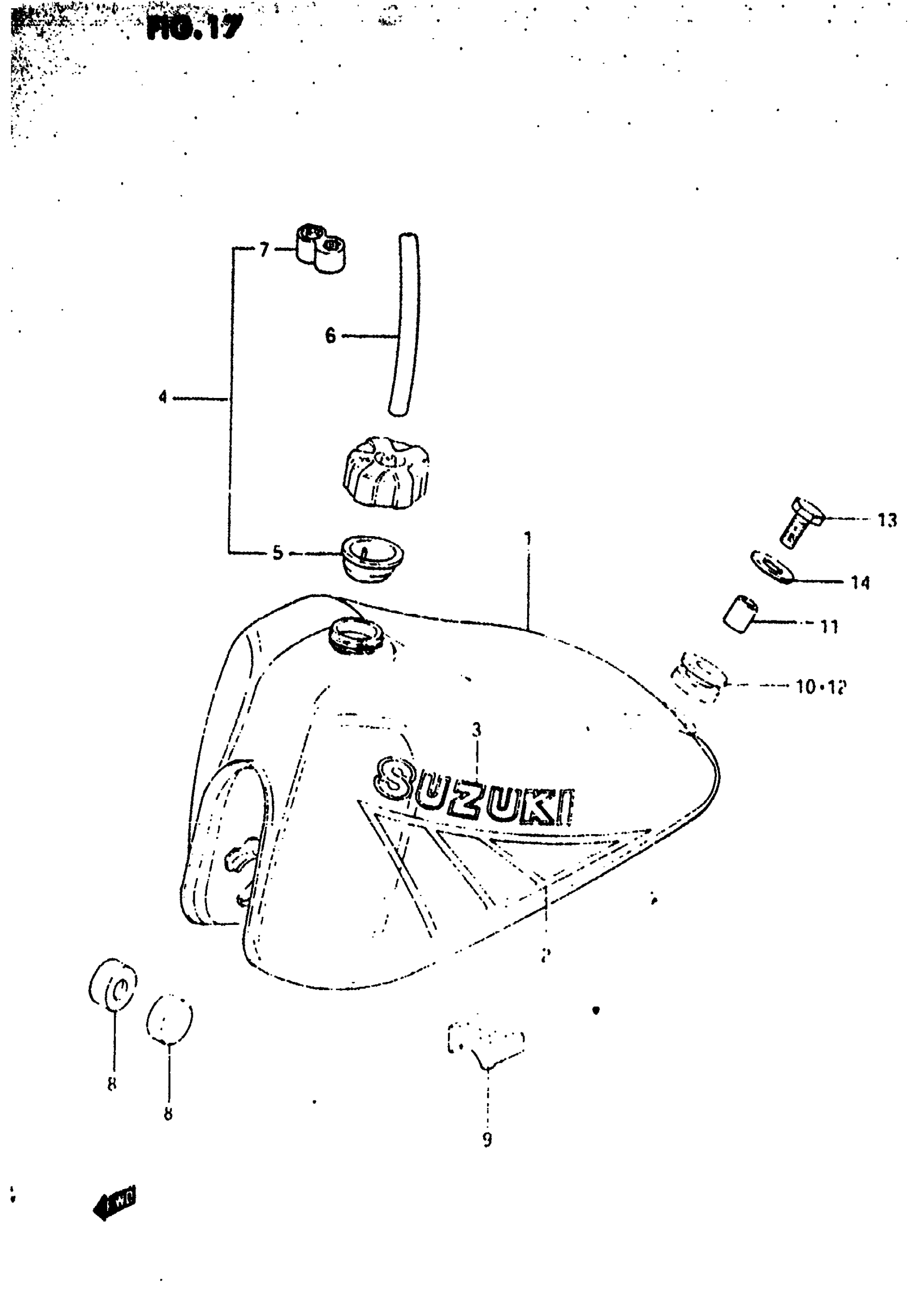

Suzuki RM60 (1983) FUEL TANK (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-46650-163.

44100-46640-163

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68110-46640-74H.

68110-46630-74H

Unavailable

3

EMBLEM FUEL TAN This part replaces 68111-46610-019.

68111-46700-019

Unavailable

4

CAP ASSY, FUEL TANK | Includes Item(s) 5 - 7

44200-46900

Unavailable

5

GASKET

44248-46900

Unavailable

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

CLAMP

44486-32101

$3.65

8

CUSHION, FRONT

09329-10005

$2.11

9

CUSHION, REAR NO. 1

44541-46000

Unavailable

10

CUSHION, REAR NO. 2

09320-12013

$2.60

11

SPACER This part replaces 09180-08003.

09180-08191

$2.53

12

CUSHION, REAR NO. 3

09320-12020

Unavailable

13

BOLT This part replaces 01107-08258.

01500-08257

$2.50

14

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35
