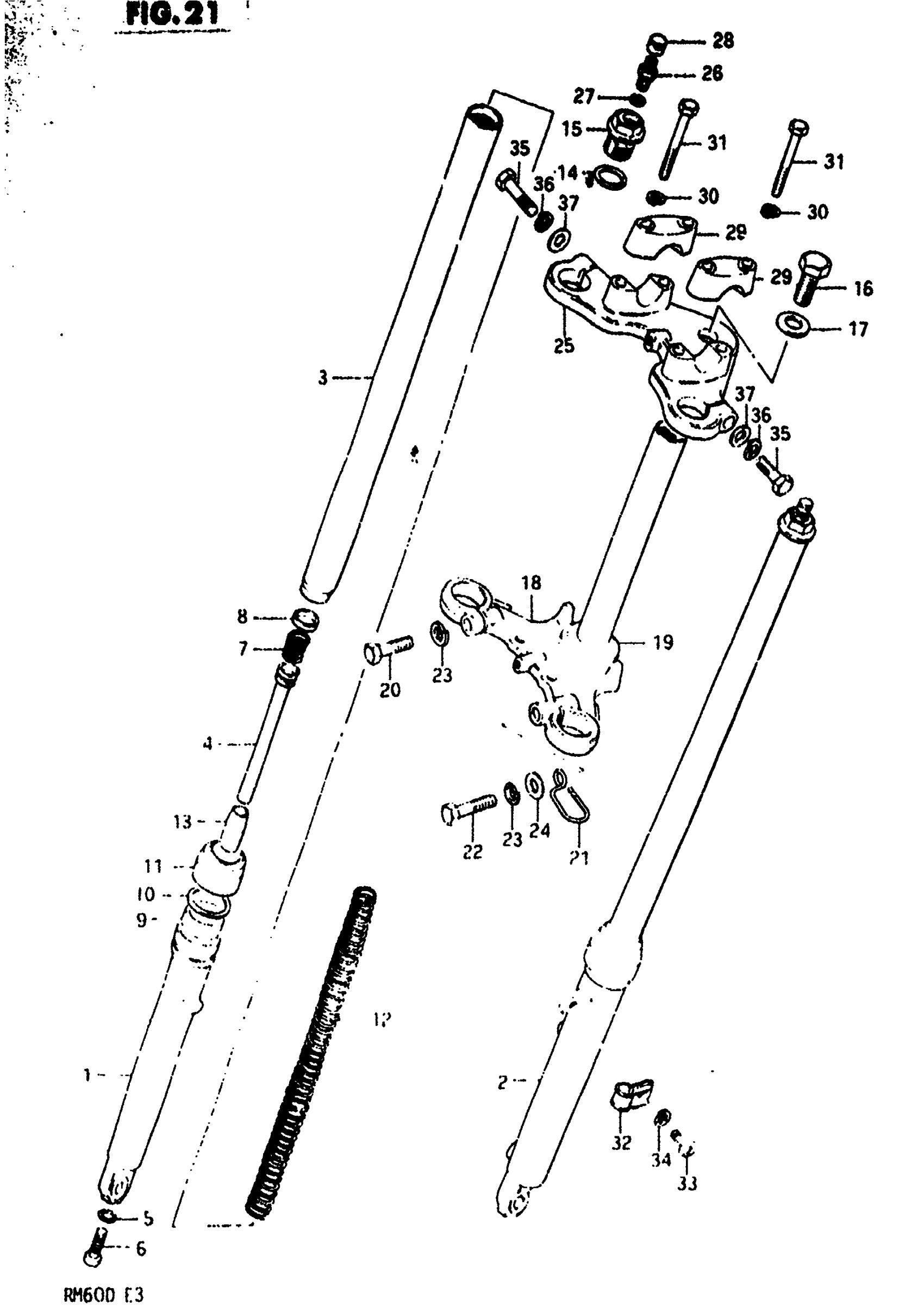

Suzuki RM60 (1983) FRONT FORK (MODEL Z) Diagram

#

Description
Price

0

FRONT FORK ASSY (GOLD) | Includes Item(s) 1 - 37

51100-46686-08C

Unavailable

1

TUBE, OUTER RH

51131-46686

Unavailable

2

TUBE, OUTER LH

51141-46686

Unavailable

3

TUBE, INNER

51110-46684

Unavailable

4

CYLINDER This part replaces 51146-46684.

51146-03400

Unavailable

5

O RING This part replaces 51148-31030.

51148-36011

$3.56

6

BOLT

51147-48130

$4.34

7

SPRING

51177-46100

Unavailable

8

RING, PISTON

51196-46100

$8.42

9

OIL SEAL This part replaces 51153-46101.

51153-03400

$13.56

10

RING, OIL SEAL STOPPER

51156-46686

Unavailable

11

SEAL,DUST This part replaces 51571-46100.

51571-46101

$5.64

12

SPRING

51171-46684

Unavailable

13

PIECE, OIL LOCK

51195-46684

Unavailable

14

.O RING

51181-25030

$4.52

15

BOLT

51351-46686

Unavailable

16

BOLT

51352-46030

$9.17

17

WASHER

51356-46030

Unavailable

18

STEM, STEERING (GOLD)

51410-46686-08C

Unavailable

19

RACE, OUTER LOWER

51621-33001

$16.25

20

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

21

CLIP

51455-46030

Unavailable

22

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

WASHER This part replaces 08322-11108.

08322-01107

$2.15

25

STEM HEAD, STEERING (GOLD)

51311-46686-08C

Unavailable

26

VALVE

51293-45440

Unavailable

27

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

28

CAP

51294-40400

$8.12

29

HOLDER, HANDLE (GOLD)

56211-46680-08C

Unavailable

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

32

CLIP This part replaces 51452-46030.

51452-46040

$6.58

33

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

34

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

35

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

WASHER This part replaces 08322-21088.

08322-01087

$2.13
