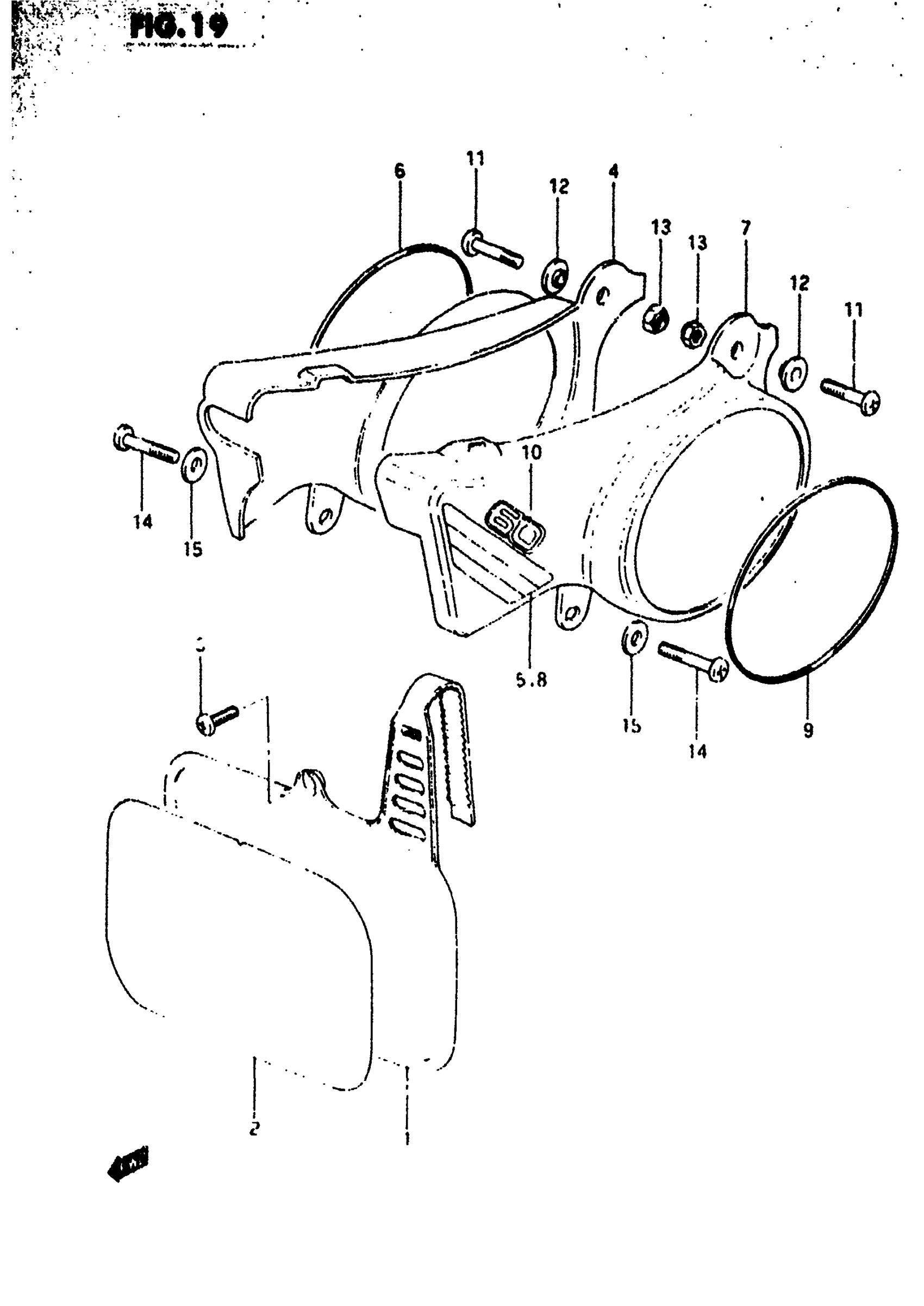

Suzuki RM60 (1983) FRAME COVER (MODEL Z) Diagram

#

Description
Price

1

PLATE, FRONT NUMBER This part replaces 94911-20410.

94911-20900

Unavailable

2

EMBLEM This part replaces 68169-20400.

68250-20900

Unavailable

3

SCREW This part replaces 02142-05128.

02142-05127

$1.97

4

COVER, FRAME RH (YELLOW)

47111-46610-163

Unavailable

5

TAPE, STRIPING RH

68136-46660-67H

Unavailable

6

TAPE, RH

68134-46610

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 47211-46611-163.

47211-46611-13L

Unavailable

8

TAPE, STRIPING LH

68146-46660-67H

Unavailable

9

TAPE, LH

68144-46610

Unavailable

10

EMBLEM

68131-46650-64D

Unavailable

11

SCREW, BODY COVER UPPER This part replaces 02142-06258.

09125-06055

$2.34

12

WASHER

09169-06016

$1.65

13

NUT This part replaces 08319-31068.

08319-31067

$2.03

14

SCREW

02142-06167

$1.49

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78
