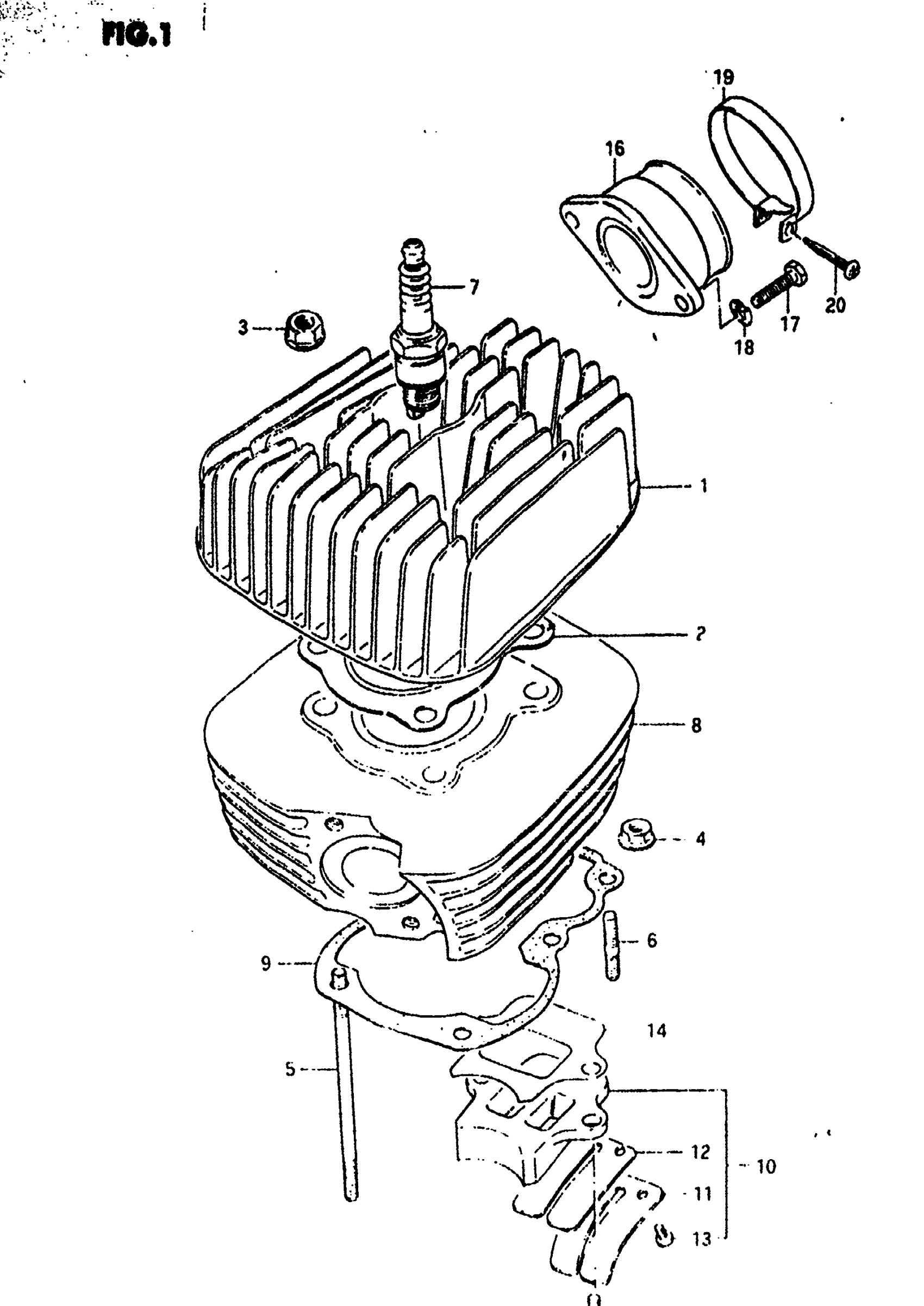

Suzuki RM60 (1983) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-46610

Unavailable

2

GASKET

11141-46601

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

NUT This part replaces 08316-16068.

08319-31067

$2.03

5

STUD BOLT, NO. 1

09108-08066

Unavailable

6

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

7

SPARK PLUG B8HS This part replaces 09482-00151.

09482-00198

$2.93

7

SPARK PLUG (ND, W24FS)

09482-00058

Unavailable

8

CYLINDER

11210-46630

Unavailable

9

GASKET, CYLINDE This part replaces 11241-46900.

11241-46900-H17

Unavailable

10

REED VALVE ASSY | Includes Item(s) 11 - 13

13150-46011

Unavailable

11

STOPPER

13152-23011

Unavailable

12

REED VALVE

13153-27110

Unavailable

13

SCREW This part replaces 13154-19011.

02112-0308A

$1.80

14

GASKET, REED VALVE This part replaces 13156-46001.

13156-46001-H17

$2.83

15

SCREW This part replaces 02112-06168.

02112-06167

$1.49

16

PIPE, INTAKE

13110-46630

Unavailable

17

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

CLAMP | Includes Item(s) 20 This part replaces 09402-46306.

09402-46208

$4.64

20

SCREW This part replaces 03211-04208.

03211-04207

$1.49
