1983 Suzuki RM60 Chain Case - Chain Tensioner Diagram

← All diagrams

Find the part on the Chain Case - Chain Tensioner diagram for your 1983 Suzuki RM60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

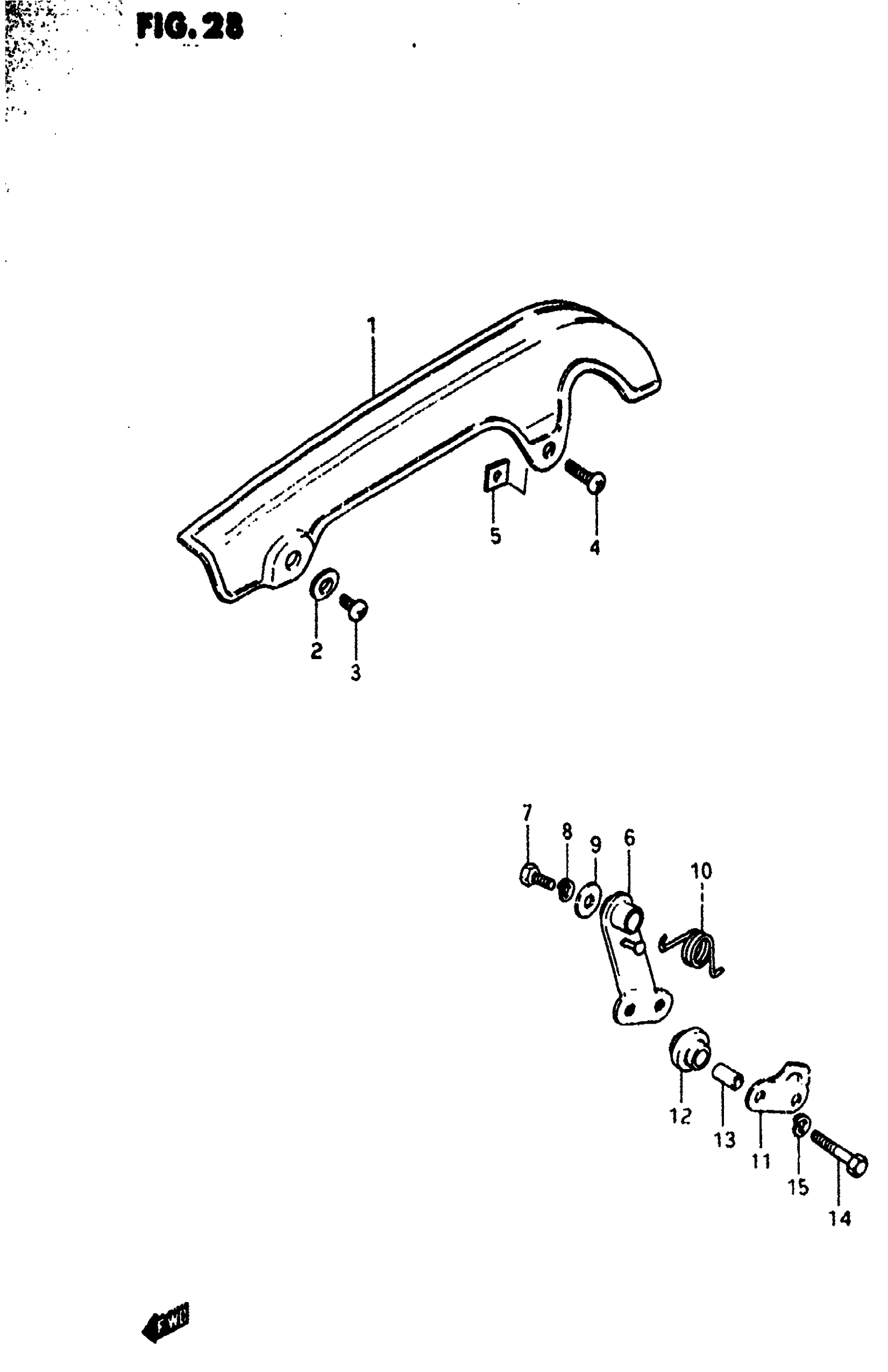

1983 Suzuki RM60 Chain Case - Chain Tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, CHAIN (BLACK)

61311-46601-019

1
Out of stock

2

WASHER, FRONT

09169-06010

1
Out of stock

3

SCREW This part replaces 02112-06088.

02112-06087

1
Out of stock

4

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

5

NUT

61316-43000

1
Out of stock

6

TENSIONER, CHAIN

61350-46650

1
Out of stock

7

BOLT This part replaces 01107-06128.

01500-06127

1
Out of stock

8

1

$2.28

In stock

9

WASHER This part replaces 09160-06007.

09160-06084

1
Out of stock

10

SPRING

09448-22003

1
Out of stock

11

PLATE, CHAIN TENSIONER

61352-46650

1
Out of stock

12

ROLLER This part replaces 61345-41100.

61345-41101

2
Out of stock

13

SPACER (6.5X10.5X22.5)

09180-06067

2
Out of stock

14

BOLT, REAR This part replaces 01107-06308.

01500-06307

2
Out of stock

15

2

$2.28

In stock
