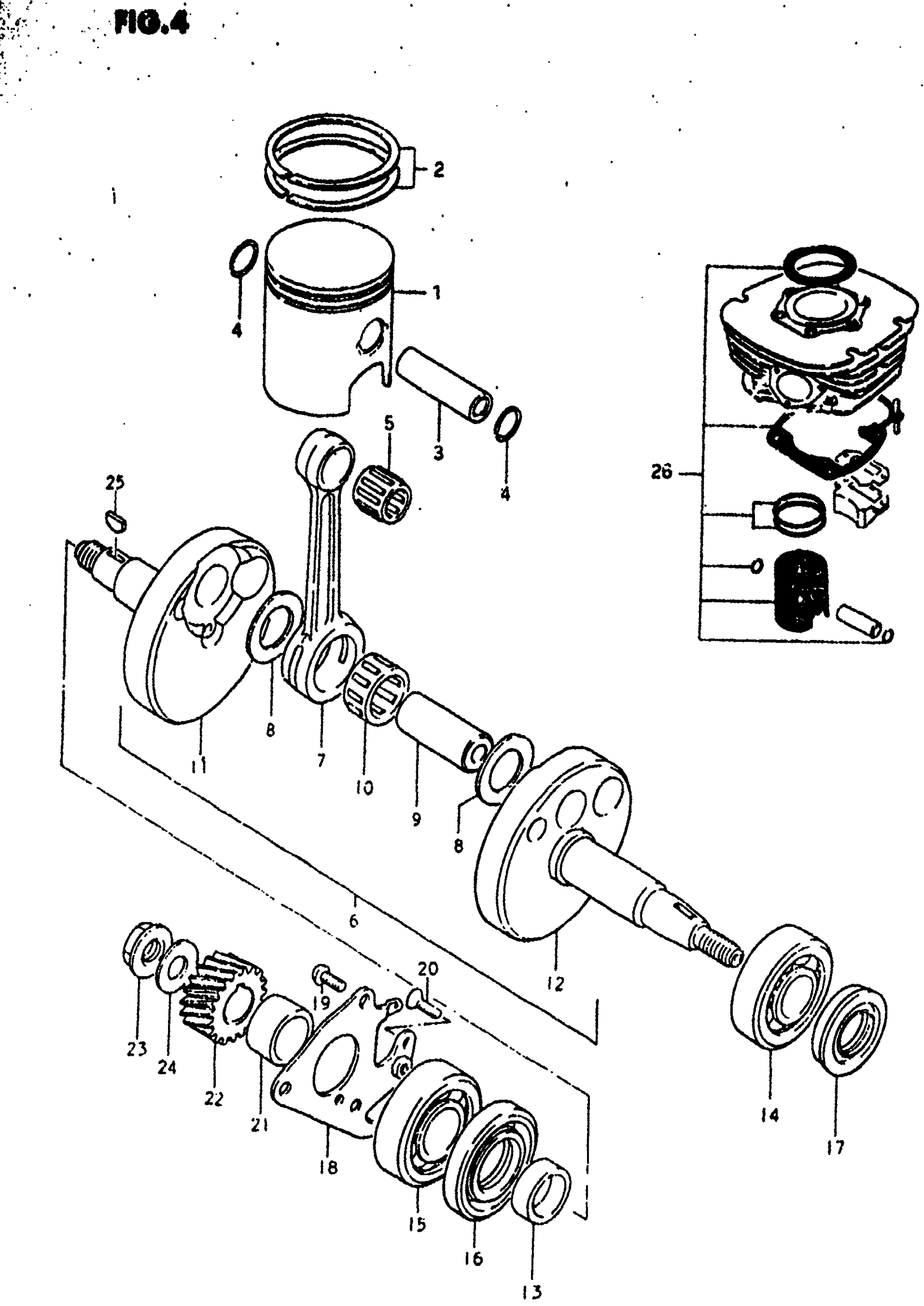

Suzuki RM60 (1983) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD)

12110-46600

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-46600-050.

12103-46880-050

Unavailable

1

PISTON SET | OPT This part replaces 12110-46600-100.

12103-46880-100

$186.13

2

RING SET, PISTON (STD)

12140-46610

Unavailable

2

RING SET, PISTON (OS:0.5) | OPT

12140-46610-050

Unavailable

2

RING SET, PISTON (OS:1.0) | OPT

12140-46610-100

Unavailable

3

PIN, PISTON This part replaces 12151-02000.

12151-04700

$6.61

4

SNAP RING

09381-12001

$1.43

5

BEARING (12X16X16) This part replaces 09263-12015.

09263-12023

$9.20

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 13

12200-46610

Unavailable

7

ROD, CONNECTING

12161-14001

$96.27

8

WASHER This part replaces 09160-17005.

09160-17022

$2.95

9

PIN, CRANK This part replaces 12211-46900.

12211-46000

$34.47

10

BEARING (17X23X14) This part replaces 09263-17010.

09263-17022

$17.06

11

CRANKSHAFT, RH

12221-46900

Unavailable

12

CRANKSHAFT, LH

12261-46610

Unavailable

13

SPACER, RH

09180-20021

$10.80

14

BEARING, DRIVE SHAFT LH This part replaces 09262-20019.

09262-20069

$21.00

15

BEARING, RH (20X47X14) This part replaces 09262-20045.

09262-20064

Unavailable

16

OIL SEAL, RH

09283-26015

$5.58

17

OIL SEAL, LH

09283-20034

$4.66

18

RETAINER, BEARING RH

12541-46900

Unavailable

19

SCREW This part replaces 02112-06128.

02112-06127

$1.83

20

SCREW This part replaces 02122-06128.

02122-06127

$1.83

21

SPACER

09180-20059

$8.20

22

GEAR, PRIMARY DRIVE (NT:19)

21111-46000

Unavailable

23

NUT

09159-12005

$4.28

24

WASHER

09164-12016

Unavailable

25

KEY

08341-31039

$1.89

26

ENGINE TOP END KIT | STD

12100-46820

Unavailable

26

ENGINE TOP END KIT | OPT OS:0.5

12100-46820-050

Unavailable
