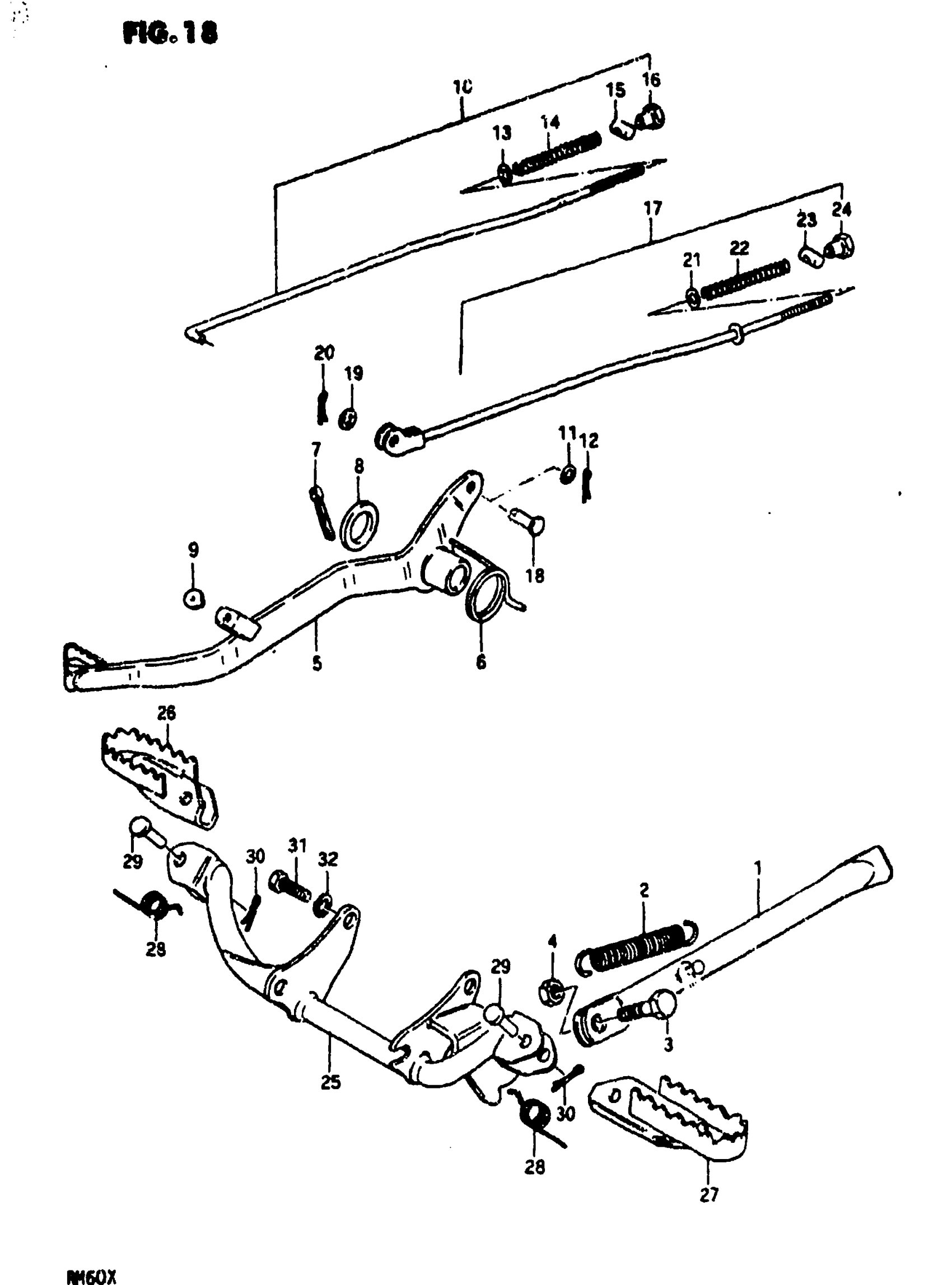

Suzuki RM60 (1981) STAND Diagram

#

Description
Price

1

STAND, PROP This part replaces 42310-16500.

42310-41100

Unavailable

2

SPRING | MODEL N This part replaces 09443-14005.

09443-14017

$3.04

2

SPRING | MODEL T, X

09443-14017

$3.04

3

BOLT This part replaces 09100-10007.

09100-10287

$3.48

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

PEDAL, BRAKE | MODEL N This part replaces 43110-46901.

43110-46502

Unavailable

5

PEDAL, BRAKE | MODEL T

43110-46910

Unavailable

5

PEDAL, BRAKE | MODEL X

43110-46502

Unavailable

6

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

7

PIN This part replaces 04111-30308.

04111-3030A

$1.49

8

WASHER

09160-15002

$1.91

9

STOP, BRAKE PEDAL

43155-30500

Unavailable

10

ROD ASSY, REAR BRAKE | MODEL N; Includes Item(s) 11 - 16

43300-46600

Unavailable

11

WASHER | MODEL N This part replaces 08322-21058.

08322-01057

$2.13

12

COTTER PIN | MODEL N This part replaces 04111-20208.

04111-2020A

$1.49

13

WASHER | MODEL N This part replaces 08322-21068.

08322-01067

$2.13

14

SPRING | MODEL N

09440-09004

$2.20

15

PIN | MODEL N

09209-11002

$2.19

16

.NUT | MODEL N This part replaces 09150-06001.

09150-06010

$3.10

17

ROD ASSY, REAR BRAKE | MODEL T This part replaces 43300-46610.

43300-46611

Unavailable

17

ROD ASSY, REAR BRAKE | MODEL X; Includes Item(s) 18 - 24

43300-46611

Unavailable

18

PIN. FRONT | MODEL T, X

09200-06013

$2.00

19

WASHER | MODEL T, X This part replaces 08322-21068.

08322-01067

$2.13

20

COTTER PIN | MODEL T, X This part replaces 04111-20208.

04111-2020A

$1.49

21

WASHER | MODEL T, X This part replaces 08322-21068.

08322-01067

$2.13

22

SPRING | MODEL T, X

09440-09004

$2.20

23

PIN, REAR | MODEL T, X

09209-11002

$2.19

24

.NUT | MODEL T, X This part replaces 09150-06001.

09150-06010

$3.10

25

NO DESCRIPTION AVAILABLE This part replaces 43510-46000.

43510-46700

Unavailable

26

FOOTREST, RH (BLACK) This part replaces 43550-46000.

43550-46000-019

$20.27

27

FOOTREST, LH (BLACK) This part replaces 43560-46000.

43560-46000-019

$20.97

28

SPRING

09448-14012

$3.04

29

PIN

09200-08002

$2.05

30

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

31

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
