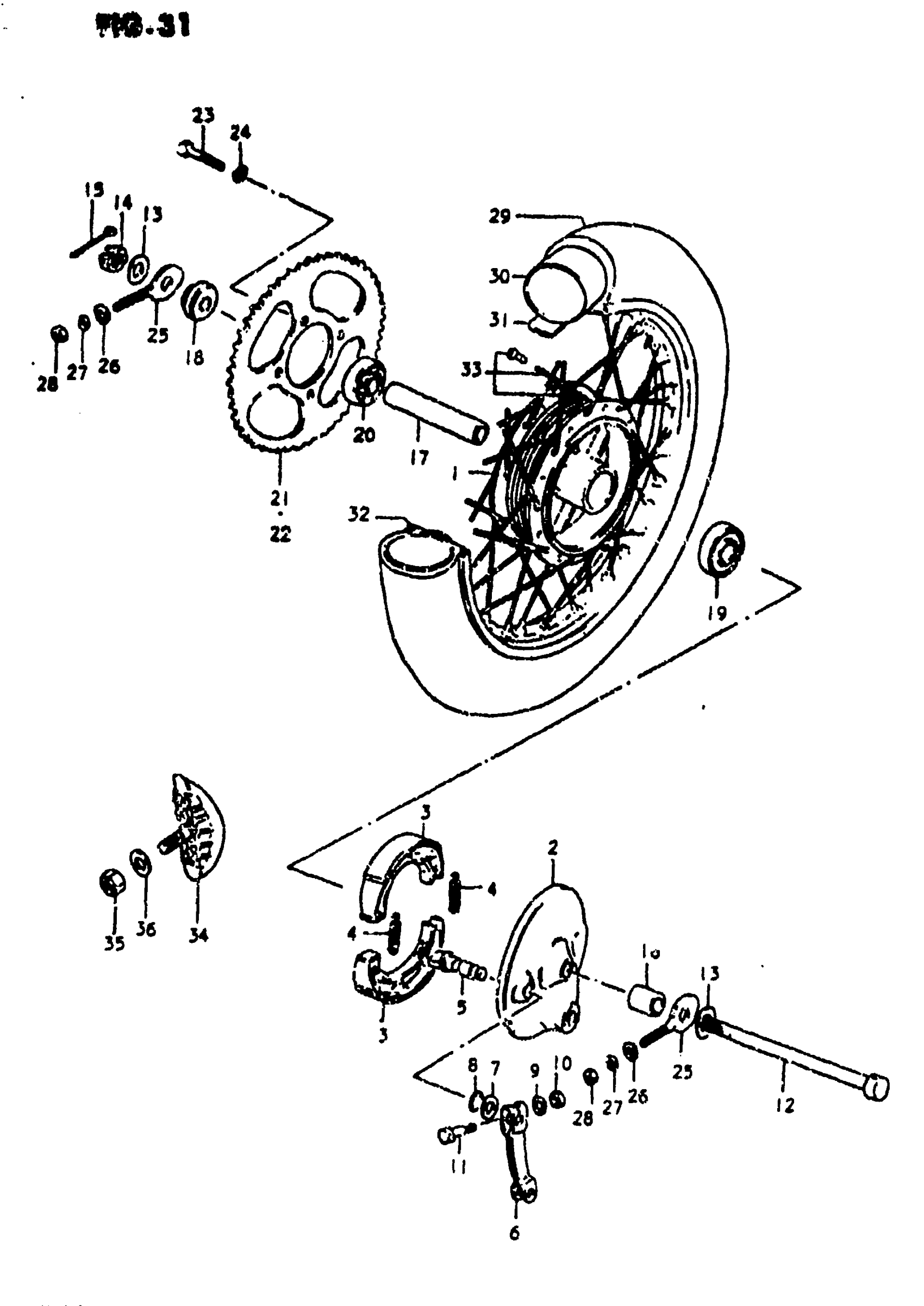

Suzuki RM60 (1981) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB

64100-46821

Unavailable

2

PANEL, REAR BRAKE ANCHOR This part replaces 64210-46022.

64210-46024

Unavailable

3

SHOE/SPRING SET | MODEL N, T This part replaces 54410-35000.

54400-35860

$36.32

3

SHOE & SPRING S | MODEL X This part replaces 54410-43020.

54400-43880

$39.22

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE This part replaces 54441-29302.

54441-29305

$20.02

6

LEVER,REAR BRAK This part replaces 64451-46100.

64451-46100-A05

$18.02

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08310-11068.

08310-00067

$2.13

11

BOLT, BRAKE CAM LEVER (6x31)

09100-06078

$2.38

12

AXLE,FRONT This part replaces 64711-43000.

64711-43001

$41.97

13

WASHER This part replaces 08322-11128.

08322-01127

$1.84

14

NUT This part replaces 08314-31128.

08314-3112A

$2.41

15

PIN This part replaces 04111-30308.

04111-3030A

$1.49

16

SPACER,12.1X22X This part replaces 09180-12077.

09180-12077-XC0

Unavailable

17

SPACER, REAR HUB BEARING

09180-12078

$11.28

18

SPACER, REAR AXIE LH

64750-46000

$9.23

19

B1 12X37X12 BEA This part replaces 08143-63017.

08143-6301B

$19.20

20

BEARING This part replaces 08123-63017.

08123-6301B

$14.10

21

SPROCKET, REAR (NT:42) | MODEL T, X

64511-46600

Unavailable

22

SPROCKET, REAR (NT:44) | MODEL N

64511-46610

Unavailable

23

BOLT

09100-10131

Unavailable

24

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

25

ADJUSTER, CHAIN

61411-01002

$7.37

26

WASHER This part replaces 08322-21068.

08322-01067

$2.13

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

.NUT This part replaces 08310-11068.

08310-00067

$2.13

29

TIRE, REAR (3.00-12) IRC This part replaces 65100-46420.

65100-46470

$99.33

30

TUBE, INNER (3.00-12)

65200-46410

$27.63

31

INNER TUBE PROT This part replaces 65261-46410.

65261-46420

$3.43

32

RIM, WHEEL This part replaces 65311-46430.

65311-46420

$126.33

33

SPOKE SET, REAR WHEEL This part replaces 65320-46420.

65320-46430

$35.94

34

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$58.75

35

NUT This part replaces 08310-12088.

08310-00087

$2.13

36

WASHER This part replaces 08322-11088.

08322-01087

$2.13
