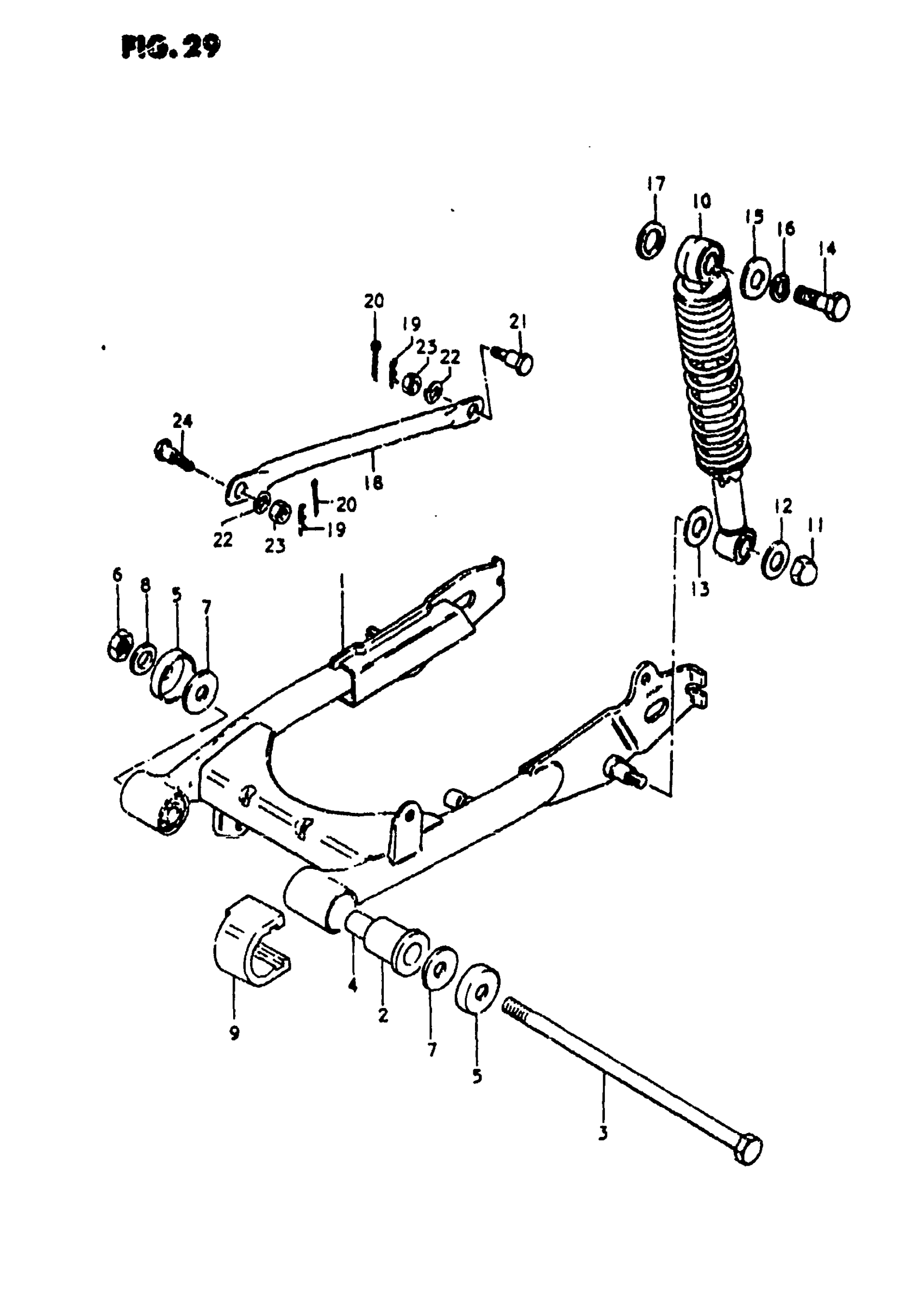

Suzuki RM60 (1981) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR | MODEL N

61101-46830-08C

Unavailable

1

SWINGING ARM, REAR | MODEL T, X; Includes Item(s) 2

61101-46890-08C

Unavailable

2

BUSHING

09307-18003

Unavailable

3

SHAFT, PIVOT

61211-25300

Unavailable

4

SPACER

61251-46910

Unavailable

5

COVER, DUST SEAL

61262-46910

Unavailable

6

NUT This part replaces 08319-21108.

09159-10027

$3.10

7

THRUST WASHER

09160-10052

Unavailable

8

WASHER This part replaces 08322-21108.

08322-01107

$2.15

9

BUFFER This part replaces 61273-46630.

61273-46631

Unavailable

10

SHOCK ABSORBER, REAR

62100-46640

Unavailable

11

NUT This part replaces 08313-11108.

08313-10107

$2.50

12

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

13

WASHER | MODEL T, X This part replaces 08322-11128.

08322-01127

$1.84

14

BOLT This part replaces 01107-06128.

01500-06127

$1.97

15

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER (12.5X26X1.6) This part replaces 09160-12006.

09160-12089

$1.97

18

TORQUE LINK, REAR (GOLD) This part replaces 64311-46610.

64311-46600-08C

Unavailable

19

CLIP | MODEL N This part replaces 09385-10001.

09385-10005

$1.56

20

PIN | MODEL T, X This part replaces 04111-16158.

04111-1620A

$1.49

21

BOLT, REAR BRAKE PANEL

09111-08013

$3.04

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

NUT

09140-08008

$1.49

24

BOLT, TORQUE LINK FRONT

09111-08015

$3.16
