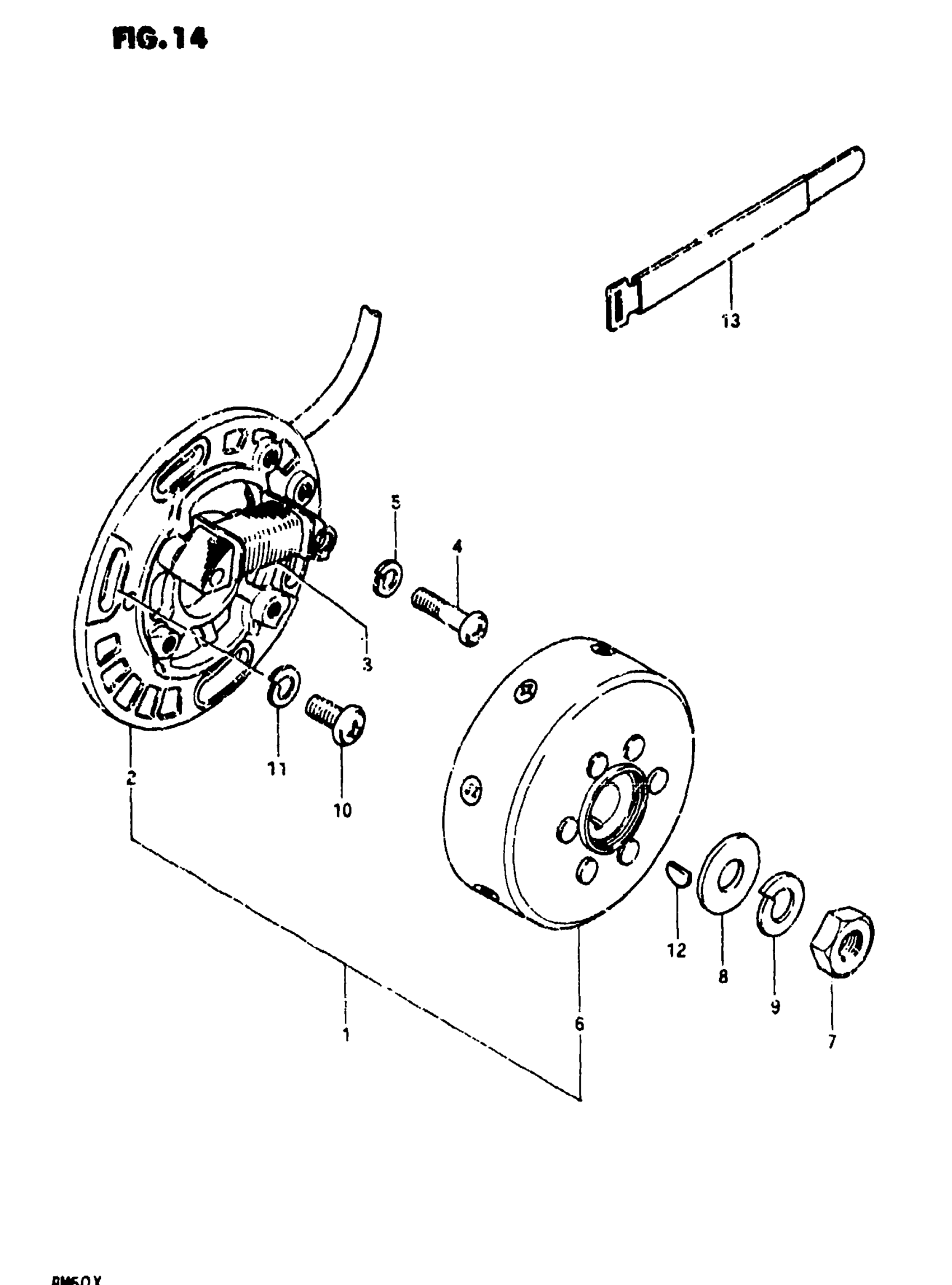

Suzuki RM60 (1981) MAGNETO (RM60X) Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 6 This part replaces 32100-46630.

32101-46630

Unavailable

2

STATOR ASSY

32101-46630

Unavailable

3

COIL, PRIMARY

32140-46630

Unavailable

4

SCREW This part replaces 02112-05258.

02112-05257

$1.49

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

FLYWHEEL

32102-46630

Unavailable

7

NUT This part replaces 09140-10003.

09140-10041

$2.38

8

WASHER This part replaces 08322-21108.

08322-01107

$2.15

9

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

10

SCREW This part replaces 02112-06168.

02112-06167

$1.49

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

KEY

08341-31039

$1.89

13

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
