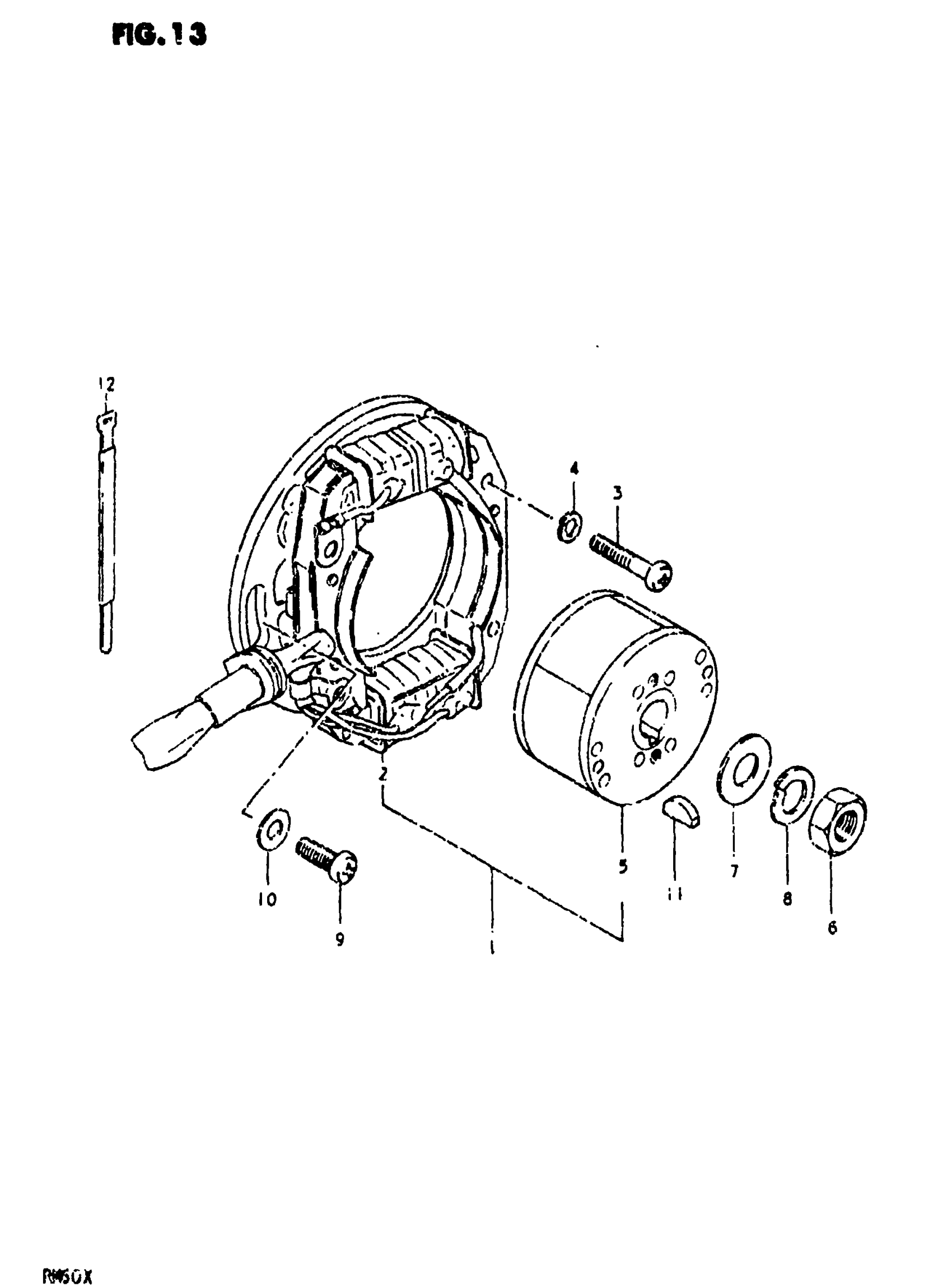

Suzuki RM60 (1981) MAGNETO (RM60T) Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 5

32100-46012

Unavailable

2

STATOR ASSY

32101-46011

Unavailable

3

SCREW This part replaces 02112-05258.

02112-05257

$1.49

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

ROTOR

32102-46012

Unavailable

6

NUT This part replaces 09140-10003.

09140-10041

$2.38

7

WASHER This part replaces 08322-21108.

08322-01107

$2.15

8

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

9

SCREW This part replaces 02112-06168.

02112-06167

$1.49

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

KEY This part replaces 08341-31049.

09420-04008

$3.42

12

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
