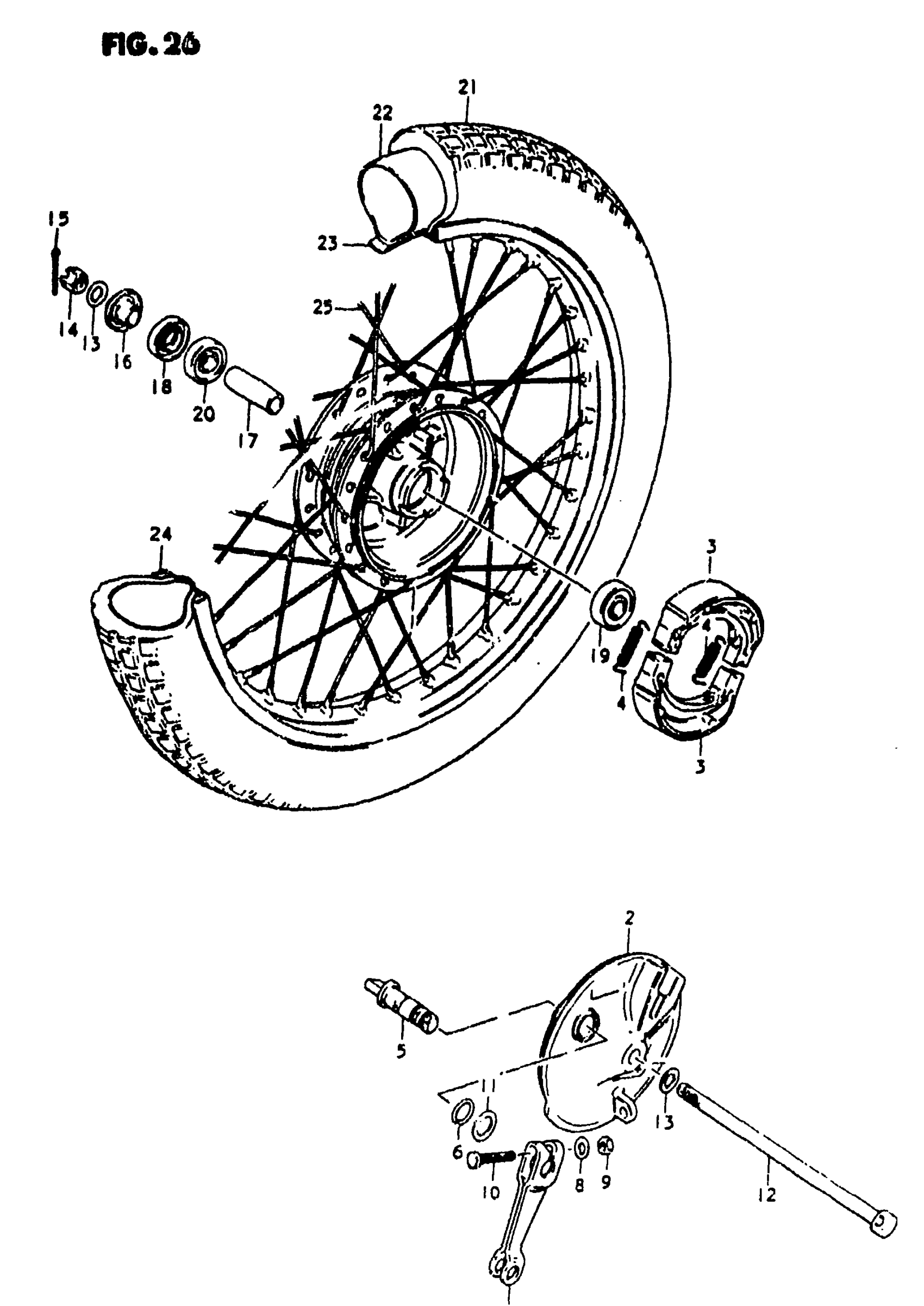

Suzuki RM60 (1981) FRONT WHEEL Diagram

NO DESCRIPTION AVAILABLE This part replaces 54110-46021.

54110-46002

Unavailable

PANEL, FRONT HUB | RM60N

54210-46001

Unavailable

PANEL, FRONT HUB | RM60T, RM60X

54210-46002

Unavailable

SHOE/SPRING SET | RM60N, RM60T This part replaces 54410-35000.

54400-35860

$36.32

SHOE & SPRING S | RM60X This part replaces 54410-43020.

54400-43880

$39.22

SPRING This part replaces 09443-07001.

09443-07025

$2.08

SHAFT, BRAKE CAM | RM60N

54441-01002

$18.80

SHAFT, BRAKE CAM | RM60T, RM60X This part replaces 54441-26501.

54441-26503

Unavailable

DUST SEAL | RM60N

09280-12001

$2.90

O RING (D:2.5,ID:13.8) | RM60T, RM60X This part replaces 09280-14003.

09280-14011

$4.77

LEVER, BRAKE CAM | RM60N

54451-38000

Unavailable

LEVER, FR BRAKE CAM | RM60T, RM60X

54451-26500

$14.76

WASHER This part replaces 08322-21068.

08322-01067

$2.13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

BOLT, ADJUSTER | RM60N This part replaces 09100-06050.

09100-06150

$2.30

BOLT | RM60T, RM60X

09100-06078

$2.38

WASHER, DUST SEAL | RM60N

09160-12011

$1.54

WASHER | RM60T, RM60X This part replaces 09160-14001.

09160-14055

$2.39

NO DESCRIPTION AVAILABLE This part replaces 54711-46100.

54711-46101

Unavailable

WASHER (10.5X22X2.3)

09160-10039

$2.26

NUT This part replaces 08314-31108.

08314-3110A

$1.99

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

SPACER, FR AXLE RH This part replaces 54740-26100.

54740-26101

$18.87

SPACER (10.2X16X51) This part replaces 09180-10005.

09180-10148

$8.18

OIL SEAL (15X31X5)

09284-15001

$4.73

BEARING This part replaces 08143-63007.

08143-6300B

$15.33

BEARING, RH

08113-62000

$13.63

TIRE (2.50-14 4 PR)

55100-46420

$79.62

TUBE,INNER This part replaces 55200-46410.

55200-46411

$17.96

PROTECTOR,INNER This part replaces 55261-24010.

55261-24020

$3.45

RIM, WHEEL

55311-24020

Unavailable

SPOKE SET

55320-24020

Unavailable
