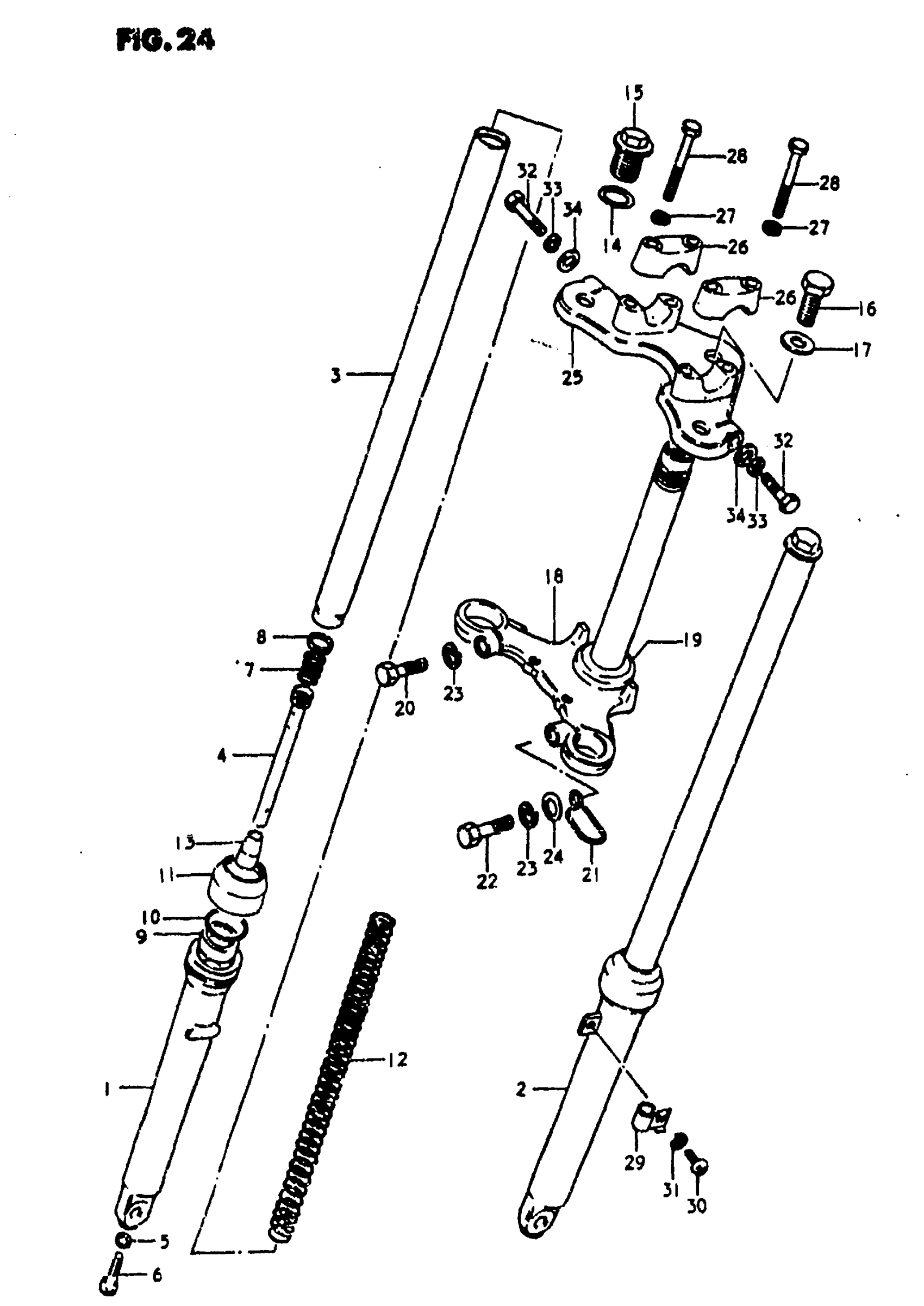

Suzuki RM60 (1981) FRONT FORK Diagram

FRONT FORK ASSY (GOLD) | Includes Item(s) 1 - 34

51100-46684-08C

Unavailable

TUBE, OUTER RH

51131-46684

Unavailable

TUBE, OUTER LH

51141-46684

Unavailable

TUBE, INNER

51110-46684

Unavailable

CYLINDER This part replaces 51146-46684.

51146-03400

Unavailable

O RING This part replaces 51148-31030.

51148-36011

$3.56

BOLT

51147-48130

$4.34

SPRING

51177-46100

Unavailable

RING, PISTON

51196-46100

$8.42

OIL SEAL This part replaces 51153-46100.

51153-03400

$13.56

RING, OIL SEAL STOPPER This part replaces 51156-46100.

51156-48130

$5.32

SEAL,DUST This part replaces 51571-46100.

51571-46101

$5.64

SPRING

51171-46684

Unavailable

PIECE, OIL LOCK

51195-46684

Unavailable

O RING (D:2.4,ID:17.8) This part replaces 51181-46190.

09280-18004

$5.18

BOLT

51351-46680

Unavailable

BOLT

51352-46030

$9.17

WASHER

51356-46030

Unavailable

STEM, STEERING (GOLD)

51410-46680-08C

Unavailable

RACE, OUTER LOWER

51621-33001

$16.25

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

CLIP

51455-46030

Unavailable

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

WASHER This part replaces 08322-11108.

08322-01107

$2.15

STEM HEAD, STEERING (GOLD)

51311-46680-08C

Unavailable

HOLDER, HANDLE (GOLD)

56211-46680-08C

Unavailable

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

CLIP This part replaces 51452-46030.

51452-46040

$6.58

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER This part replaces 08322-21088.

08322-01087

$2.13
