Partiron

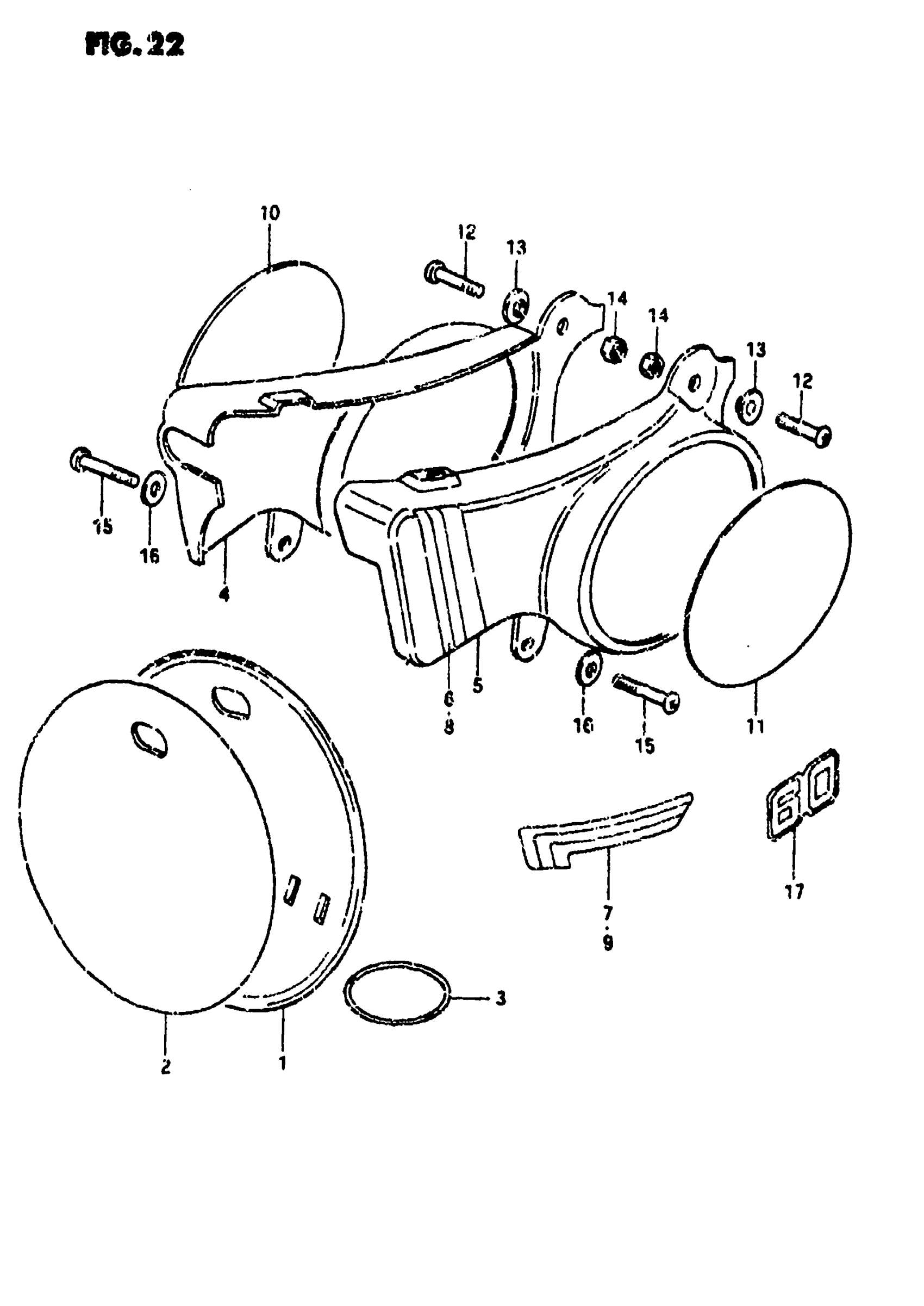

Suzuki RM60 (1981) FRAME COVER (RM60N Diagram

#

Description
Price

1

PLATE, NUMBER FRONT

94911-46001

Unavailable

2

EMBLEM, NUMBER PLATE FRONT

68169-46010

Unavailable

3

O RING This part replaces 09280-48004.

09280-48003

$2.73

4

COVER, FRAME RH (YELLOW)

47111-46610-163

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 47211-46610-163.

47211-46611-13L

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 47211-46611-163.

47211-46611-13L

Unavailable

6

TAPE, STRIPING RH | MODEL N

68136-46610-67H

Unavailable

7

TAPE, STRIPING RH | MODEL T

68136-46620-67H

Unavailable

8

TAPE, STRIPING LH | MODEL N

68146-46610-67H

Unavailable

9

TAPE, STRIPING LH | MODEL T

68146-46620-67H

Unavailable

10

TAPE, RH

68134-46610

Unavailable

11

TAPE, LH

68144-46610

Unavailable

12

SCREW, BODY COVER UPPER This part replaces 02142-06258.

09125-06055

$2.34

13

WASHER

09169-08016

$2.41

14

NUT This part replaces 08319-31068.

08319-31067

$2.03

15

SCREW

02142-06167

$1.49

16

WASHER This part replaces 09160-06007.

09160-06084

$1.78

17

EMBLEM .60. | MODEL T

68131-46610-64D

Unavailable
