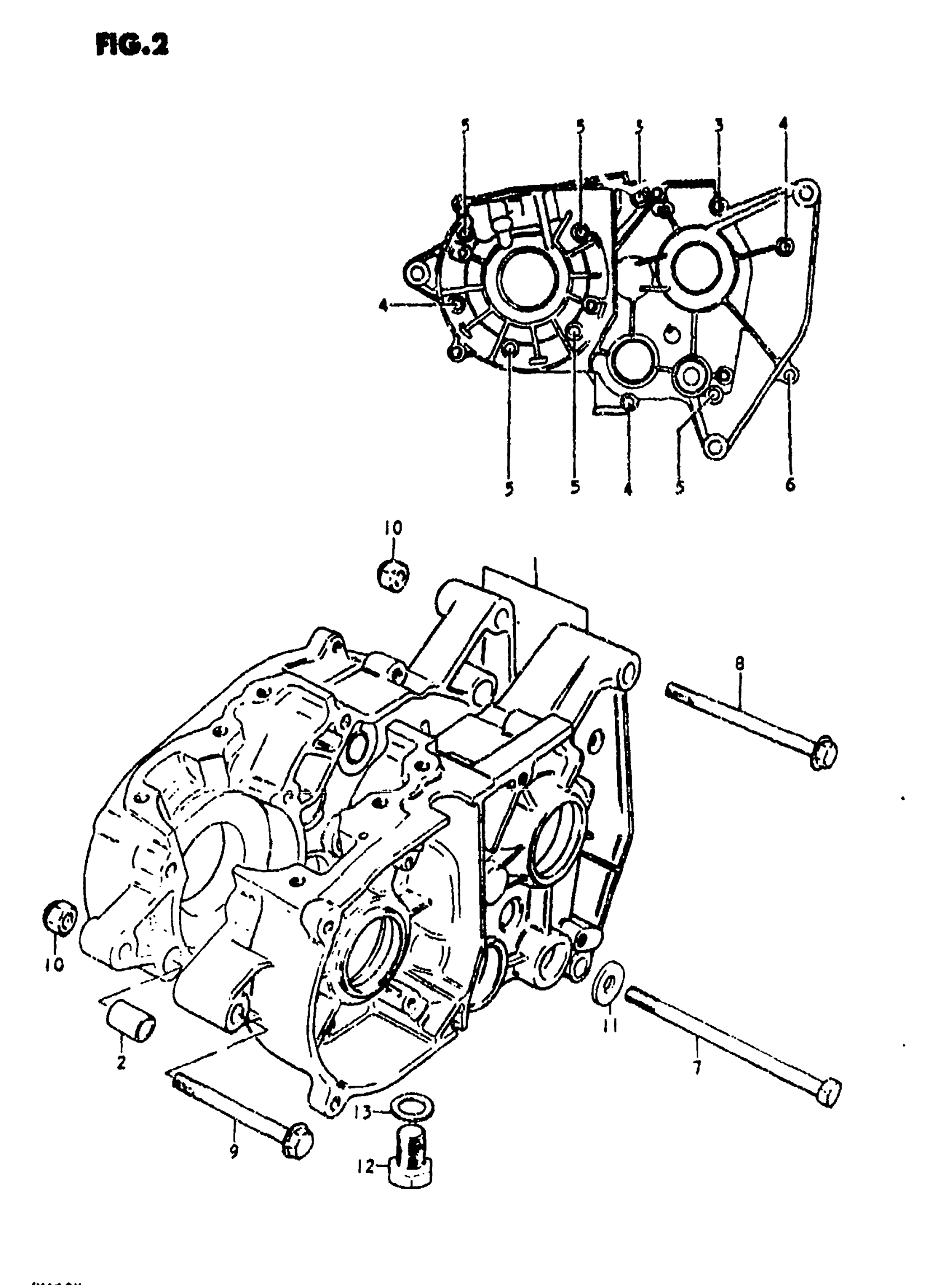

Suzuki RM60 (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | ~E.NO.103030 This part replaces 11300-46860.

11300-46861

Unavailable

1

CRANKCASE SET | E.NO.103031~; Includes Item(s) 2 - 6

11300-46861

Unavailable

2

PIN | ~E.NO.103030 This part replaces 09206-13001.

04211-13189

$2.19

2

PIN | E.NO.103031~

04211-11189

$1.78

3

SCREW This part replaces 02112-06758.

02112-06757

$3.08

4

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

BOLT This part replaces 09100-08155.

09116-08064

$6.28

8

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

9

BOLT This part replaces 01517-08758.

01550-08757

$4.68

10

NUT This part replaces 08319-31088.

08319-3108A

$2.32

11

WASHER This part replaces 09160-08030.

09160-08128

$2.80

12

BOLT This part replaces 01107-10208.

01500-1020B

$3.16

13

GASKET

09168-10002

$2.13
