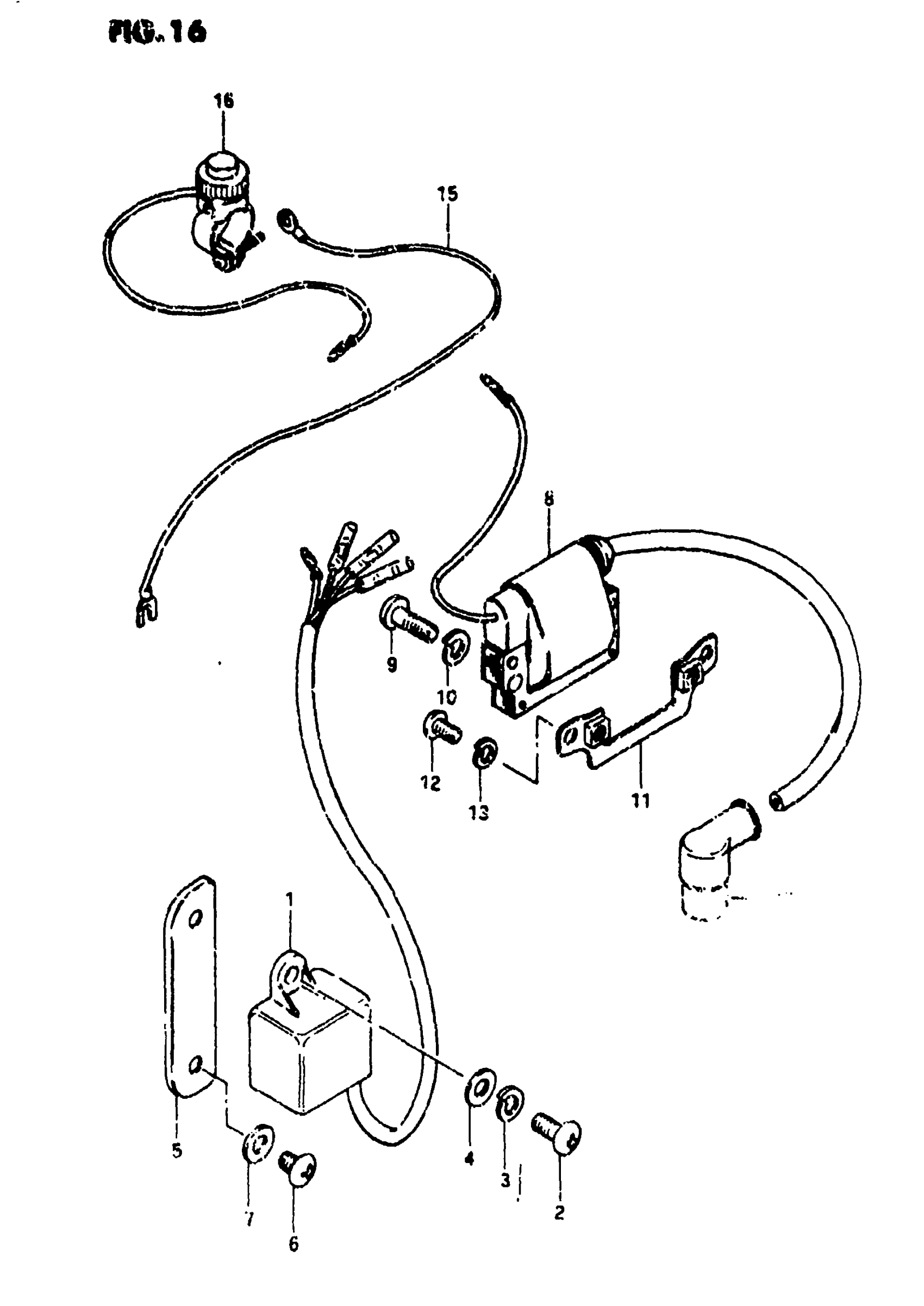

Suzuki RM60 (1981) CDI UNIT - IGNITION COIL (RM60X) Diagram

#

Description
Price

1

CDI UNIT ASSY

32900-46630

Unavailable

2

SCREW This part replaces 02112-06168.

02112-06167

$1.49

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

COVER

32931-46600

Unavailable

6

SCREW This part replaces 02112-06088.

02112-06087

$1.49

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

NO DESCRIPTION AVAILABLE This part replaces 33410-46130.

33410-23011

Unavailable

9

SCREW This part replaces 02112-06208.

02112-06207

$1.78

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

BRACKET

33416-46600

Unavailable

12

SCREW This part replaces 02112-05108.

02112-05107

$1.49

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

15

LEAD WIRE

36851-41200

Unavailable

16

SWITCH ASSY, ENGINE STOP This part replaces 37820-04430.

37820-14X50

$48.54
