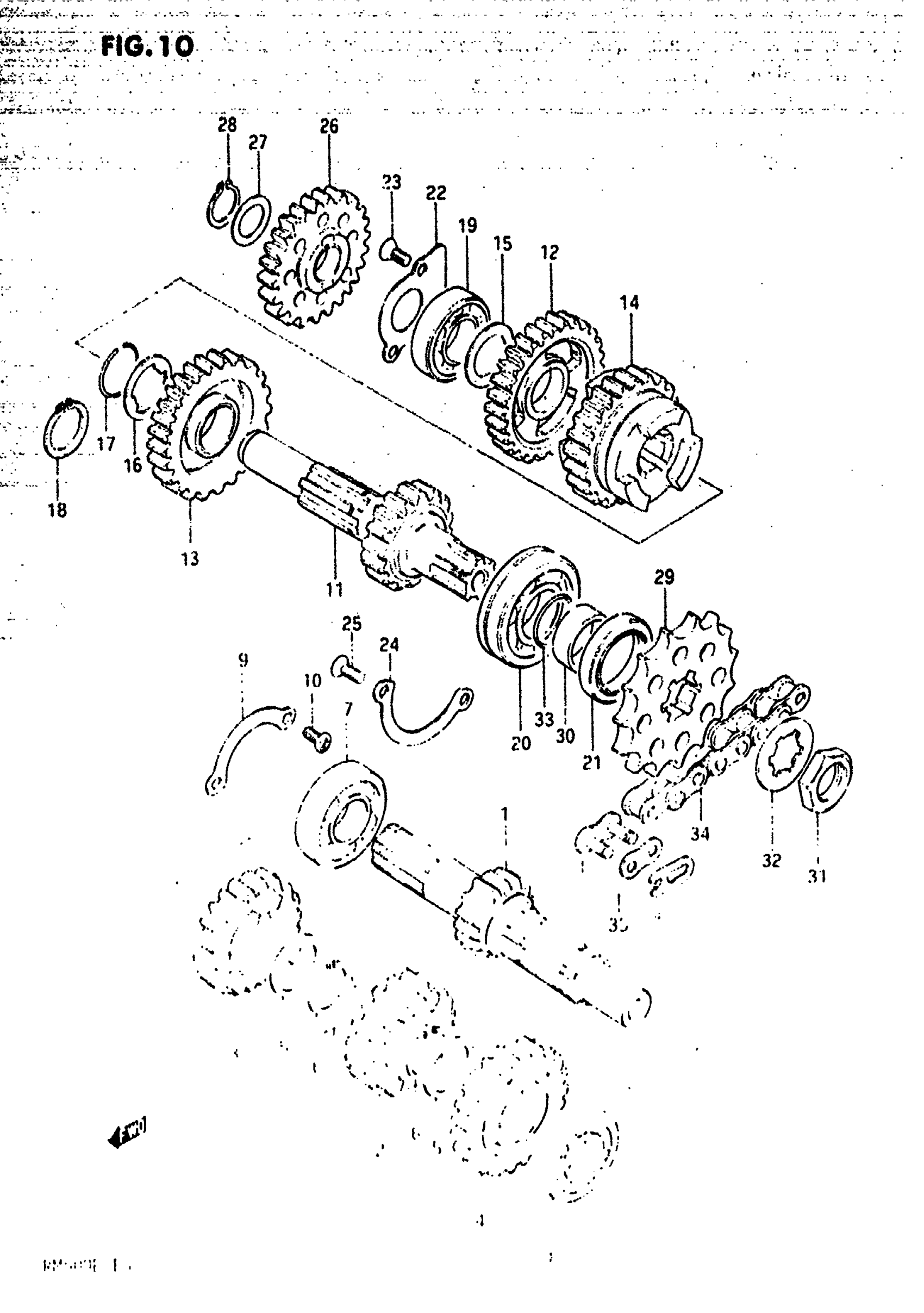

Suzuki RM500 (1984) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14)

24120-14230

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 24221-14230.

24221-14231

Unavailable

3

GEAR, 3RD DRIVE (NT:19)

24230-14230

Unavailable

4

GEAR, 4TH DRIVE (NT:22)

24241-14230

Unavailable

5

WASHER

08211-25301

$3.85

6

CIRCLIP

09380-25010

$2.91

7

BEARING, RH (22X56X16) This part replaces 09262-22012.

09262-22025

$57.67

8

BEARING (20X42X12) This part replaces 08113-60040.

09262-20106

$29.35

9

HOLDER, BEARING

24741-14210

Unavailable

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

DRIVESHAFT (4TH, NT:21) | MODEL D This part replaces 24130-14230.

24130-14231

Unavailable

11

DRIVESHAFT (4TH, NT:21) | MODEL E

24130-14231

Unavailable

12

GEAR, 1ST DRIVEN (NT:28)

24311-14230

Unavailable

13

GEAR, 2ND DRIVEN (NT:28)

24320-14231

Unavailable

14

GEAR, 3RD DRIVEN (NT:23)

24331-14231

Unavailable

15

WASHER, RH

08211-20363

$3.18

16

WASHER

09167-28004

Unavailable

17

CIRCLIP | MODEL D

09380-28004

Unavailable

18

CIRCLIP | MODEL E This part replaces 08331-11289.

08331-31289

$2.19

19

BEARING, RH

09264-20002

Unavailable

20

BEARING, LH

09262-28004

$37.72

21

OIL SEAL

09283-35023

Unavailable

22

HOLDER, BEARING RH | MODEL D This part replaces 24751-14211.

24751-14212

Unavailable

22

HOLDER, BEARING RH | MODEL E

24751-14212

Unavailable

23

SCREW This part replaces 02122-06128.

02122-06127

$1.84

24

HOLDER, BEARING LH

24752-14220

Unavailable

25

SCREW This part replaces 02122-06128.

02122-06127

$1.84

26

GEAR, KICK STARTER IDLE

26260-14201

Unavailable

27

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

$2.62

28

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

$2.03

29

SPROCKET, ENGINE (NT:14)

27511-14220

Unavailable

29

SPROCKET, ENGINE (NT:13) | OPT

27511-14230

Unavailable

29

SPROCKET, ENGINE (NT:15) | OPT

27511-14240

Unavailable

30

SPACER

09180-28003

Unavailable

31

NUT This part replaces 09140-28001.

09140-28003

$6.15

32

LOCK WASHER

09167-28003

Unavailable

33

O RING

09280-28004

$3.32

34

CHAIN,DRIVE ASS | Includes Item(s) 35 This part replaces 27600-14310.

27600-46K00-116

$167.95

35

JOINT (DID)

27620-14270

Unavailable

35

JOINT (RK) This part replaces 27620-14261.

27620-14262

Unavailable
