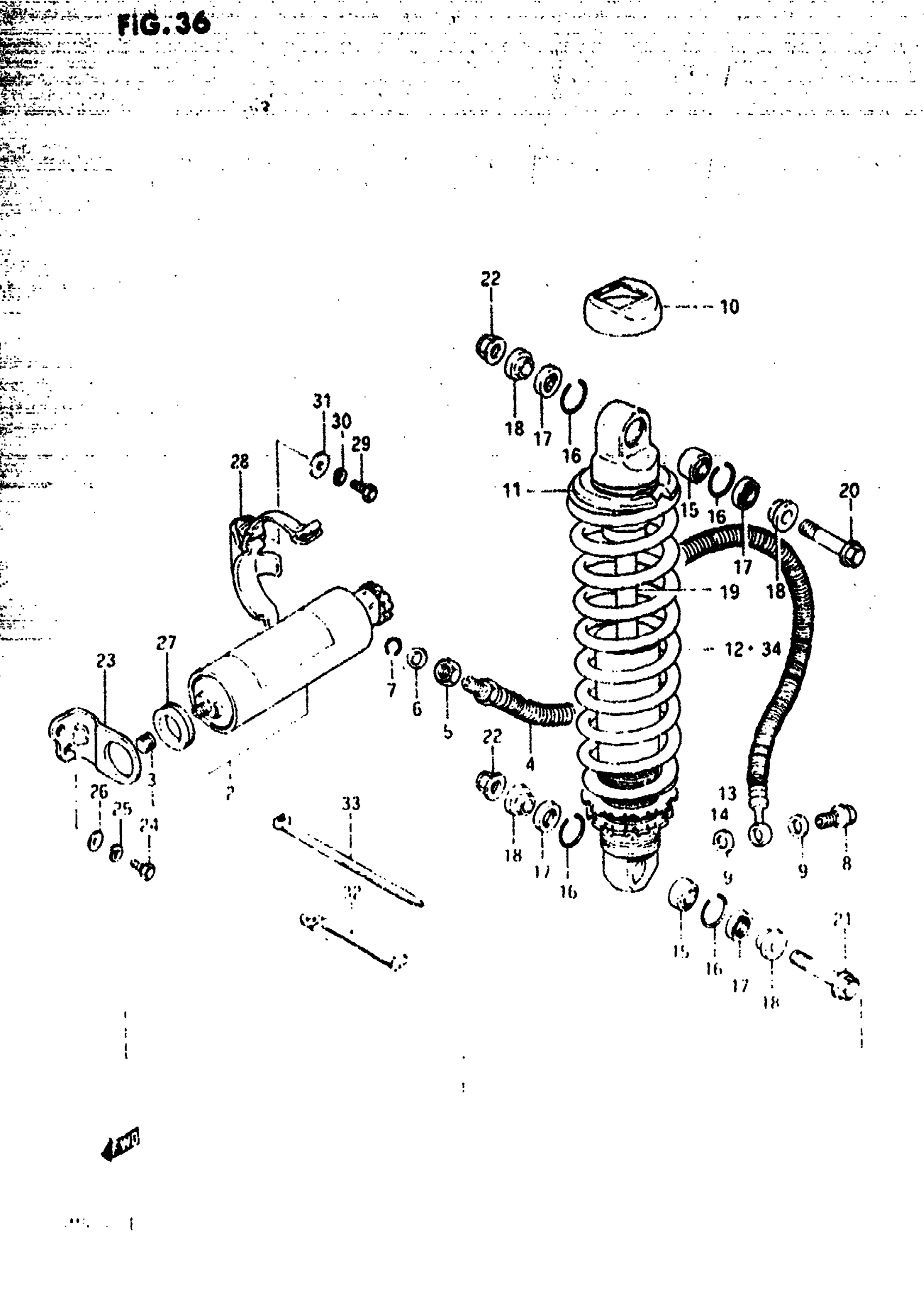

Suzuki RM500 (1984) SHOCK ABSORBER (MODEL E) Diagram

#

Description
Price

1

SHOCK ABSORBER, GEAR | Includes Item(s) 2 - 19

62100-14280

Unavailable

2

TANK

62270-14280

Unavailable

3

CAP

51294-20400

$7.37

4

HOSE

62280-14270

Unavailable

5

NUT, FIXED DRIVE FACE This part replaces 08310-22128.

09140-12039

$3.05

6

WASHER

62285-14100

Unavailable

7

O RING

62154-40200

Unavailable

8

BOLT

62281-14140

Unavailable

9

GASKET

51148-41310

$2.26

10

CAP

62179-14330

Unavailable

11

SPRING GUIDE

62194-14331

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 62211-14280.

62211-14290

Unavailable

13

SPRING GUIDE

62191-14600

Unavailable

14

NUT

62194-14600

Unavailable

15

BEARING, REAR (10x24x14.5) This part replaces 62175-43400.

62175-00B00

$61.15

16

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

17

DUST SEAL

62226-43410

Unavailable

18

COLLAR

62684-43401

$10.75

19

ROD, PISTON This part replaces 62120-14280.

62120-14610

Unavailable

20

BOLT (10X58) This part replaces 62311-14500.

09103-10428

$5.07

21

BOLT, LOWER

09103-10027

$4.60

22

NUT This part replaces 08319-31108.

08319-31107

$2.73

23

BRACKET, FRONT

62411-14200

Unavailable

24

BOLT This part replaces 01107-06128.

01500-06127

$1.97

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

WASHER This part replaces 08322-21068.

08322-01067

$2.13

27

CUSHION

62423-12411

Unavailable

28

BRACKET, REAR

62420-14231

Unavailable

29

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

31

WASHER This part replaces 09160-06007.

09160-06084

$1.78

32

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

33

CLAMP This part replaces 09407-16401.

09407-25402

$4.64

34

SPRING,SOFT | OPT

62211-14285

Unavailable

34

NO DESCRIPTION AVAILABLE | OPT This part replaces 62211-14287.

62211-14290

Unavailable
