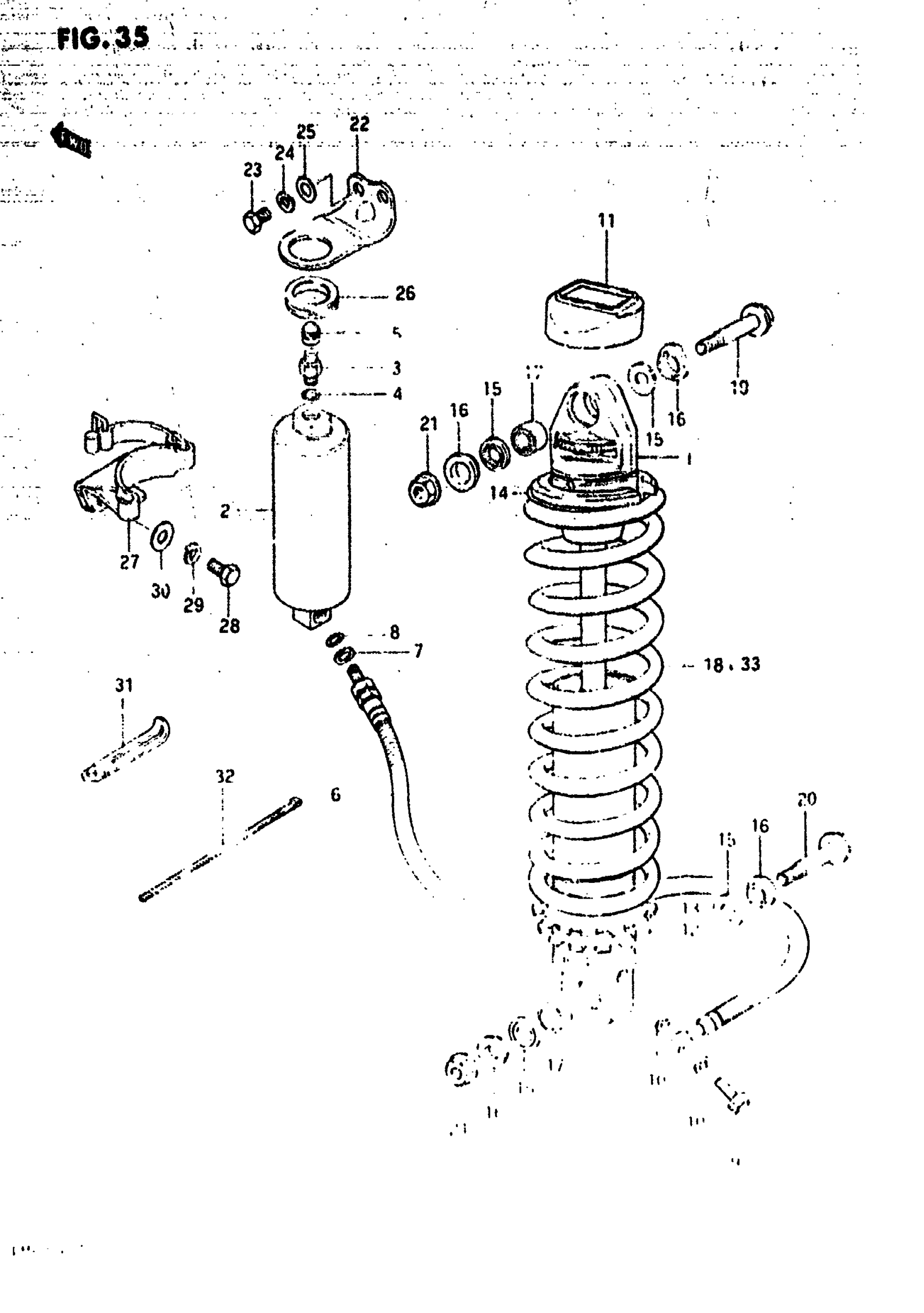

Suzuki RM500 (1984) SHOCK ABSORBER (MODEL D) Diagram

#

Description
Price

1

SHOCK ABSORBER, REAR | Includes Item(s) 2 - 18

62100-14270

Unavailable

2

TANK

62270-14270

Unavailable

3

VALVE

51293-49470

Unavailable

4

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

5

CAP

51294-20400

$7.37

6

HOSE

62280-14270

Unavailable

7

WASHER

62285-14100

Unavailable

8

O RING

62154-40200

Unavailable

9

BOLT

62281-14140

Unavailable

10

GASKET

51148-41310

$2.26

11

CAP

62179-14330

Unavailable

12

NUT

62191-14330

Unavailable

13

SPRING GUIDE

62225-14330

Unavailable

14

SPRING GUIDE

62194-14330

Unavailable

15

DUST SEAT

62226-14100

Unavailable

16

COLLAR

62177-14100

Unavailable

17

BEARING, REAR (10x24x14.5) This part replaces 09269-10001.

62175-00B00

$61.15

18

SPRING

62211-14330

Unavailable

19

BOLT,10X77 This part replaces 09103-10039.

09103-10247-XC0

$6.02

20

BOLT, LOWER (L:58)

09103-10040

$5.00

21

NUT This part replaces 08319-31108.

08319-31107

$2.73

22

BRACKET, FRONT

62411-14200

Unavailable

23

BOLT This part replaces 01107-06128.

01500-06127

$1.97

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

CUSHION

62423-14211

Unavailable

27

BRACKET, REAR This part replaces 62420-14230.

62420-14231

Unavailable

28

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

29

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

30

WASHER This part replaces 09160-06007.

09160-06084

$1.78

31

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

32

CLAMP This part replaces 09407-16401.

09407-25402

$4.64

33

SPRING (HARD) | OPT

62211-14335

Unavailable

33

SPRING (SOFT) | OPT

62211-14345

Unavailable
