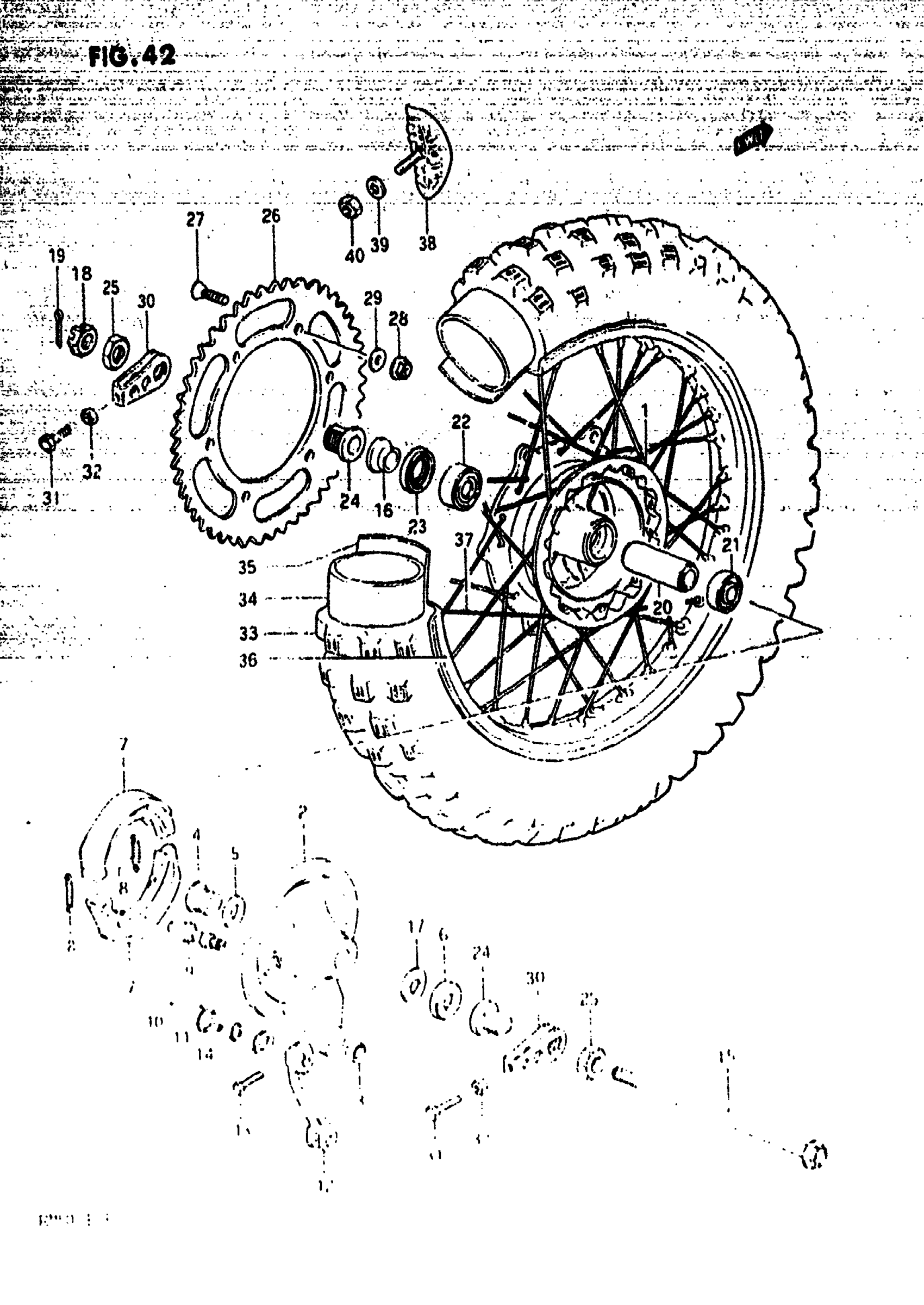

Suzuki RM500 (1984) REAR WHEEL (MODEL E) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-14240

Unavailable

2

PANEL, REAR HUB | Includes Item(s) 3

64200-14860

Unavailable

3

BEARING

64352-40401

Unavailable

4

SPACER, PANEL

64213-14600

Unavailable

5

SEAL,OIL (24X31X5)

09285-24001

$7.22

6

COVER, PANEL DUST SEAL

64845-37200

Unavailable

7

SHOE SET, BRAKE This part replaces 54410-14100.

64400-40810

$29.77

8

SPRING

64430-14600

$4.53

9

CAM, BRAKE

54441-14101

Unavailable

10

SPRING This part replaces 09448-30007.

09448-30007-XC0

Unavailable

11

DUST SEAL

09280-12001

$2.90

12

LEVER, BRAKE CAM This part replaces 64451-14240.

64451-14100

Unavailable

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

WASHER (12.5X20X1)

09160-12011

$1.54

15

AXLE, REAR

64711-14600

Unavailable

16

SPACER, AXLE LH

64751-14240

Unavailable

17

THRUST WASHER (T:1.0)

08211-17361

$2.83

18

NUT, HUB This part replaces 08314-41168.

08314-4016A

$3.79

19

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

20

SPACER, HUB BEARING

64730-14240

Unavailable

21

BEARING This part replaces 08123-62037.

08133-6203B

$17.61

22

BEARING, LH

09267-17001

Unavailable

23

OIL SEAL, LH

09284-25003

Unavailable

24

SPACER, CHAIN ADJUSTER

64781-40600

Unavailable

25

NUT

09140-24007

$3.89

26

SPROCKET, REAR (NT:46)

64511-14220

Unavailable

27

SCREW

09120-08009

$4.62

28

NUT This part replaces 08319-31088.

08319-3108A

$2.32

29

WASHER This part replaces 08322-11088.

08322-01087

$2.13

30

ADJUSTER, CHAIN

61410-40600

Unavailable

31

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

32

NUT This part replaces 08310-12088.

08310-00087

$2.13

33

TIRE (140/80-18) | IRC

65100-14300

Unavailable

34

TUBE, WHEEL INNER

65200-14600

Unavailable

35

PROTECTOR, INNER TUBE

65261-33030

$5.50

36

RIM, WHEEL (250x18)

65311-14240

Unavailable

37

SPOKE ASSY, REAR

65320-14230

Unavailable

38

STOPPER, BEAD

65270-40420

Unavailable

39

WASHER This part replaces 08322-11088.

08322-01087

$2.13

40

NUT This part replaces 08310-12088.

08310-00087

$2.13
