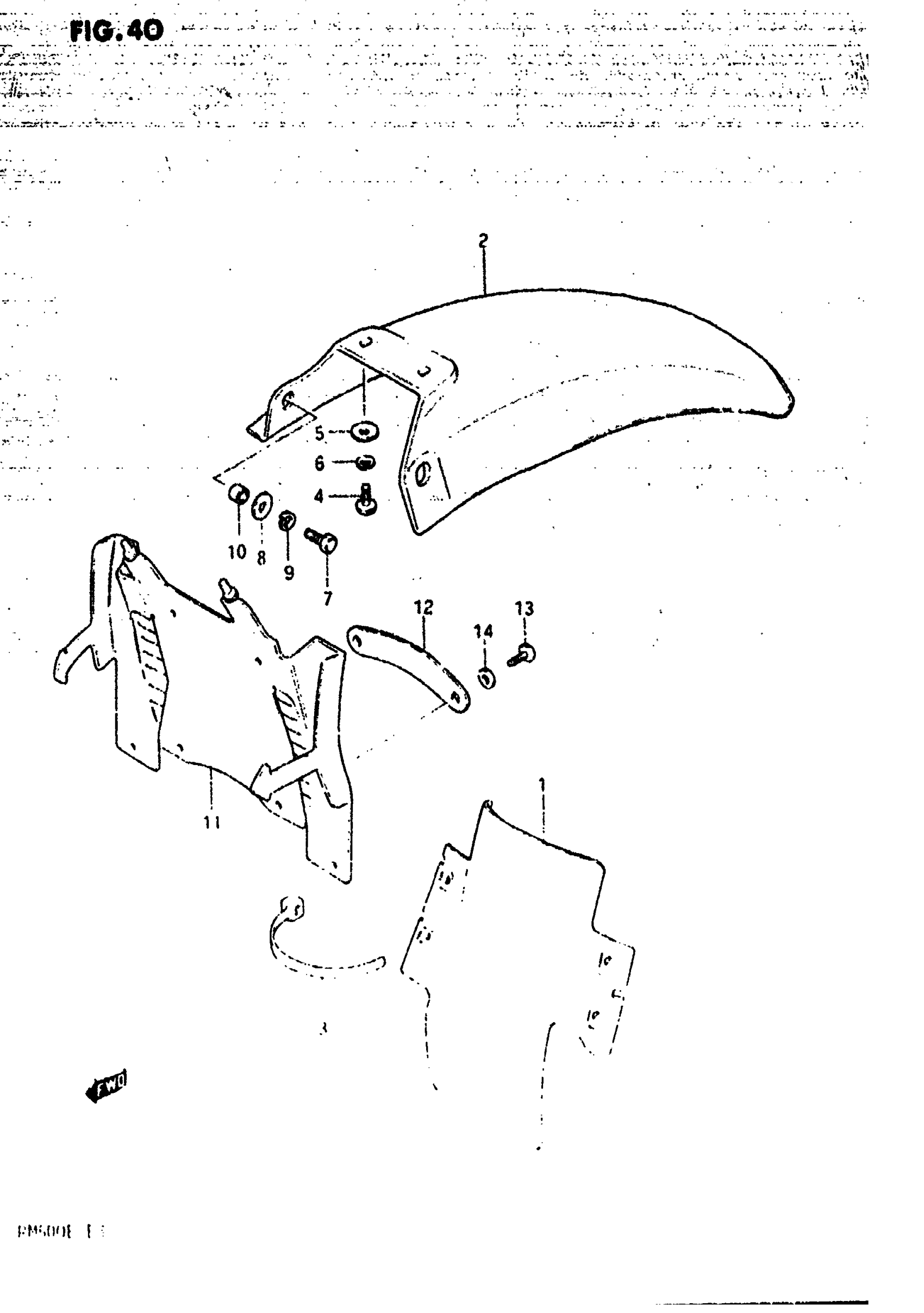

Suzuki RM500 (1984) REAR FENDER (MODEL E) Diagram

#

Description
Price

1

FRONT, FENDER REAR

63112-14200

Unavailable

2

FENDER,RR This part replaces 63113-14102-163.

63113-14103-163

Unavailable

3

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

4

SCREW, FRONT

02142-06167

$1.49

5

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

8

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

11

MUD GUARD, REAR FENDER

63331-14110

Unavailable

12

WASHER, MUD GUARD

63332-14600

Unavailable

13

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

14

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84
