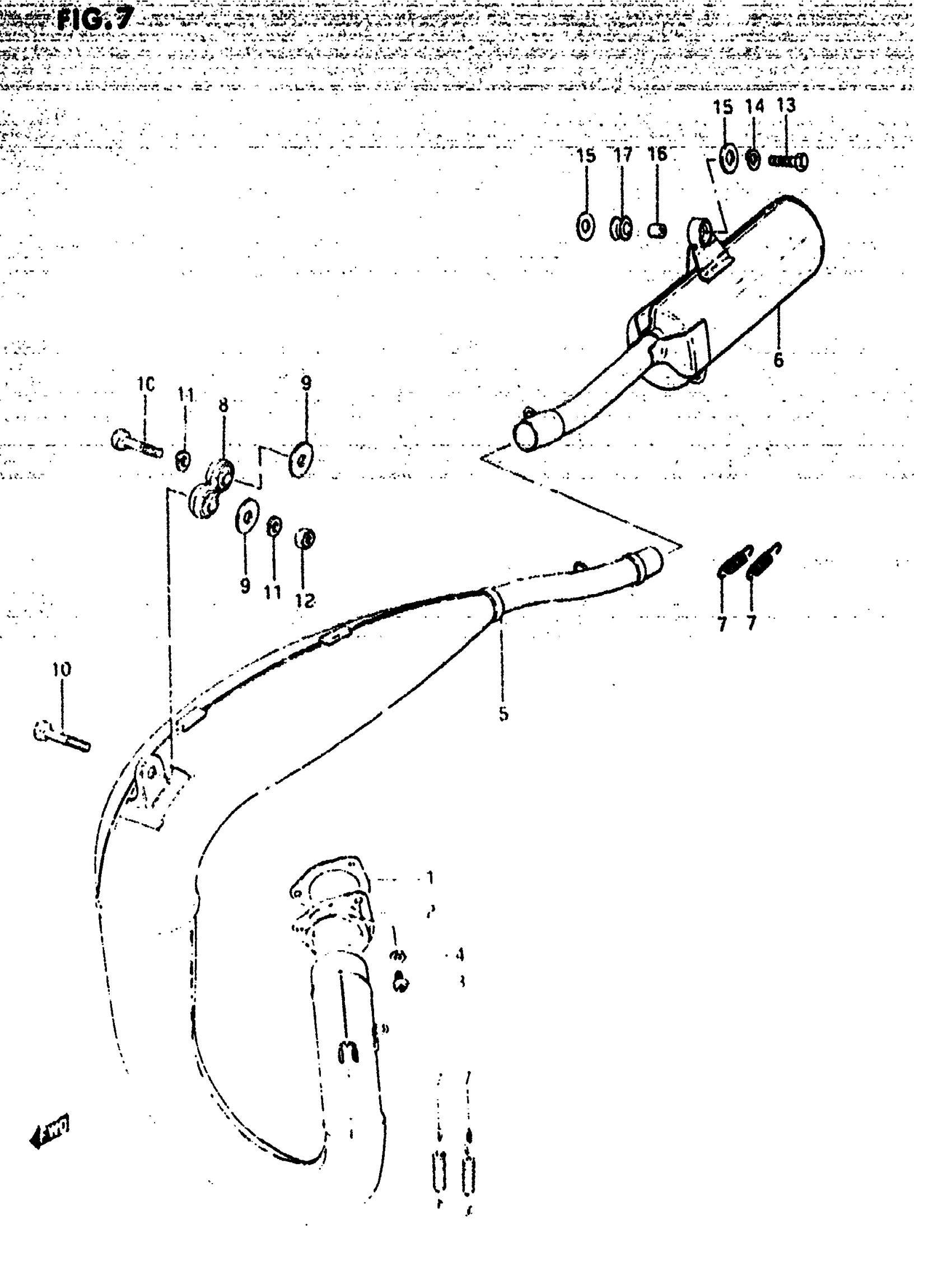

Suzuki RM500 (1984) MUFFLER (MODEL D) Diagram

#

Description
Price

1

GASKET,EXH FLNG This part replaces 14181-41200.

14181-41201-H17

Unavailable

2

FLANGE, EXHAUST PIPE This part replaces 14170-40401.

14170-40403

Unavailable

3

SCREW This part replaces 02112-06165.

02112-0616A

$1.49

4

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

5

NO DESCRIPTION AVAILABLE This part replaces 14310-14241.

14310-14262

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 14330-14241.

14330-14270

Unavailable

7

SPRING This part replaces 09443-12024.

09443-12024-XC0

Unavailable

8

DAMPER, MUFFLER

14770-40000

Unavailable

9

WASHER This part replaces 09160-08035.

09160-08130

$2.03

10

BOLT

09100-08176

$2.45

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

NUT This part replaces 08310-22088.

08310-00087

$2.13

13

BOLT

09100-08176

$2.45

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

16

SPACER This part replaces 09180-08102.

09180-08194

$3.05

17

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98
