Partiron

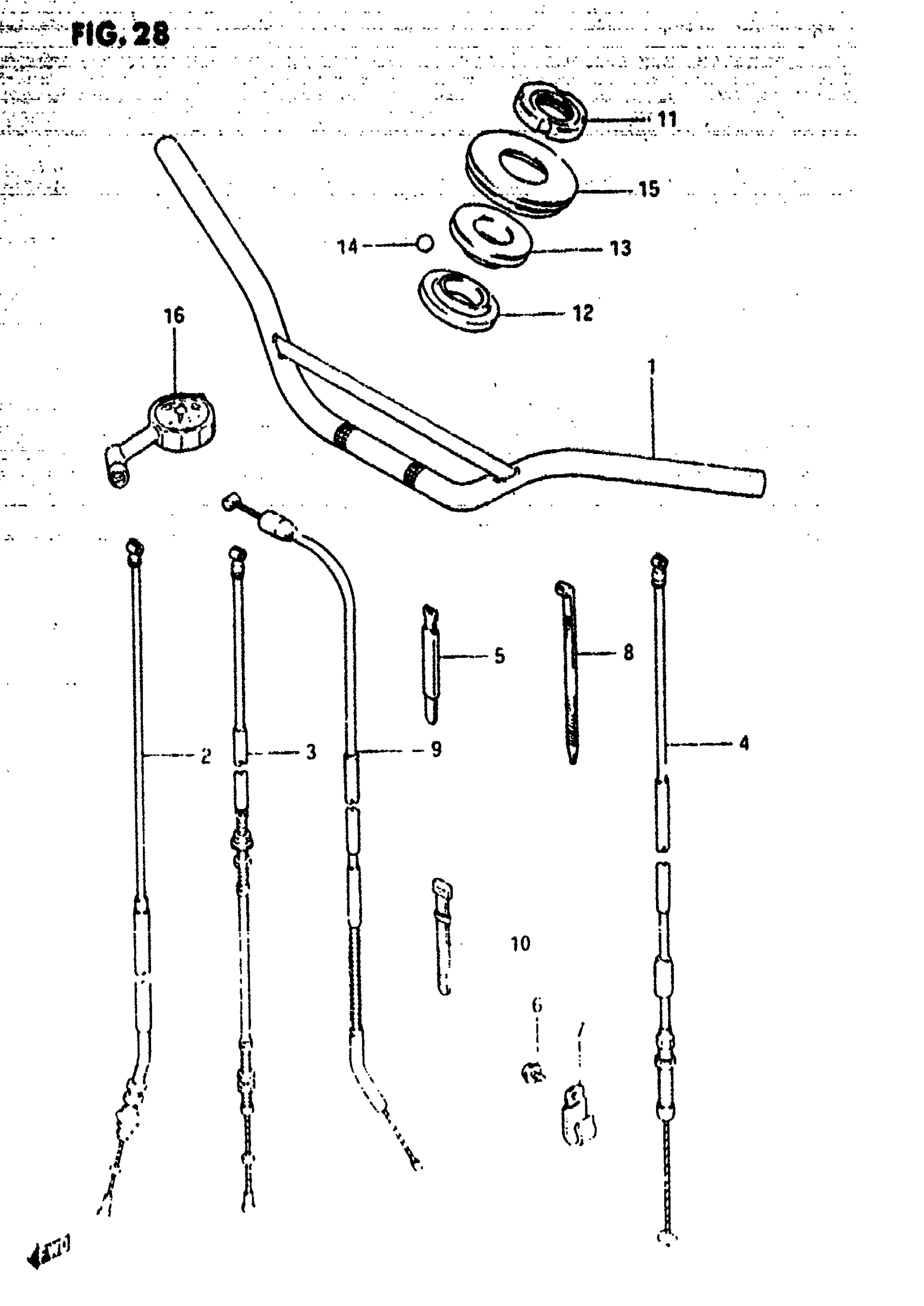

Suzuki RM500 (1984) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL D This part replaces 56110-14101-291.

56110-14211-291

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 56110-14101-19T.

56110-14400-19T

Unavailable

2

CABLE ASSY, FRONT BRAKE | MODEL D

58100-14310

Unavailable

3

CABLE ASSY, FRONT BRAKE | MODEL E

58110-14501

Unavailable

4

CABLE ASSY, CLUTCH | MODEL D This part replaces 58200-14212.

58200-14213

Unavailable

4

CABLE ASSY, CLUTCH | MODEL E

58200-14213

Unavailable

5

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

6

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49

7

CLAMP This part replaces 09403-09301.

09404-06037

Unavailable

8

CLAMP This part replaces 09407-20401.

09407-25402

$4.64

9

CABLE, THROTTLE This part replaces 58300-14310.

58300-14X08

Unavailable

10

CLAMP

09407-18401

$2.07

11

NUT, STEERING STEM

51631-40200

Unavailable

12

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

13

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

14

STEEL BALL

06111-08003

$1.49

15

DUST SEAL, UPPER

51643-40200

$7.96

16

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
