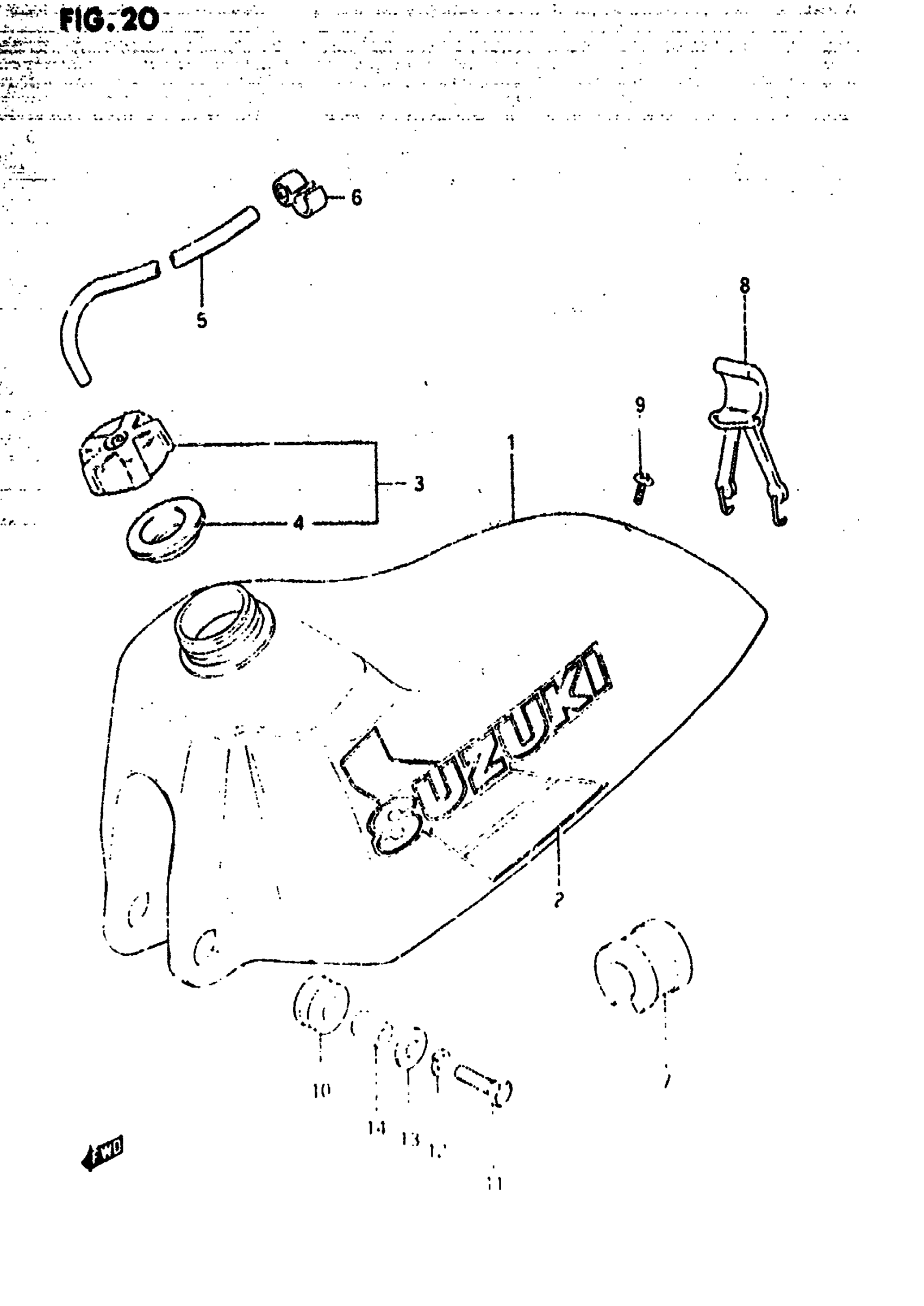

Suzuki RM500 (1984) FUEL TANK (MODEL E) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 4

44101-14860-163

Unavailable

2

TAPE SET

68110-14240-82M

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-14820.

44200-27871

$22.96

4

GASKET This part replaces 44248-40400.

44248-05211

$3.76

5

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

6

CLAMP

44486-40200

$4.88

7

CUSHION

44541-14101

Unavailable

8

BAND, REAR This part replaces 44560-14102.

44560-02B00

Unavailable

9

SCREW This part replaces 09125-06009.

09125-06073

$1.84

10

CUSHION

09320-12030

$2.53

11

BOLT This part replaces 01107-08308.

01500-08307

$3.04

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER 6.5x26x1.2 This part replaces 09160-08064.

09160-08032

$2.30

14

SPACER This part replaces 09180-08003.

09180-08191

$2.53
