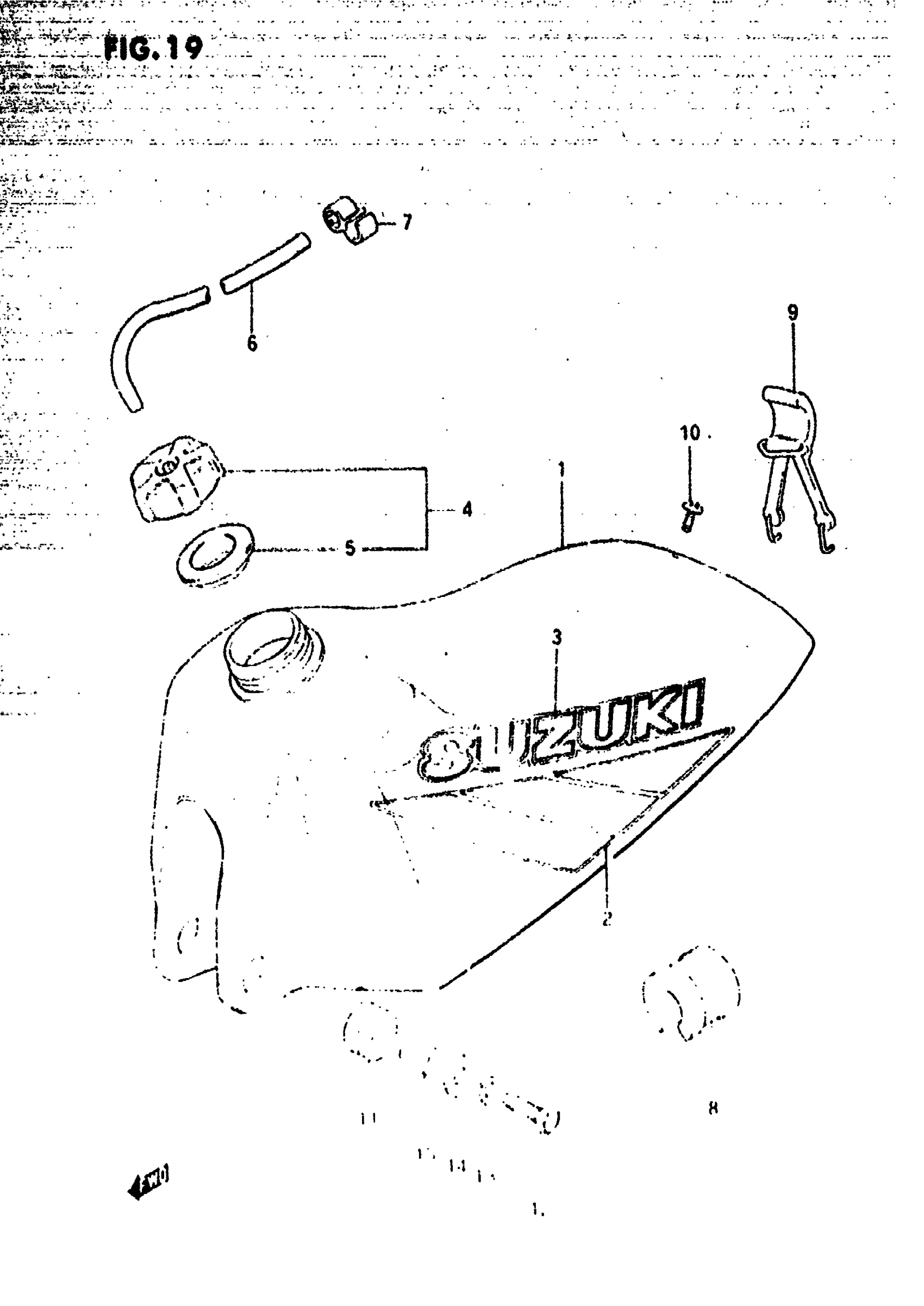

Suzuki RM500 (1984) FUEL TANK (MODEL D) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44101-14830-163

Unavailable

2

TAPE SET

68110-14230-74H

Unavailable

3

EMBLEM

68111-40210-64D

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-40820.

44200-40822

$14.76

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

CLAMP

44486-40200

$4.88

8

CUSHION

44541-14101

Unavailable

9

BAND, REAR This part replaces 44560-14102.

44560-02B00

Unavailable

10

SCREW This part replaces 09125-06009.

09125-06073

$1.84

11

CUSHION

09320-12030

$2.53

12

BOLT This part replaces 01107-08308.

01500-08307

$3.04

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER This part replaces 09160-08035.

09160-08130

$2.03

15

SPACER This part replaces 09180-08003.

09180-08191

$2.53
