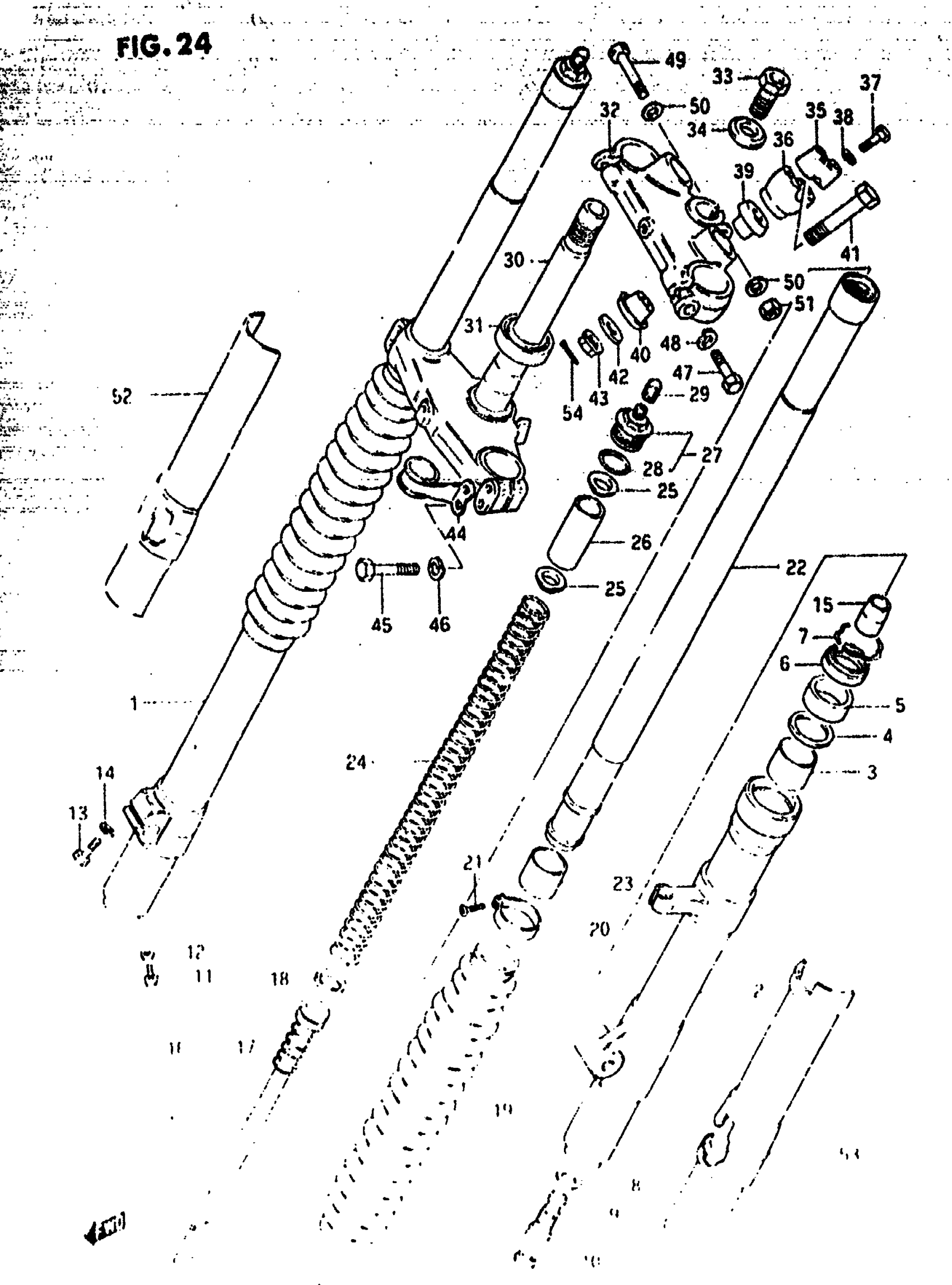

Suzuki RM500 (1984) FRONT FORK (MODEL E) Diagram

#

Description
Price

0

FRONT FORK ASSY (BLUE) | Includes Item(s) 1 - 52

51100-14280-19F

Unavailable

1

OUTER TUBE, RH

51130-14500

Unavailable

2

OUTER TUBE, LH

51140-14500

Unavailable

3

METAL, SLIDE This part replaces 51167-14200.

51167-40C00

$16.13

4

WASHER

51158-14200

$5.05

5

OIL SEAL

51153-14330

$13.63

6

DUST SEAL

51173-14330

$10.53

7

RING, STOPPER

51156-14200

$5.05

8

GASKET

51148-14330

Unavailable

9

VALVE

51770-14500

Unavailable

10

CAP

51189-14500

Unavailable

11

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

12

GASKET

51183-03010

$2.07

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

PIECE, OIL LOCK

51195-14330

Unavailable

16

CYLINDER

51146-14280

Unavailable

17

SPRING

51177-14280

Unavailable

18

RING

51196-14280

Unavailable

19

BOOT This part replaces 51571-14500-19F.

51571-14500-38K

Unavailable

20

BAND

51575-14500

Unavailable

21

SCREW This part replaces 02112-04108.

02112-04107

$1.55

22

INNER TUBE

51110-14280

Unavailable

23

PISTON

51121-14200

Unavailable

24

SPRING

51171-14280

Unavailable

25

GUIDE, SPRING

51172-14280

Unavailable

26

SPRING

51176-14280

Unavailable

27

CAP

51351-14500

Unavailable

28

.O RING This part replaces 51117-14200.

51117-14201

$2.47

29

CAP, VALVE

51294-20400

$7.37

30

STEM, STEERING

51410-14500

Unavailable

31

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

32

STEM HEAD. STEERING

51311-14600

Unavailable

33

BOLT

51351-41320

Unavailable

34

WASHER

51356-41310

Unavailable

35

HOLDER, HANDLE UPPER

56211-27100

$15.23

36

HOLDER, HANDLE LOWER

56221-23450

Unavailable

37

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

38

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

39

RUBBER, UPPER

56241-14200

$44.53

40

RUBBER, LOWER

56242-14200

$36.08

41

BOLT This part replaces 51321-14200.

56321-28C00

$8.28

42

WASHER This part replaces 51356-40400.

09160-10035

$1.78

43

NUT This part replaces 08319-31108.

08319-31107

$2.73

44

CLIP This part replaces 58621-14500.

58621-14520

Unavailable

45

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

46

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

47

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

48

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

49

BOLT This part replaces 01107-08508.

01500-08507

$3.05

50

WASHER This part replaces 08322-11088.

08322-01087

$2.13

51

NUT This part replaces 08310-12088.

08310-00087

$2.13

52

PROTECTOR, RH (YELLOW)

51201-14500-163

Unavailable

53

PROTECTOR, LH (YELLOW) This part replaces 51202-14500-163.

51202-14501-163

Unavailable

54

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
