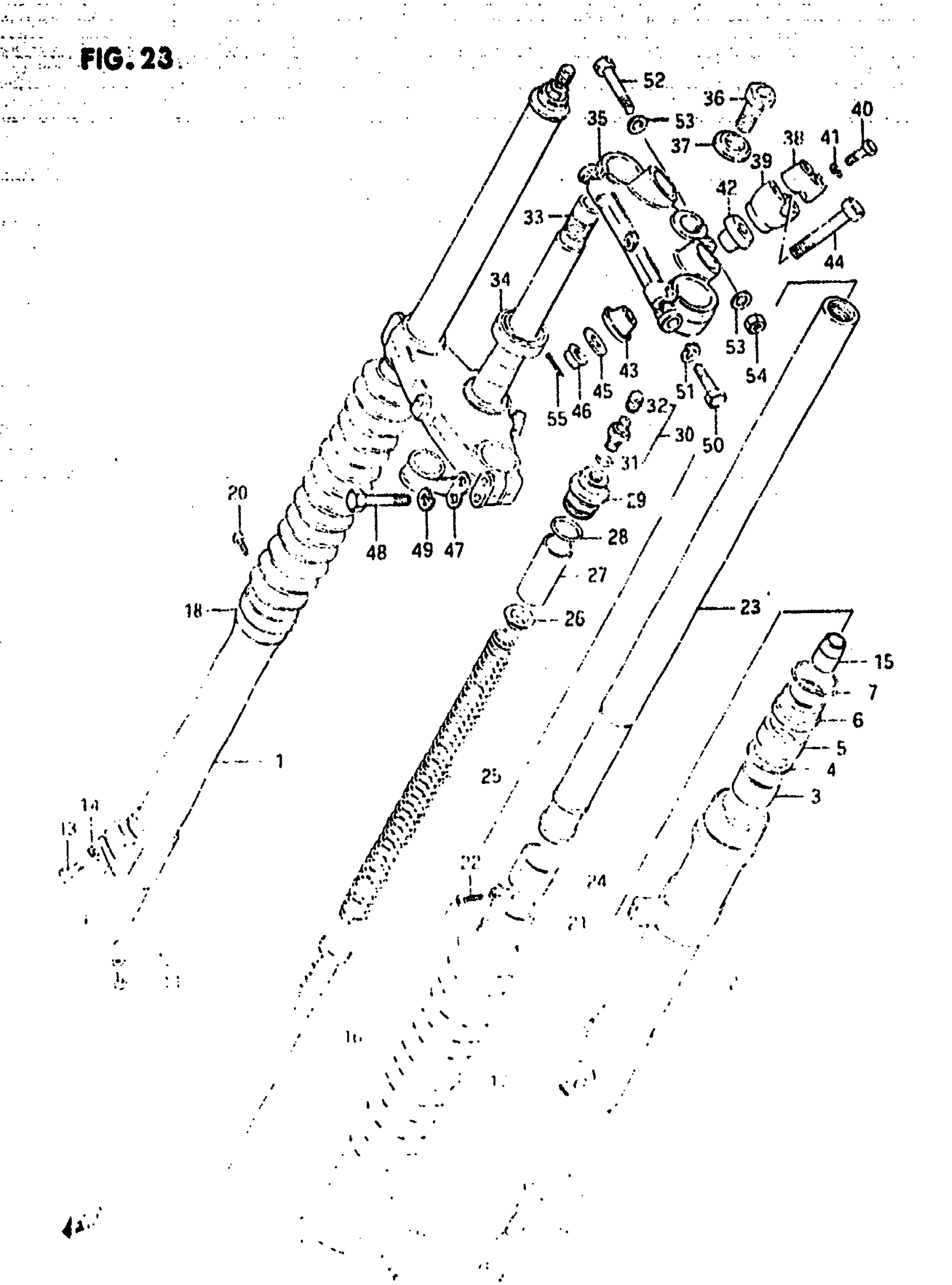

Suzuki RM500 (1984) FRONT FORK (MODEL D) Diagram

#

Description
Price

0

FRONT FORK ASSY (YELLOW) | Includes Item(s) 1 - 54

51100-14330-163

Unavailable

1

OUTER TUBE, RH (YELLOW)

51130-14330-163

Unavailable

2

OUTER TUBE, LH (YELLOW)

51140-14330-163

Unavailable

3

METAL, SLIDE This part replaces 51167-14200.

51167-40C00

$16.13

4

WASHER

51158-14200

$5.05

5

OIL SEAL

51153-14330

$13.63

6

DUST SEAL

51173-14330

$10.53

7

RING, STOPPER

51156-14200

$5.05

8

GASKET

51148-14330

Unavailable

9

VALVE

51770-14330

Unavailable

10

CAP

51189-14330

Unavailable

11

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

12

GASKET

51183-03010

$2.07

13

BOLT This part replaces 01107-08308.

01500-08307

$3.04

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

PIECE, OIL LOCK

51195-14330

Unavailable

16

CYLINDER

51146-14330

Unavailable

17

BOOT

51571-14200

Unavailable

18

BAND This part replaces 51575-14330.

51574-14330

Unavailable

19

BAND

51574-14330

Unavailable

20

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

21

BAND

51575-14200

Unavailable

22

SCREW This part replaces 02112-04108.

02112-04107

$1.55

23

INNER TUBE

51110-14330

Unavailable

24

PISTON

51121-14200

Unavailable

25

SPRING

51171-14330

Unavailable

26

GUIDE, SPRING

51172-14200

Unavailable

27

SPACER

51176-14260

Unavailable

28

.O RING This part replaces 51117-14200.

51117-14201

$2.47

29

CAP

51351-14330

Unavailable

30

VALVE, AIR

51169-14140

Unavailable

31

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

32

CAP

51294-40400

$8.12

33

STEM, STEERING (BLACK)

51410-14330-291

Unavailable

34

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

35

STEM HEAD, STEERING (BLACK)

51311-14330-291

Unavailable

36

BOLT

51351-41320

Unavailable

37

WASHER

51356-41310

Unavailable

38

HOLDER, HANDLE UPPER (BLACK)

56211-27200-291

$17.90

39

HOLDER, HANDLE LOWER (BLACK)

56221-14330-291

$53.33

40

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

41

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

42

RUBBER, UPPER

56241-14200

$44.53

43

RUBBER, LOWER

56242-14200

$36.08

44

BOLT This part replaces 51321-14200.

56321-28C00

$8.28

45

WASHER This part replaces 51356-40400.

09160-10035

$1.78

46

NUT This part replaces 08319-21108.

09159-10027

$3.10

47

CLIP

58621-14200

Unavailable

48

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

49

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

50

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

51

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

52

BOLT This part replaces 01107-08508.

01500-08507

$3.05

53

WASHER This part replaces 08322-21088.

08322-01087

$2.13

54

NUT This part replaces 08310-12088.

08310-00087

$2.13

55

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
