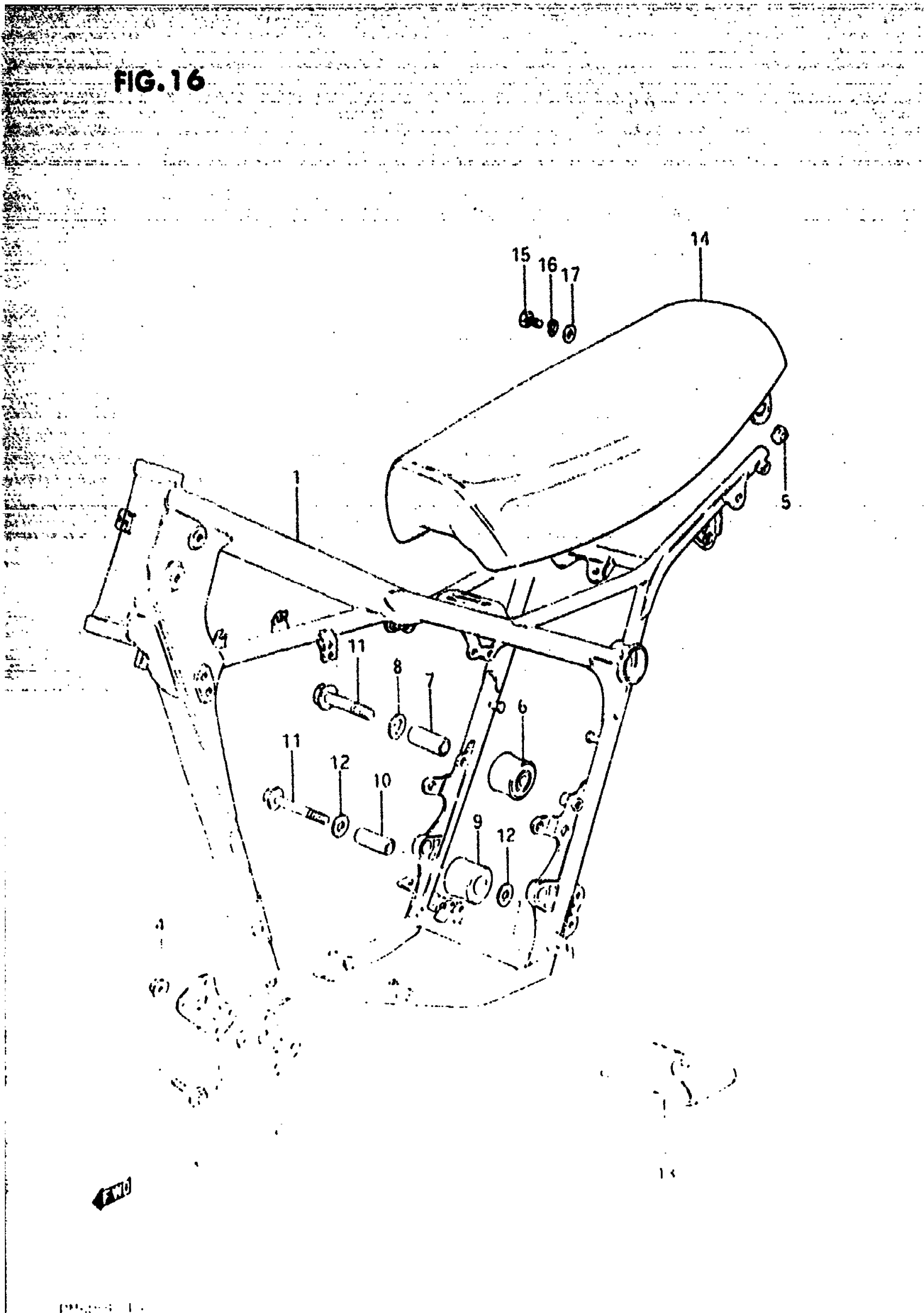

Suzuki RM500 (1984) FRAME - SEAT (MODEL E) Diagram

#

Description
Price

1

FRAME (BLUE)

41100-14240-19F

Unavailable

2

PLATE, ENGING MOUNTING

41991-14201

Unavailable

3

BOLT

09103-08063

Unavailable

4

NUT This part replaces 08319-31088.

08319-3108A

$2.32

5

PLUG

09250-14006

$1.99

6

ROLLER, CHAIN CONTROL UPPER This part replaces 43910-14500.

43910-01B00

Unavailable

7

SPACER, CHAIN ROLLER UPPER

43913-40400

Unavailable

8

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

9

ROLLER, CHAIN LOWER

43911-14200

Unavailable

10

SPACER This part replaces 09180-08119.

09180-08156

$6.70

11

BOLT, LOWER

09103-08043

$3.18

12

WASHER This part replaces 09160-08035.

09160-08130

$2.03

13

TOOL SET

09800-00233

Unavailable

14

SEAT (BLUE)

45100-14140-54G

Unavailable

15

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER This part replaces 09160-08065.

09160-08126

$2.44
