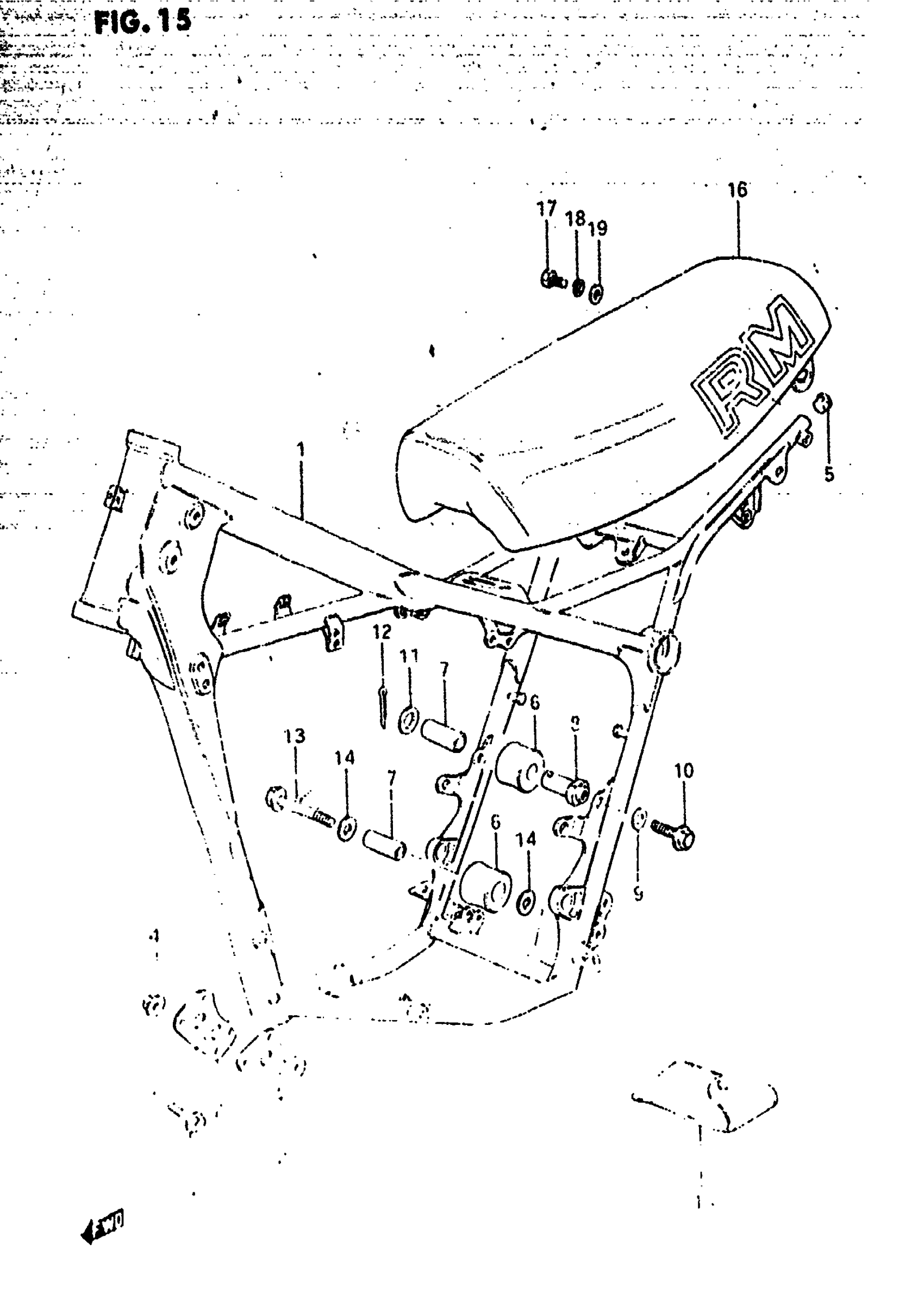

Suzuki RM500 (1984) FRAME - SEAT (MODEL D) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-14231-019

Unavailable

2

PLATE, ENGINE MOUNTING

41991-14201

Unavailable

3

BOLT

09103-08063

Unavailable

4

NUT This part replaces 08319-31068.

08319-31067

$2.03

5

PLUG

09250-14006

$1.99

6

ROLLER, CHAIN CONTROL

43911-14200

Unavailable

7

SPACER, CHAIN ROLLER

43913-40400

Unavailable

8

BOSS, CHAIN ROLLER This part replaces 43915-14300.

43915-14301

Unavailable

9

WASHER This part replaces 09160-06007.

09160-06084

$1.78

10

BOLT This part replaces 01517-06168.

01550-06167

$2.30

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

13

BOLT, LOWER

09103-08043

$3.18

14

WASHER This part replaces 09160-08035.

09160-08130

$2.03

15

TOOL SET

09800-00233

Unavailable

16

SEAT (BLUE)

45100-14130-49R

Unavailable

17

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER This part replaces 09160-08065.

09160-08126

$2.44
